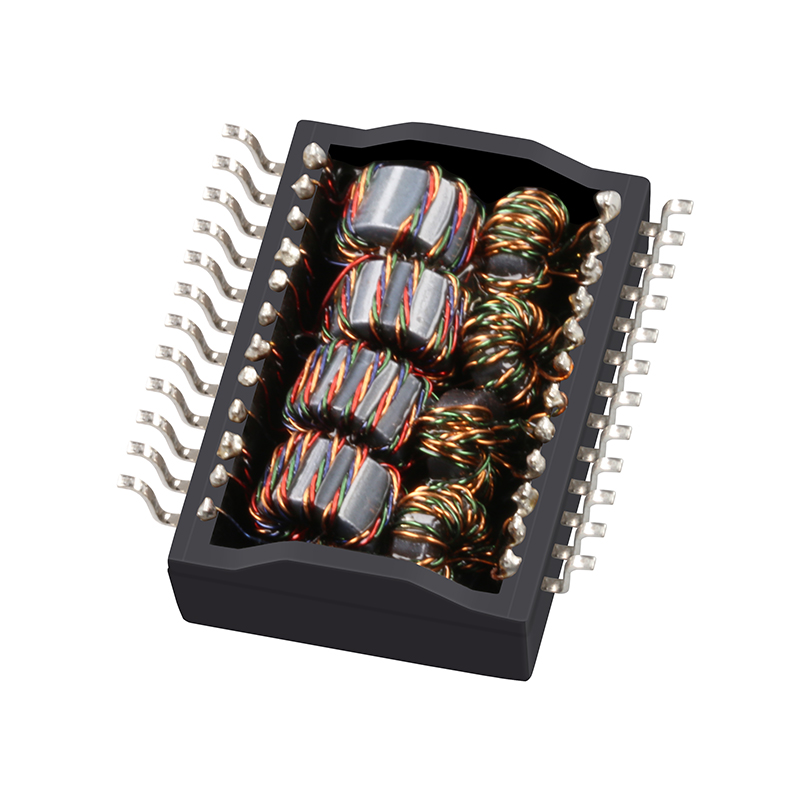

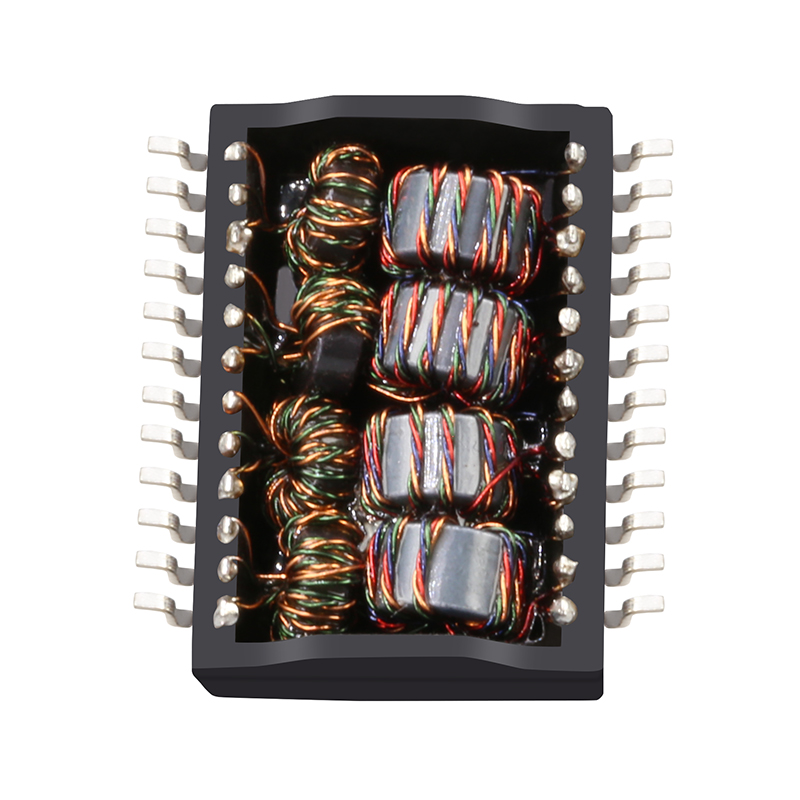

In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
1 / 5
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL
In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

In Stocks 1000 Base-T Single Port PoE+ 24 Pin Ethernet Lan Transformer Modules TG1G-S012NZRL

Send Inquiry

Product Description

Product Overview

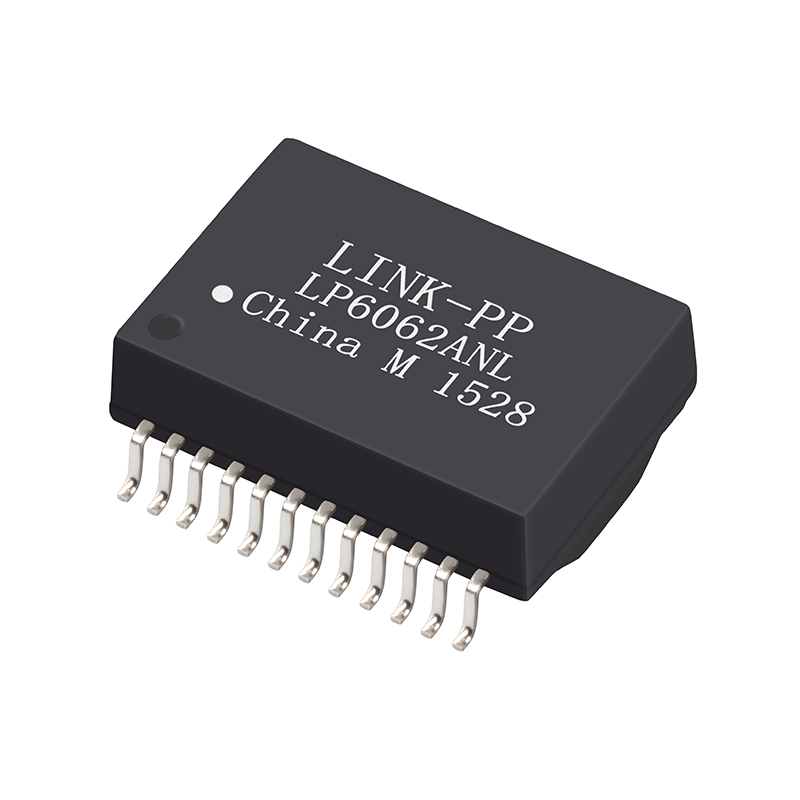

Detail View 1
Detail View 2

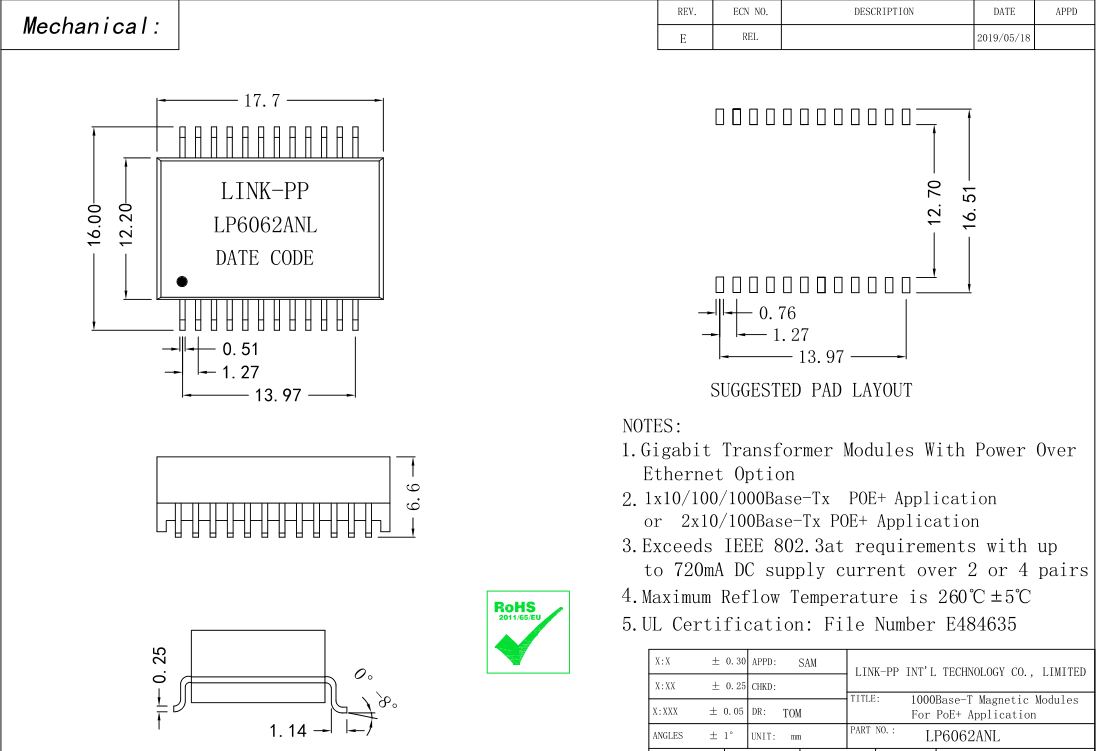

Detail View 3
Technical Specifications
◈ Product Specifications
Place of OriginChina
Part NumberLP6062ANL
Halo Cross ReferenceTG1G-S012NZRL
Transformer TypeLan Transformer
ApplicationEthernet (PoE+)
Number of PortsSingle Port
Speed10/100/1000 Base-T
Package TypeTape & Reel
Cores per Port8 Cores
PIN number24 Pin
Mounting TypeSurface Mount (SMT)
Temperature Range-40℃ TO +85℃
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT, C, S
Packaging Info
📦 Packaging Information
N.W/pcs:   0.004kg
Package:   Reel
SPQ:   400pcs
Qty/carton:   1600pcs
Carton size:   37*37*25cm
G.W/carton:   5.8kg
Product Image 1
Product Image 2
Product Image 3
Product Image 4
Product Image 5
Product Image 6
Product Image 7
Frequently Asked Questions
What is the main application for the LP6062ANL transformer?
The LP6062ANL is specifically designed for Ethernet (PoE+) applications, supporting 10/100/1000 Base-T speeds.
Is this part compatible with Halo TG1G-S012NZRL?
Yes, the LP6062ANL serves as a direct cross-reference and equivalent to the Halo TG1G-S012NZRL part number.
What is the operating temperature range for this LAN transformer?
It is designed for industrial use with an operating temperature range of -40℃ to +85℃.
How is the product packaged for shipping?
The product is supplied in Tape & Reel format, with 400 pieces per reel and 1600 pieces per standard carton.
What are the mounting specifications?
The LP6062ANL features a surface mount (SMT) design with a 24-pin configuration for easy PCB integration.
Does this component support PoE+?
Yes, it is specifically configured to support Power over Ethernet (PoE+) requirements.
