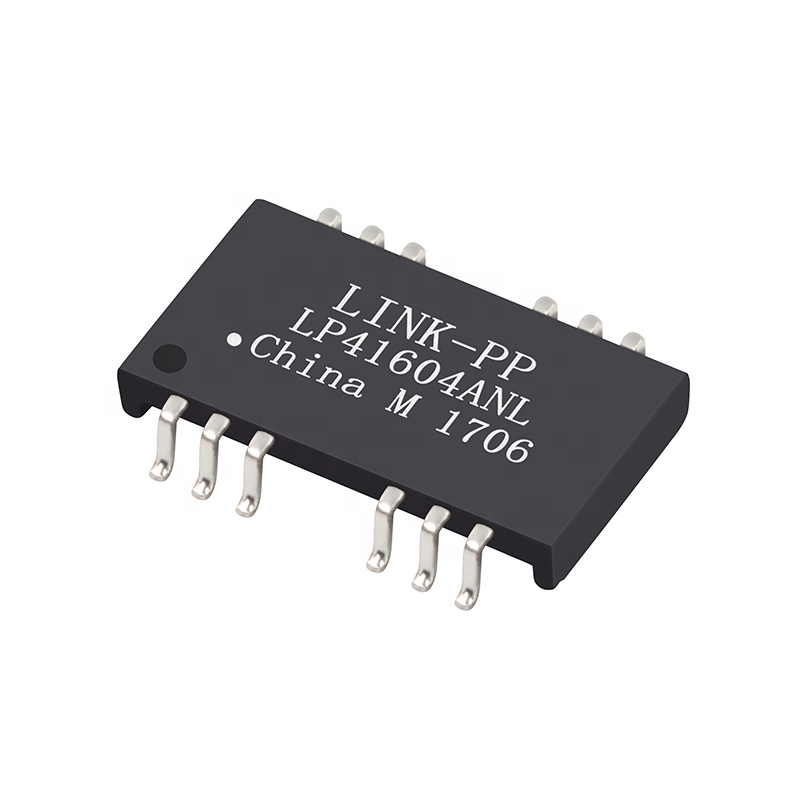

| Item | Lan Transformer |
| Replaceable Brand Model | NS0013BLF |
| Part Status | Active |
| Construction | Open frame |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Single / Dual / Quad |
| Speed | 10 / 100 / 1000 Base-t |
| Cores per Port | 4 / 8 / 12 |
| Pin Number | 10 Pin / 12 Pin / 24 Pin / 48 Pin |
| Mounting Type | Dip / Smt |
| Temperature | 0℃ To 70℃ / -40℃ To 85℃ |
| AutomDX | YES |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C,S |
| Package | Tape & Reel |
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have a large dedicated staff and abundant productive capacity of 3000K per month, enabling us to deliver goods within a short time. Moreover, we provide professional complete solutions for magnetic components and strong technical support.
Main Products: 10/100/1000M LAN pulse transformer and filter; RJ45 connector with 10/100/1000M magnetic; T1/E1, T3/DS3/E3/STS-1 interface line transformer; ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our products to more than 30 countries and regions worldwide.
Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for unique requirements. We trust that our strength in the field and our faith in pursuing excellence will make us long-term partners.
