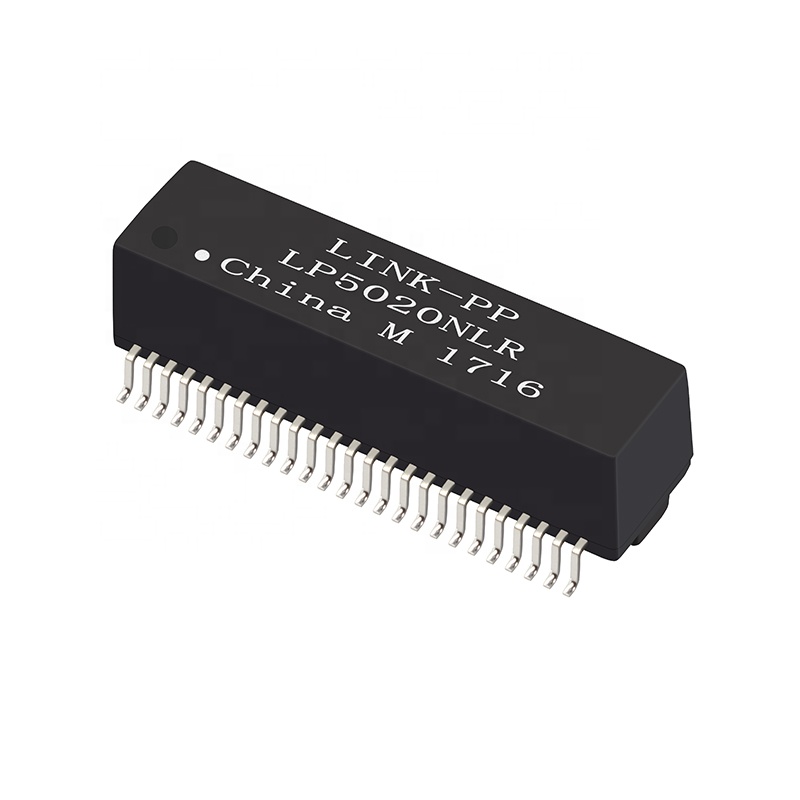

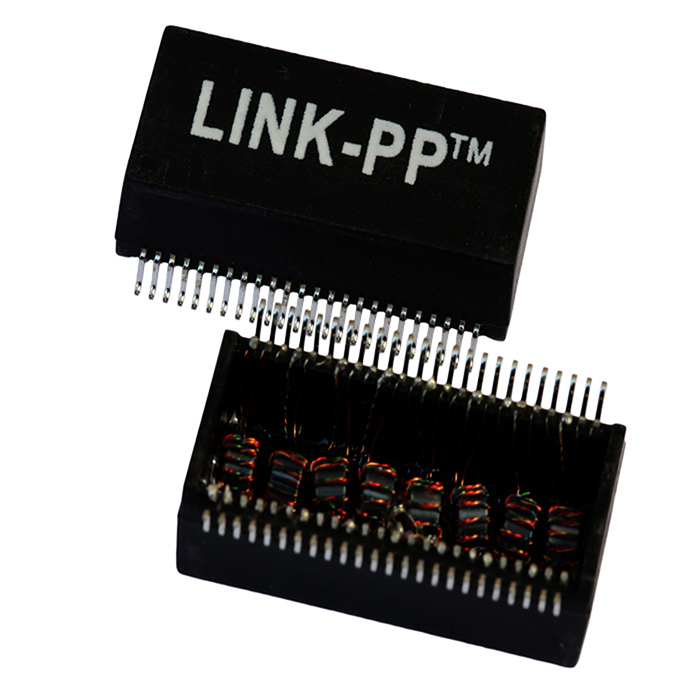

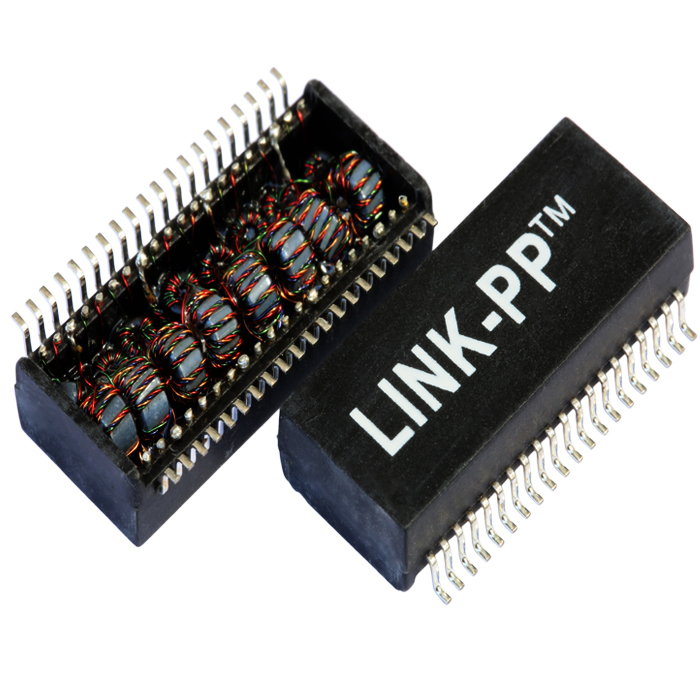

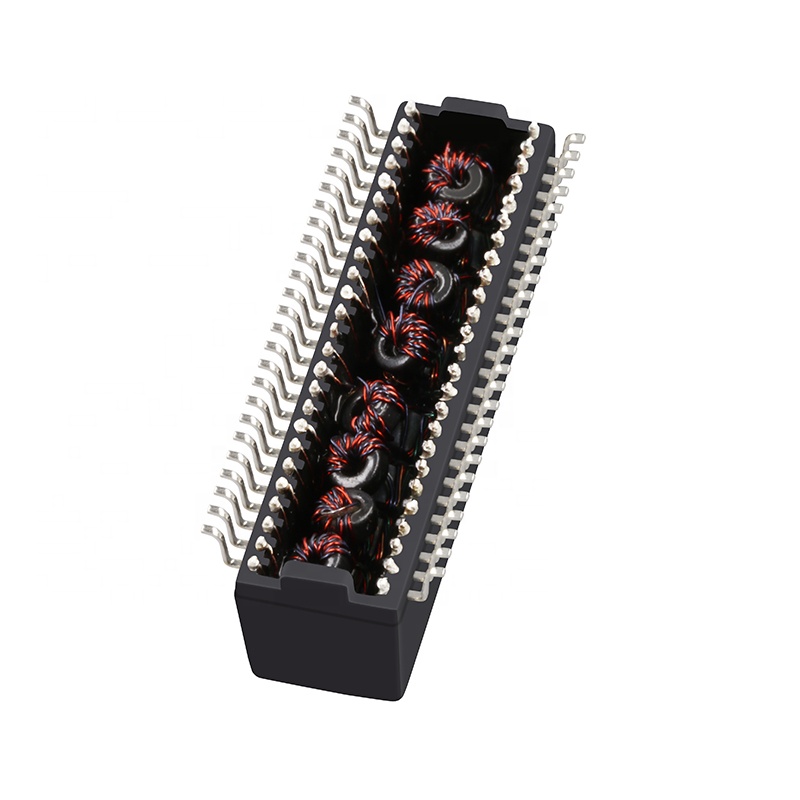

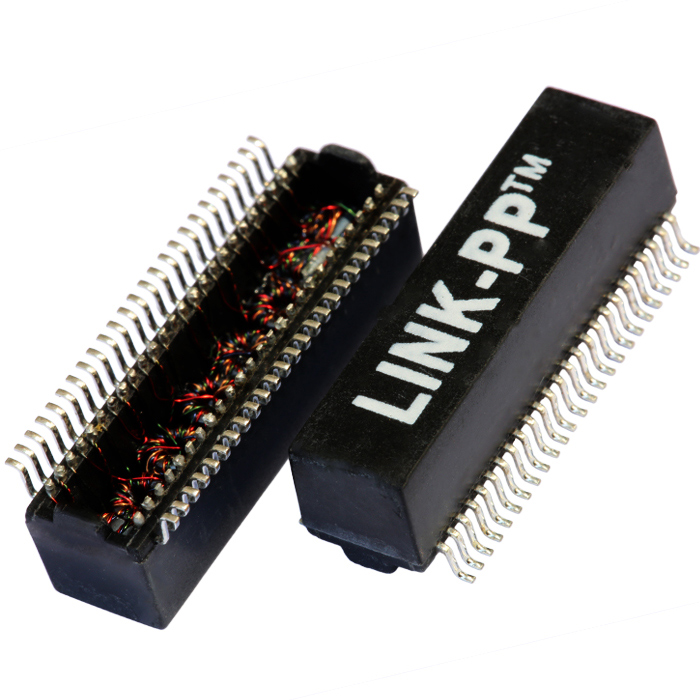

Dual Port 1000 BASE-T SMD Current LAN Transformer Modules LP5020NLR

Product Description

Dual Port 1000 BASE-T SMD Current LAN Transformer Modules LP5020NLR
Product Overview
📦 Products Description
ItemLan Transformer
Replaceable ModelLP5020NLR
Part StatusActive
ConstructionOpen frame
Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of PortsSingle / Dual / Quad
Speed10 / 100 / 1000 Base-t
Cores per Port4 / 8 / 12
Pin Number10 Pin / 12 Pin / 24 Pin / 48 Pin
Mounting TypeDip / Smt
Temperature0℃ To 70℃ / -40℃ To 85℃
AutoMDXYES
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C,S
PackageTape & Reel
Why Choose Us
🏢 Company Profile
Our company is a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With an abundant productive capacity of 3000K per month, we are able to deliver goods within a short time. Moreover, we provide professional complete solutions for magnetic components and strong technical support.

Main Products: 10/100/1000M LAN pulse transformer and filter, RJ45 connector with 10/100/1000M magnetic, T1/E1, T3/DS3/E3/STS-1 interface line transformer, ISDN, HDSL, ADSL and VDSL interface line transformer and splitter. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported products to more than 30 countries and regions worldwide.

Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solution for unique requirements. We trust that our strength in the field and our faith in pursuing excellence will convince you to be our long-term partner.
FAQ
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
Stock items are ready to ship immediately; mass production typically takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries for detailed discussion on custom requirements.
What is your core advantage?
We have 19 years of professional production experience and established long-term partnerships with leading industry global players.
