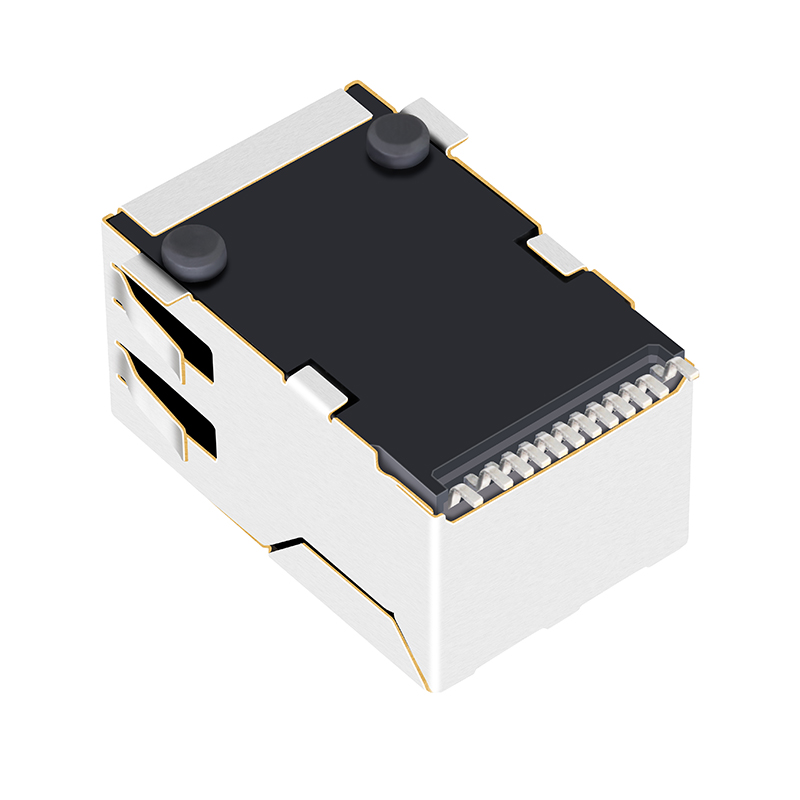

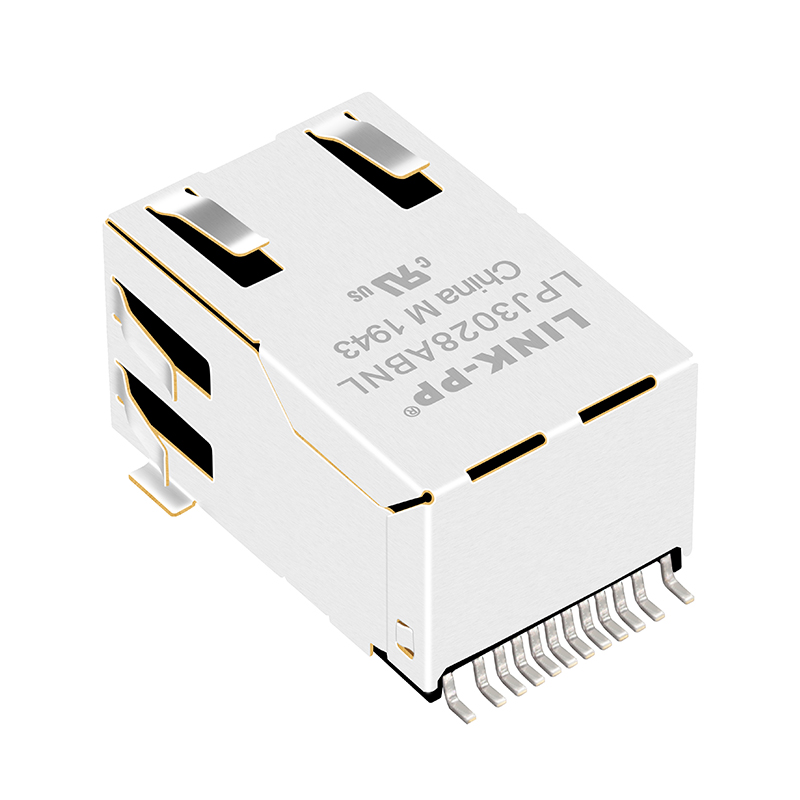

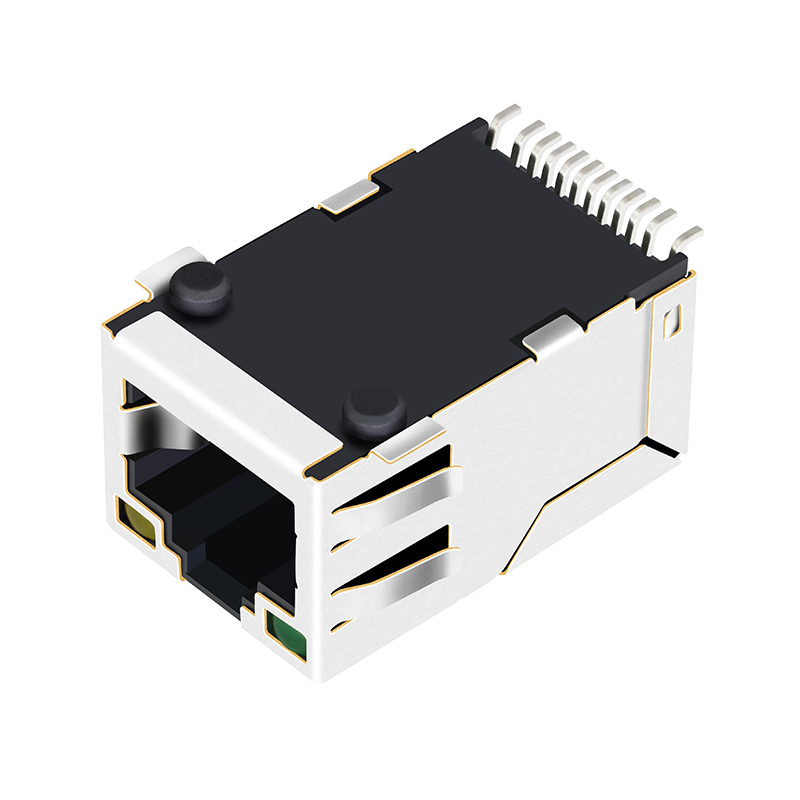

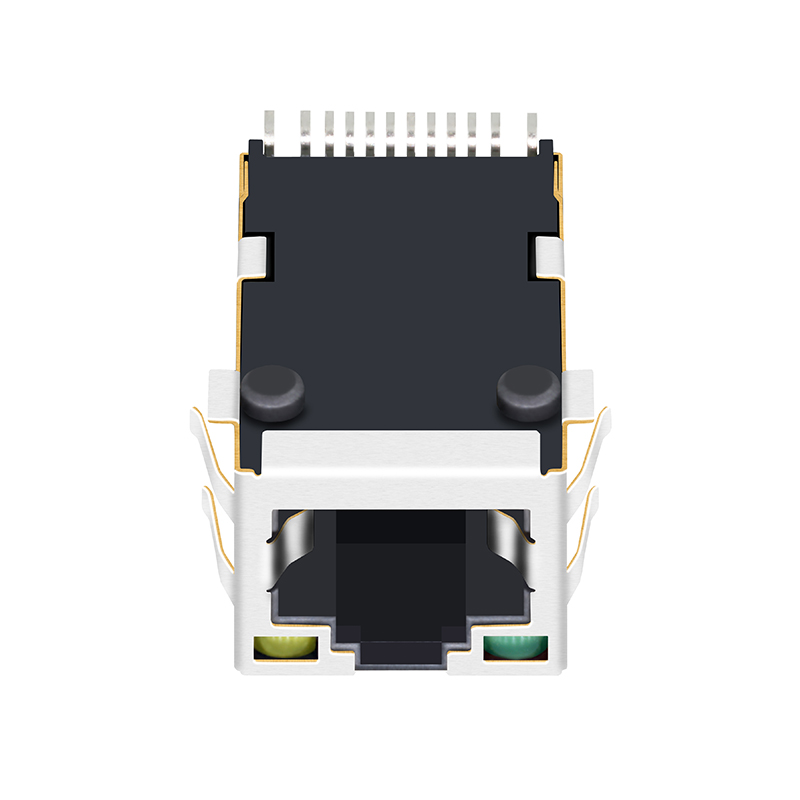

SMT RJ45 Jack With 10/100Base-T Magnetics Module HR961160C

1 / 5

SMT RJ45 Jack With 10/100Base-T Magnetics Module HR961160C

Send Inquiry

Product Description

Products Description

Item	RJ45 Female Connector
Part Number	HR961160C
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet(NoN PoE)
Number of Ports	1x1 Port
Speed	10/100 Base-T
Latch	Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	With
LED Option	Green/Yellow
PCB	FR4
PCB Retaining Post	T POST
Temperature	0℃ TO 70℃
Bst Circuit	Yes
AutomDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

▼ Browse More Related Products ▼

About Our Expertise

Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.

We are a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers in over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer solutions.

Frequently Asked Questions

Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I obtain a sample before mass production?

Yes, we provide free samples for quality testing; however, the customer is responsible for the shipping fees.

What is the typical delivery time?

In-stock items are ready for immediate shipment. For mass production, the lead time is generally between 15 to 30 days.

What kind of after-sales service do you offer?

We provide a one-year warranty period and offer 24-hour online technical support.

Do you accept OEM or ODM orders?

Yes, we welcome OEM and ODM inquiries. Please contact us to discuss your specific requirements in detail.

What are your primary advantages?

With over 19 years of production experience, we have established long-term partnerships with major global technology leaders and maintain rigorous quality standards.
