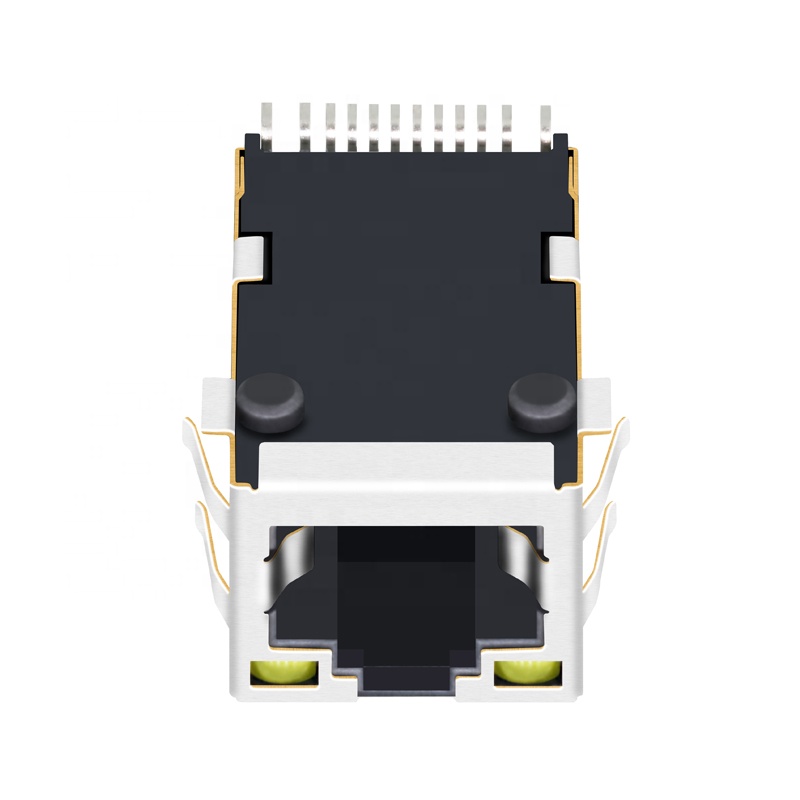

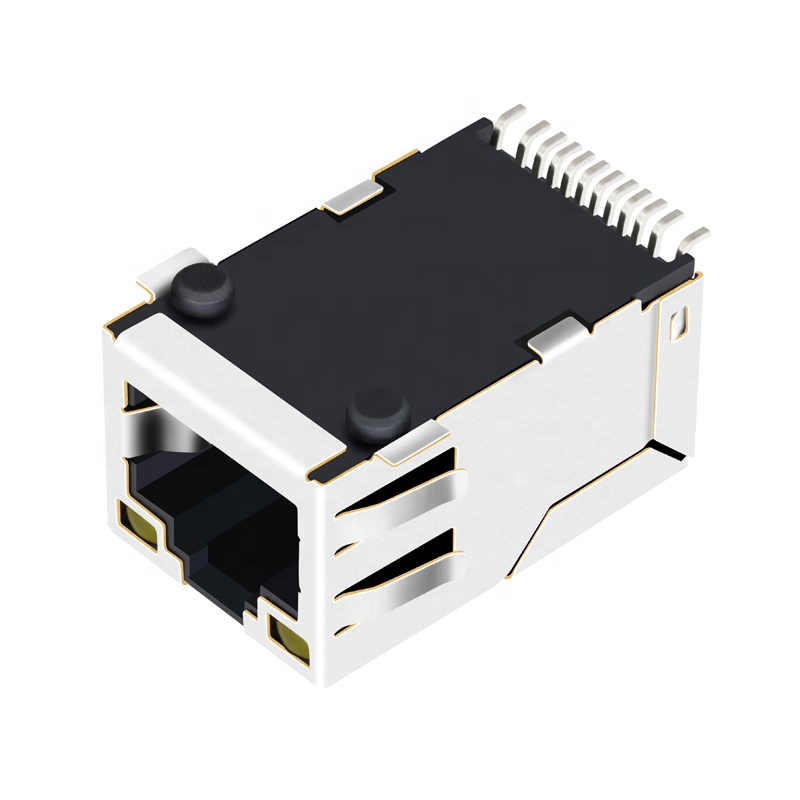

Single Port SMT Modular Magnetics Jack RJ45 Smb Connector

1 / 5

Single Port SMT Modular Magnetics Jack RJ45 Smb Connector

Send Inquiry

Product Description

Single Port SMT Modular Magnetics Jack RJ45 Smd Connector

Products Description

Item	RJ45 Female Connector
Part Status	Active
Connector Type	Jack
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Application-Lan	Ethernet (Non PoE)
Number of Ports	1x1 Port
Speed	10/100/1000 Base-T
Latch	Up
Cores per Port	4
Orientation	90° Angle (Right)
PCB Mount Angle	SIDE ENTRY
Shield EMI Tabs	Without
LED Option	Green/Yellow
PCB	FR4
PCB Retaining Post	T POST
Temperature	0℃ TO 70℃
Bst Circuit	Yes
AutoMDX	YES
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Turns Ratio RX/TX	1CT:1CT
Configuration RX/TX	T,C

Product Range Overview

Professional Capabilities

As a professional designer and manufacturer in magnetic telecom and networking components, we offer an extensive line of state-of-the-art catalog products as well as custom capabilities.

We are a global supplier for magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, supplying customers in over 200 countries. With multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer solutions.

Frequently Asked Questions

Are you a factory or trading company?

We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.

Can I get a sample before mass production?

Yes, we can offer free samples to test quality, though shipping fees are typically covered by the customer.

What is the standard delivery time?

Items in stock are ready to ship immediately. For mass production, the lead time is generally between 15 to 30 days.

What kind of after-service do you provide?

We provide a one-year guarantee period along with 24-hour online technical support.

Do you accept OEM/ODM orders?

Yes, we welcome OEM and ODM inquiries. Please contact us to discuss your specific requirements in detail.

What are your main advantages?

With nearly two decades of production experience, we have established long-term partnerships with leading global technology firms, ensuring high-quality standards and reliable supply chains.
