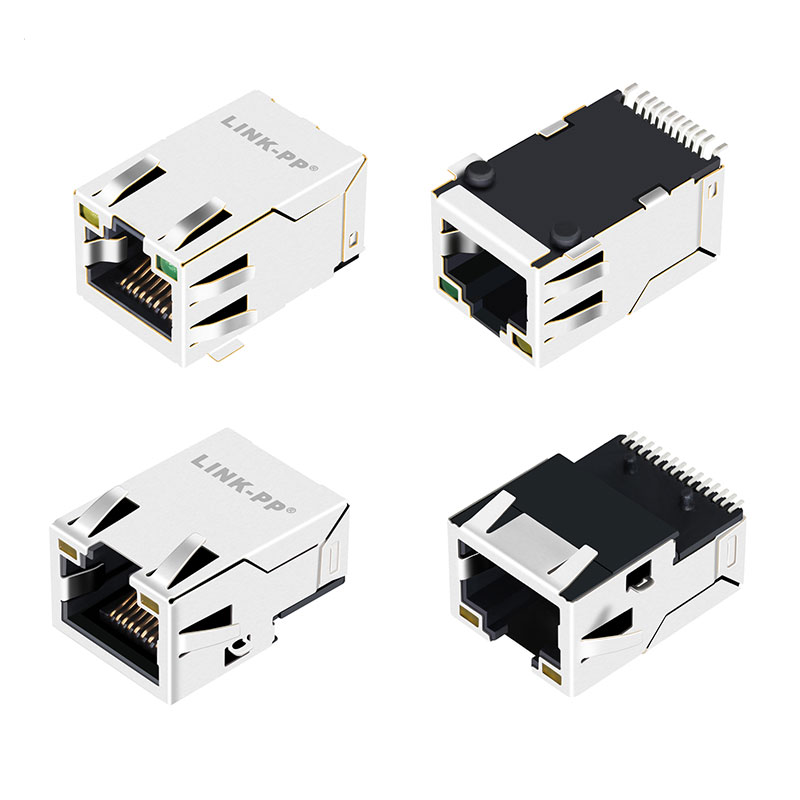

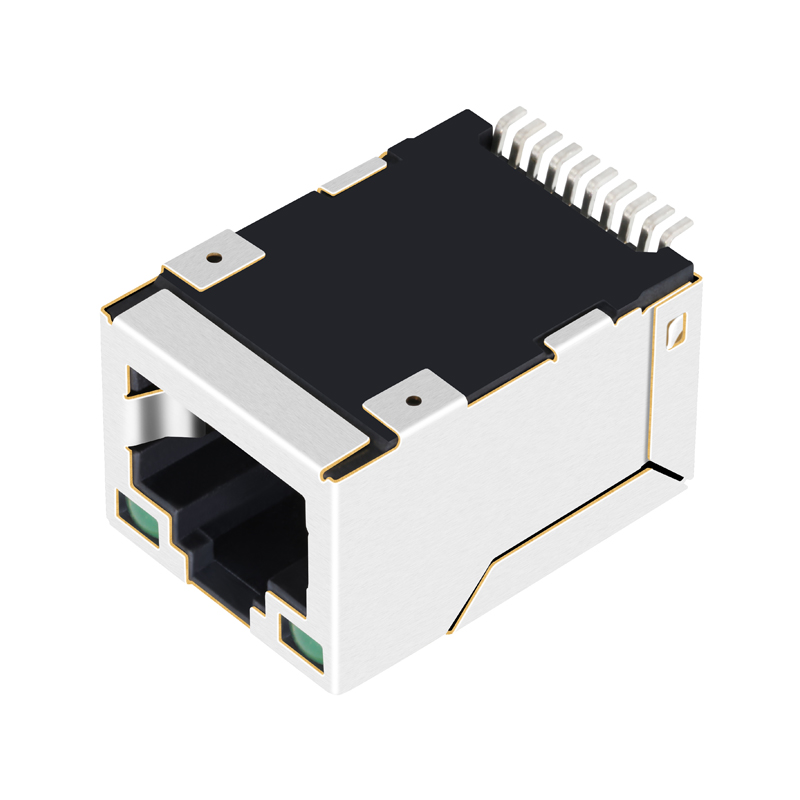

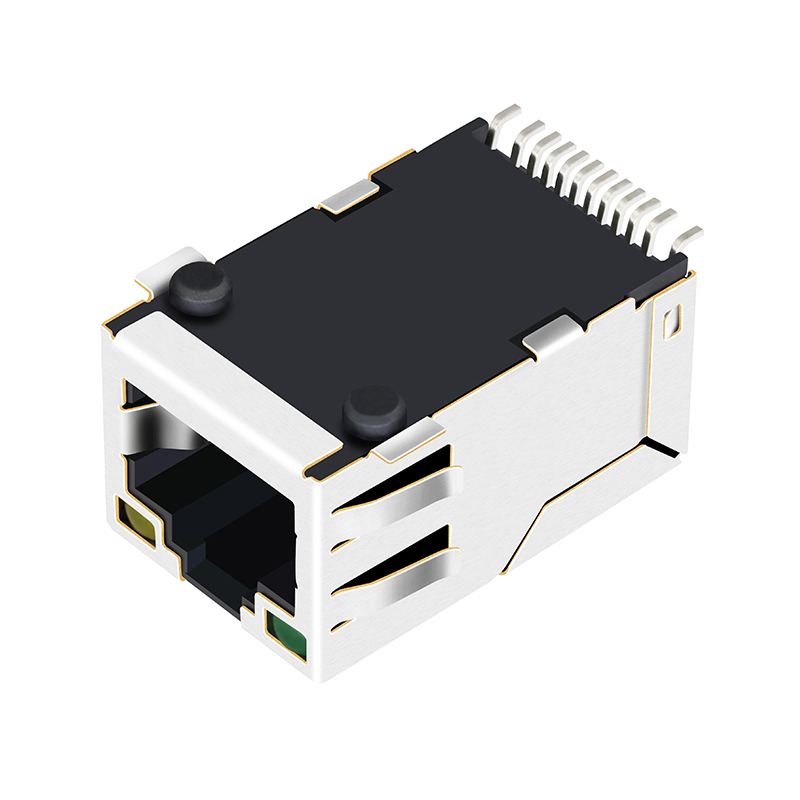

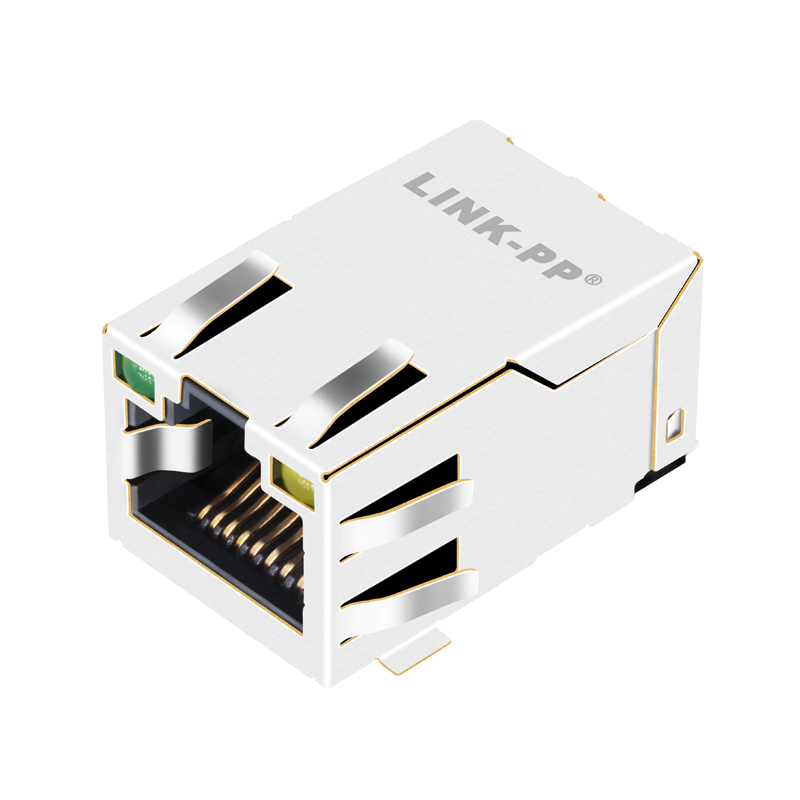

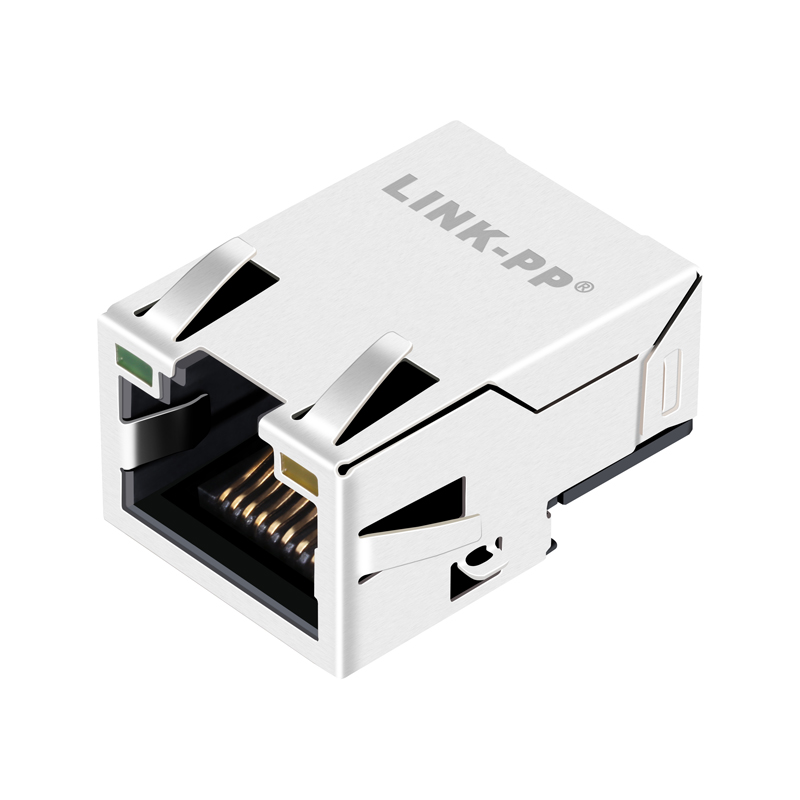

100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
1 / 5
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors
100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors

100/1000 Base-T With/without Leds 10p8c 8p8c POE/Non POE SMT SMD Lan PCB Ethernet Connector Modules RJ45 Modular Jack Connectors

Send Inquiry

Product Description

📘 Product Description
Characteristics:
RJ45 Connector with integrated transformer / common mode choke. Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s. Available in SMT, THT and THT with USB. Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt. HPLE products: Improved Common Mode Rejection due to additional NiZn cores.

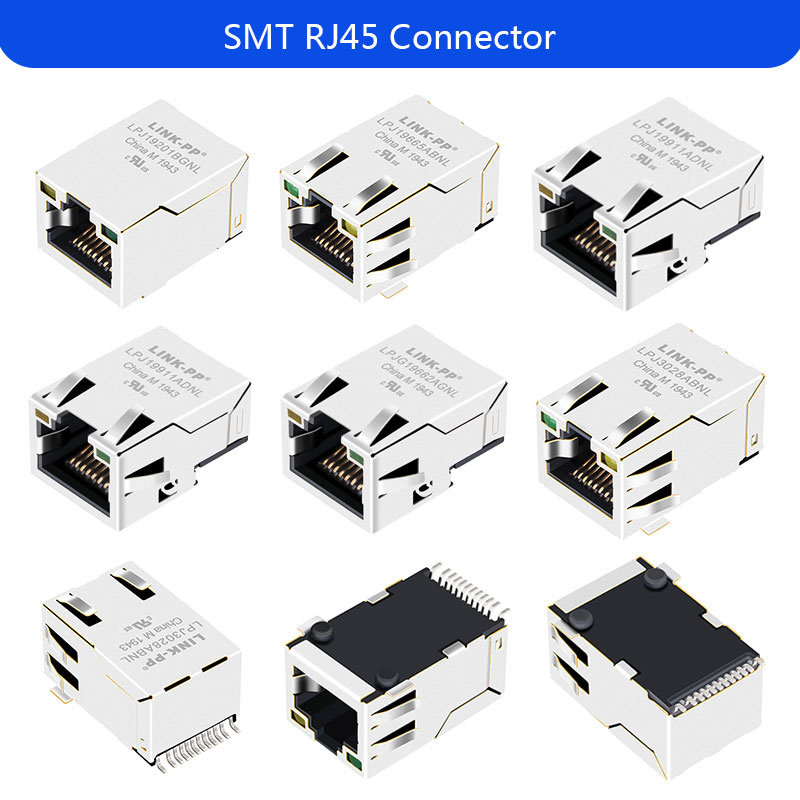

Product Description Image
📋 Specification
Model NumberSMT RJ45 Connector
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(PoE/Non_PoE)
Speed10/100/1000 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack4/6/8/12
ShieldingShielded, Emi Finger
Number of PortsSingle Port
FeaturesBoard Guide
Tab DirectionDown/Up
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C/-40°C ~ +85°C
📦 Packing & Delivery
Package Details:
Package: Tray, Carton size: 34.5*34.5*27cm, G.W./carton: 6.9kg, Qty/carton: 550pcs, SPQ: 110pcs, N.W/pcs: 0.013kg
Packing Image
🖼️ Product Display
❓ Frequently Asked Questions
1. How is product quality guaranteed?
We ensure quality through a pre-production sample before mass production and a final inspection before every shipment.
2. What specific products can I purchase?
Our core product range includes RJ45 Magnetic, Lan transformers, RJ11 Connectors, RJ45 Connectors, and SFP modules.
3. What are your delivery terms?
We accept various delivery terms including FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DDP, DDU, and Express Delivery.
4. What payment methods are accepted?
We support multiple payment types such as T/T, L/C, D/P, MoneyGram, Credit Card, PayPal, Western Union, and Escrow in various currencies like USD, EUR, JPY, and more.
5. In which languages can we communicate?
Our team is proficient in multiple languages including English, Chinese, Spanish, Japanese, Portuguese, German, French, Russian, and more.
6. What is the manufacturing capacity?
With an extensive production team and facilities, we maintain a productive capacity of approximately 30,000K units per week.
