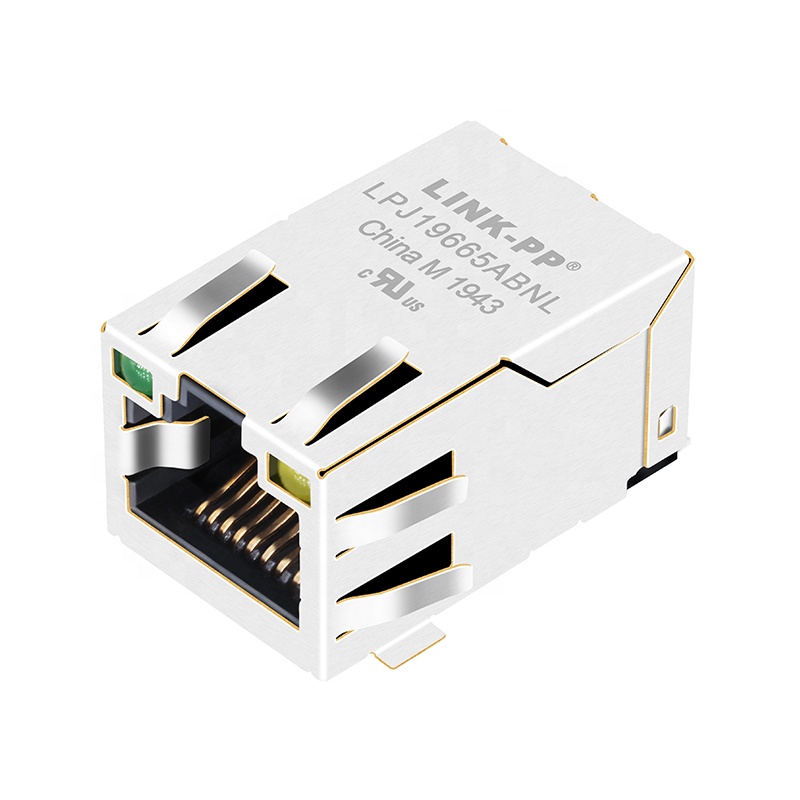

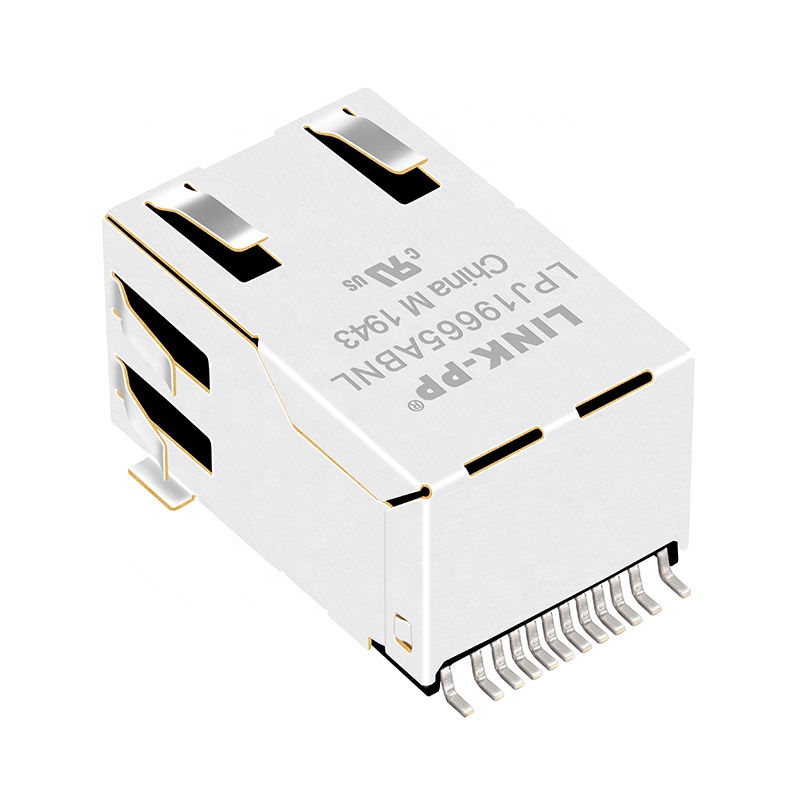

SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A
1 / 5
SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A
SMT RJ45 Male to Female Connector with LED 7498010210A

SMT RJ45 Male to Female Connector with LED 7498010210A

Send Inquiry

Product Description

Product Overview
SMT RJ45 Male to Female Connector with LED 7498010210A
Products Description
ItemRJ45 Female Connector
Part NumberLPJ19665ABNL
Alternative Part Number7498010210A
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet (Non PoE)
Number of Ports1x1 Port
Speed10/100 Base-T
Latch DirectionUp
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWith
LED OptionGreen/Yellow
PCB MaterialFR4
PCB Retaining PostT POST
Operating Temperature-40℃ TO 85℃
Bst CircuitYes
AutoMDIXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
RJ45 Detail 1
RJ45 Detail 2
SMT Connector Side View
SMT Connector Top View
SMT Connector Bottom View
Product Range & Capabilities
Product Series Overview
Manufacturing Process 1
Manufacturing Process 2
Quality Control
Testing Laboratory
Certifications 1
Certifications 2
Global Supply Capability
Professional designer and Manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve global OEMs, contract manufacturers, and CEMs across over 200 countries. Committed to becoming a world-leading provider of Ethernet RJ45 connectors and LAN transformer solutions.
Factory Overview
Production Line
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples for quality testing; shipping fees are typically handled by the customer.
What is your standard delivery time?
Stock items are ready to ship immediately, while mass production typically takes 15-30 days.
What after-sales service do you provide?
We provide a one-year guarantee period along with 24-hour online technical support.
Do you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries for detailed discussion on custom specifications.
What are your core advantages?
With over 19 years of production experience, we are a long-term partner for leading global technology corporations.
