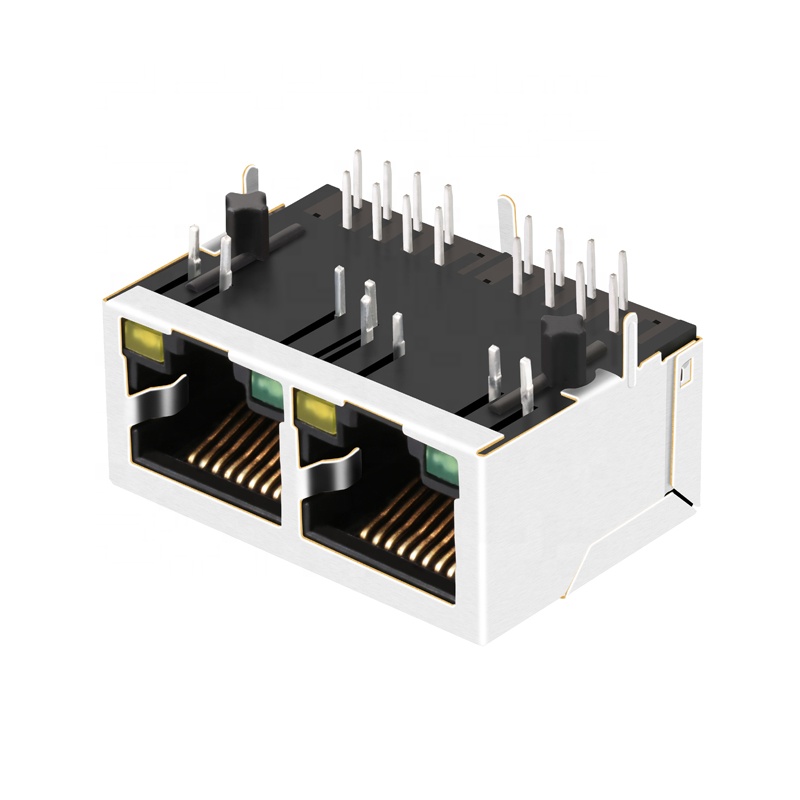

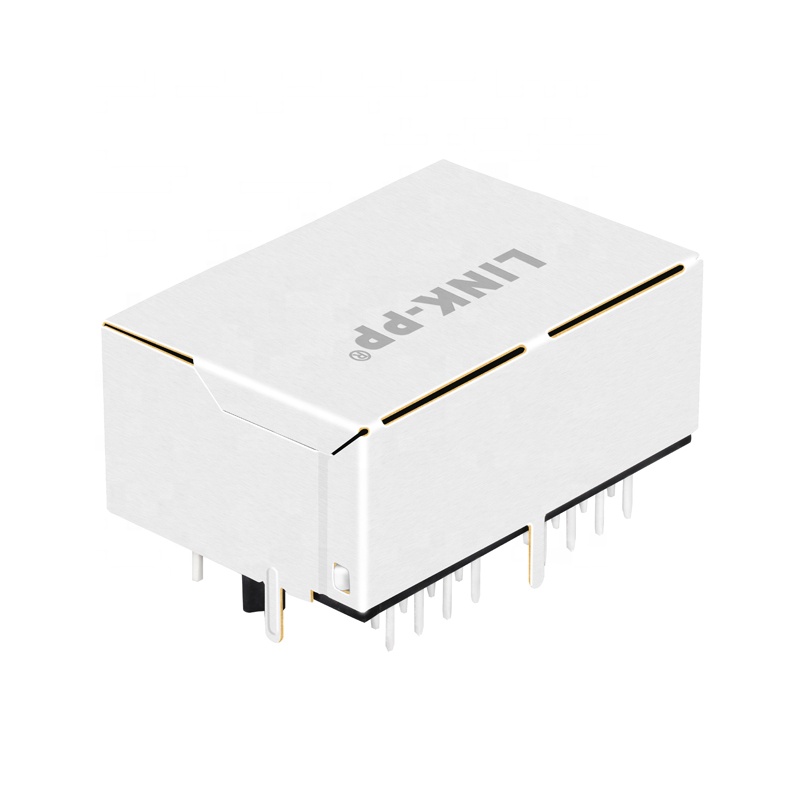

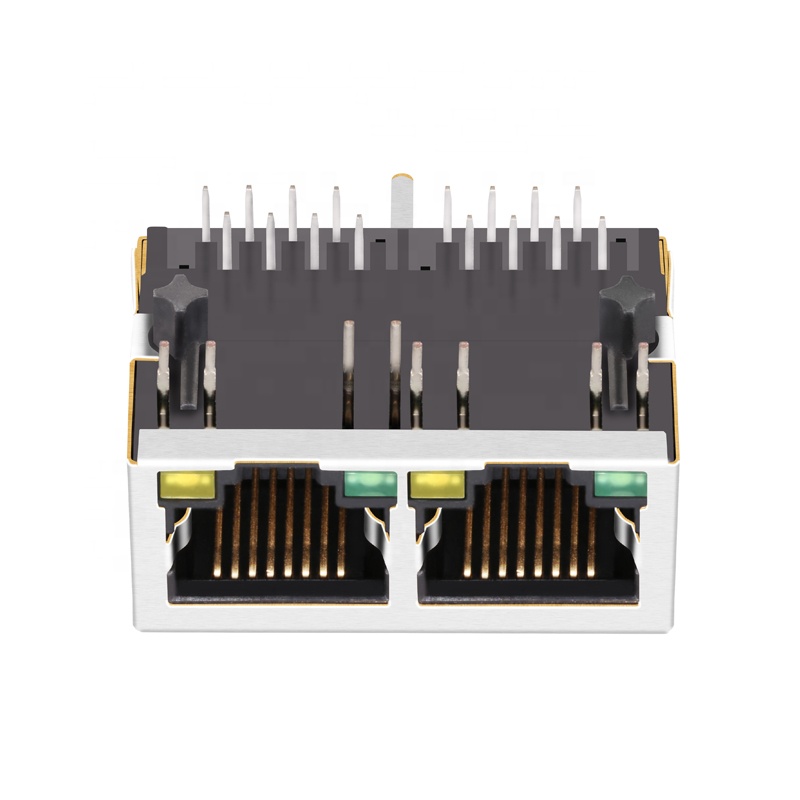

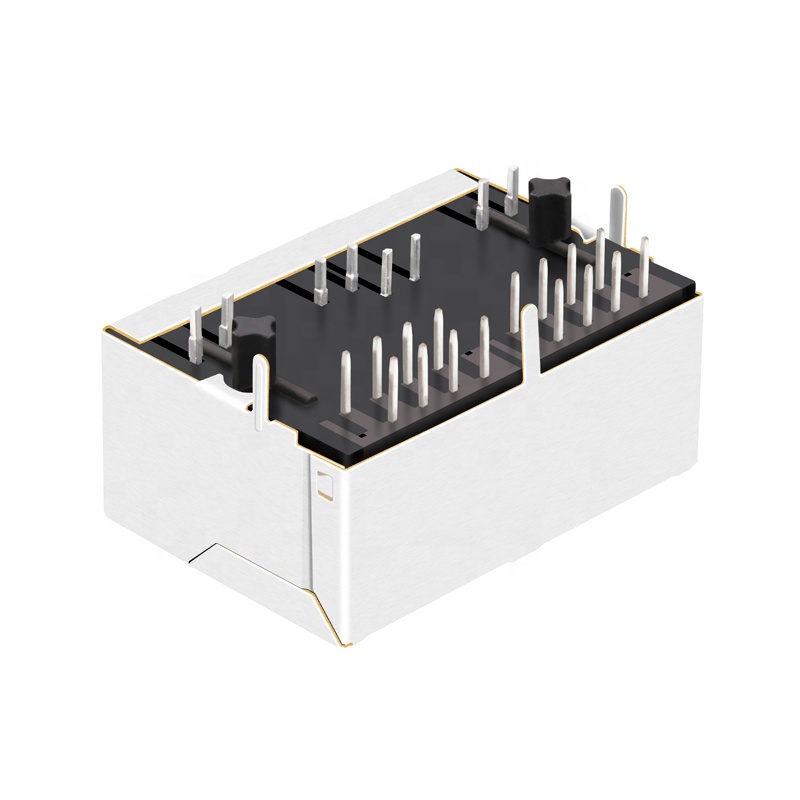

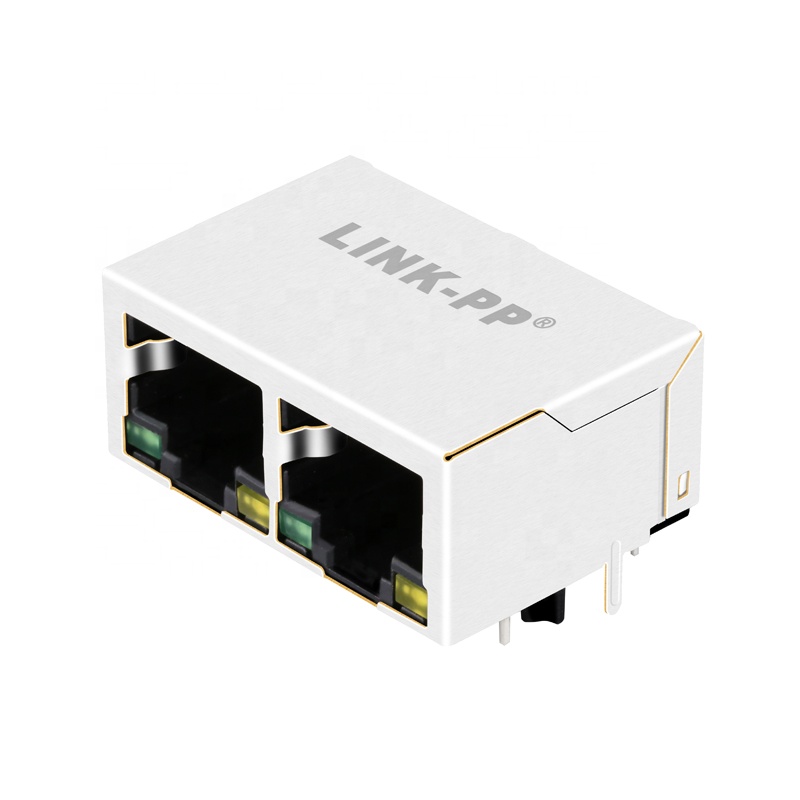

1X2 RJ 45 Modular Connector 8P8C 1840548-1
1X2 RJ 45 Modular Connector 8P8C 1840548-1
1X2 RJ 45 Modular Connector 8P8C 1840548-1
1X2 RJ 45 Modular Connector 8P8C 1840548-1
1X2 RJ 45 Modular Connector 8P8C 1840548-1
1 / 5
1X2 RJ 45 Modular Connector 8P8C 1840548-1
1X2 RJ 45 Modular Connector 8P8C 1840548-1
1X2 RJ 45 Modular Connector 8P8C 1840548-1
1X2 RJ 45 Modular Connector 8P8C 1840548-1
1X2 RJ 45 Modular Connector 8P8C 1840548-1

1X2 RJ 45 Modular Connector 8P8C 1840548-1

Send Inquiry

Product Description

Product Overview
1X2 RJ 45 Modular Connector 8P8C 1840548-1
Products Description
ItemRJ45 Female Connector
Part StatusActive
Connector TypeJack
Number of Positions/Contacts8p8c (RJ45, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x2 Port
Speed10/100/1000 Base-T
LatchDown/Up
Cores per Port4
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout/With
LED OptionGreen/Yellow
PCBFR4
PCB Retaining PostT POST
Temperature0℃ TO 70℃ / -40℃ TO 85℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C
RJ45 Details
Related Product Series
Product Categories
Quality & Dimensions
Dimensions Technical Drawing
Internal Structure Production Process
Manufacturing Facility
Manufacturing
Assembly Line Testing Equipment
Company Profile
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier to OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a leading Ethernet RJ45 connector and LAN transformer provider.
Exhibition Certification Warehouse
Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples for you to test quality, with the shipping fee covered by the requester.
What is your delivery time?
Items in stock are ready to ship immediately; mass production typically takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we welcome OEM and ODM inquiries for detailed discussion and custom development.
What is your advantage in the industry?
We have over 19 years of professional production experience and serve as a long-term partner for major global technology firms.
