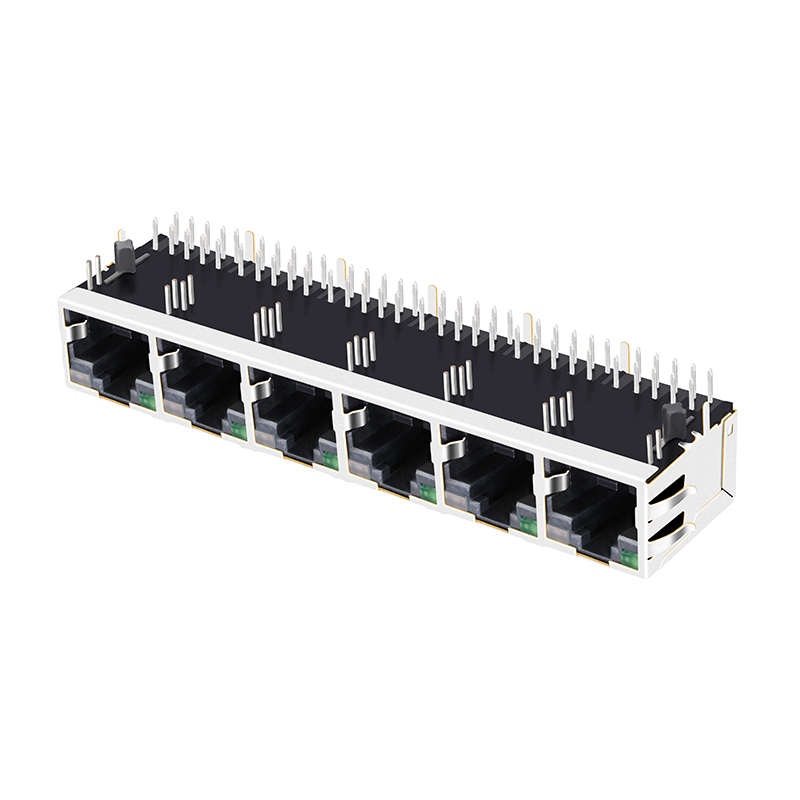

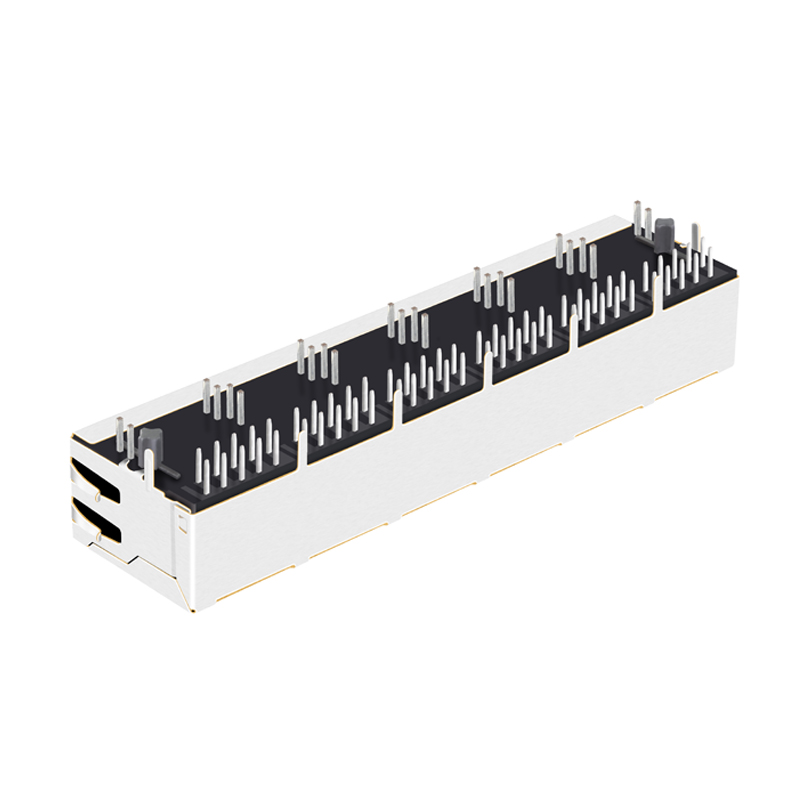

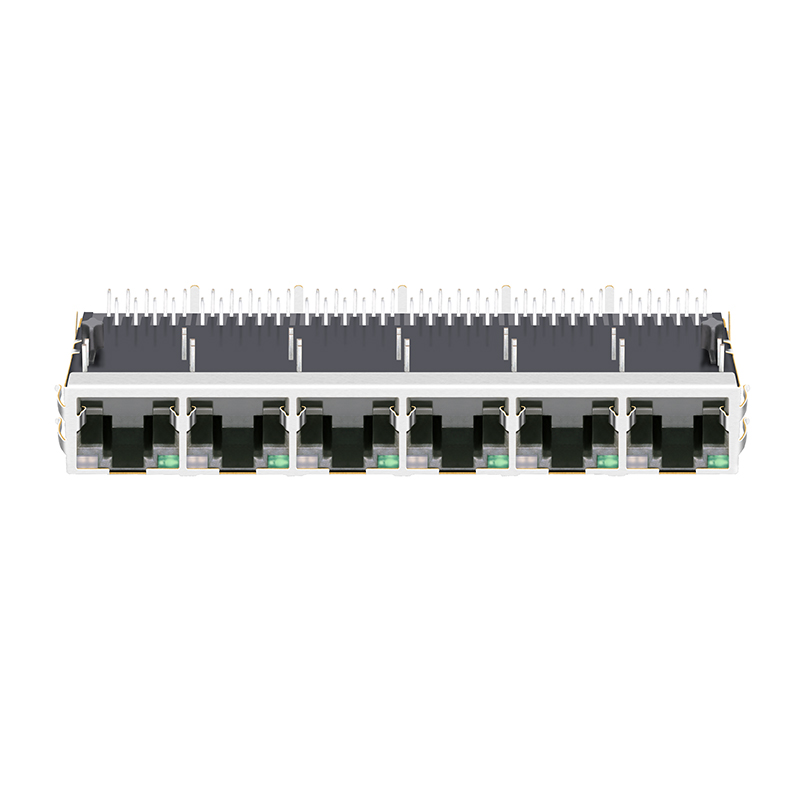

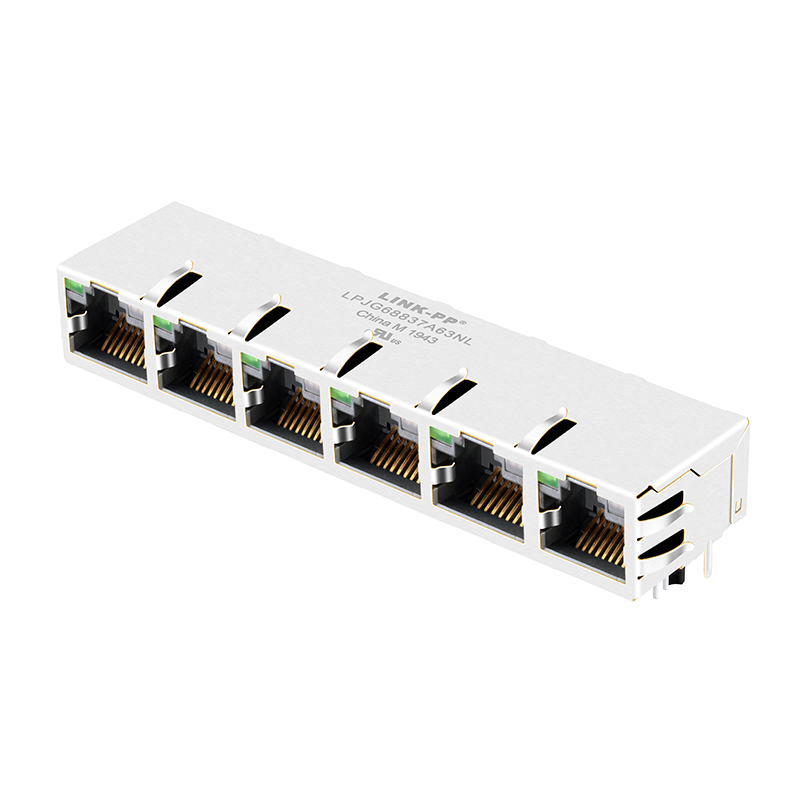

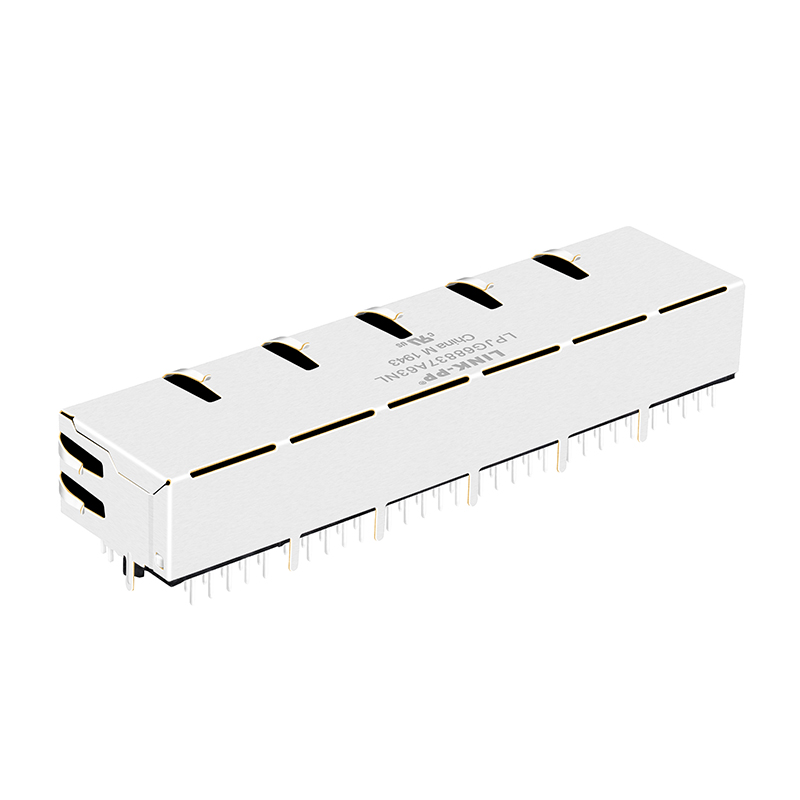

JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
1 / 5
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack
JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack

JG0-0070NL PCB Mount 1000 Base-T 10 Pin 1x6 Port Shielded Connectors Ethernet RJ45 Magjack

Send Inquiry

Product Description

Product View 1
Product View 2
Product Specifications
Part NumberLPJG68837A63NL
Cross ReferenceJG0-0070NL
StatusActive
Connector TypeRJ45
Applications-LanEthernet (Non-PoE)
Speed10/100/1000 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen/Green & Orange Led
Number of Cores per Jack8
ShieldingShielded, EMI Finger
Number of Ports1x6 Port
FeaturesBoard Guide
Tab DirectionUp
Contact FinishGold
Configuration RX/TXT, C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
Detail 6
Main Product Categories
✔ 10/100/1000M/2.5G/5G/10G LAN pulse transformer and filter
✔ RJ45 connector with 10/100/1000M/2.5G/5G/10G magnetic
✔ T1/E1, T3/DS3/E3/STS-1 interface line transformer
✔ ISDN, HDSL, ADSL and VDSL interface line transformer and splitter
Production 1
Production 2
Production 3
Frequently Asked Questions
Q1: Are you a manufacturer or trade company? A: We are a manufacturer specialized in RJ45 connectors and LAN Transformers for more than 23 years.
Q2: Can I get some samples for testing? A: Yes, 3-5 pcs free samples are available for your test. Small batches are also acceptable.
Q3: Is OEM/ODM service available? A: Yes. We have rich experience and the ability to turn your design into a real product, including laser printing your brand.
Q4: What is the typical lead time? A: Usually we can ship within 30 days thanks to our professional high-quality production team.
Q5: Are your products certified for international markets? A: Yes, our products are certificated by ISO9001:2000, ROSH, REACH, CE, and UL standards.
Q6: What equipment are used for networking applications? A: Our products are widely used in HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
