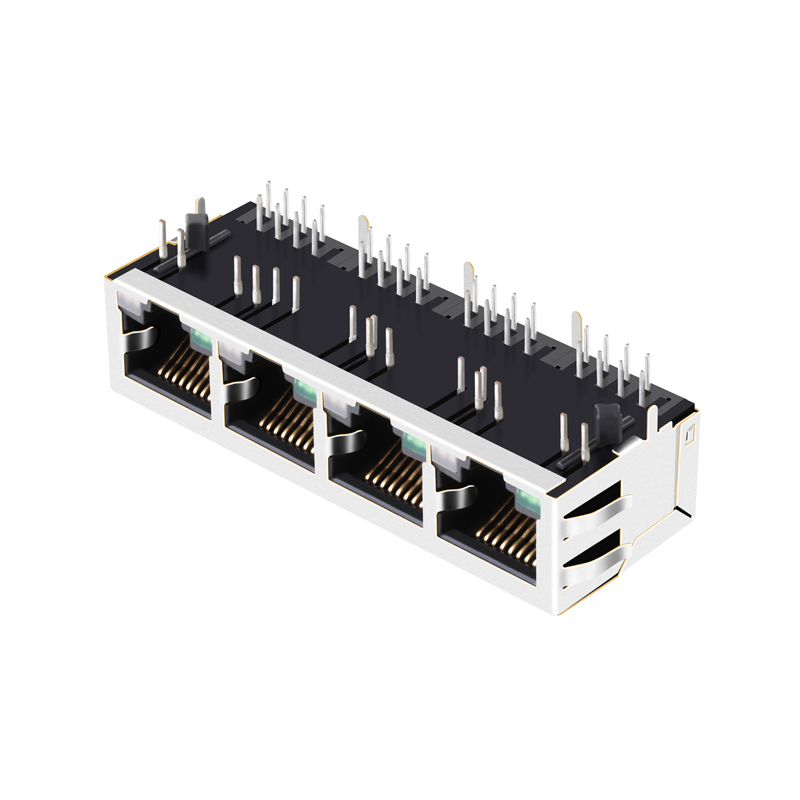

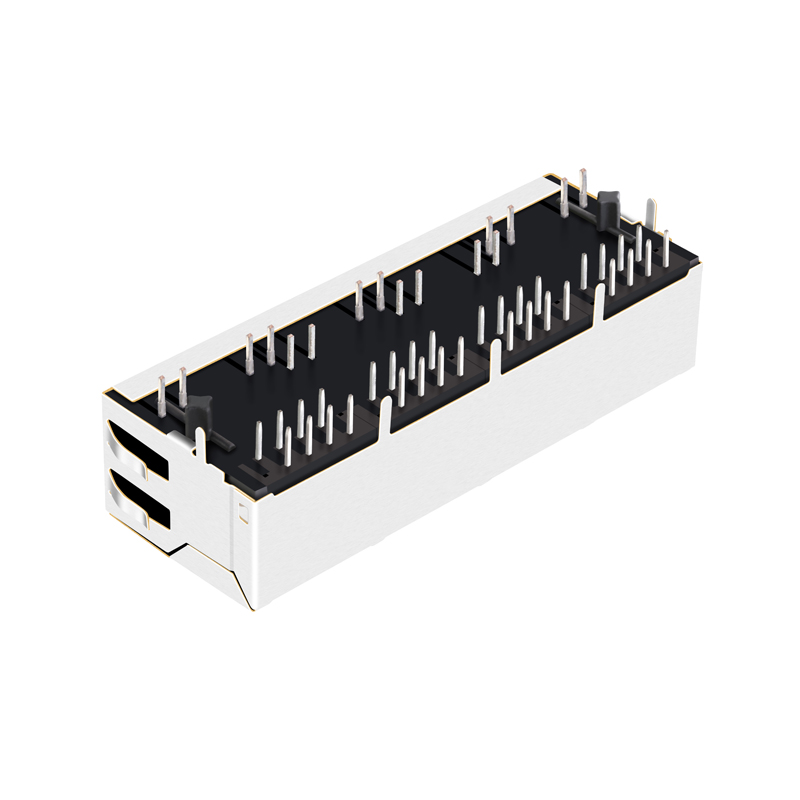

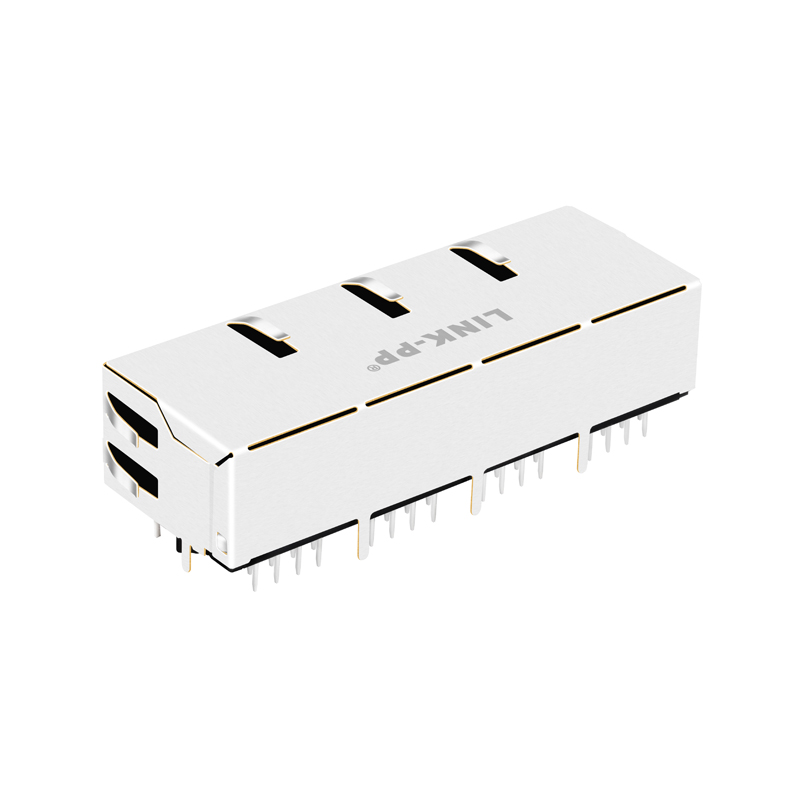

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
1 / 5
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7
Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7

Send Inquiry

Product Description

Gigabit Ethernet RJ45 Female Connector Tab up 1X4 Modular Jack 5-6610068-7

RJ45 Connector Banner

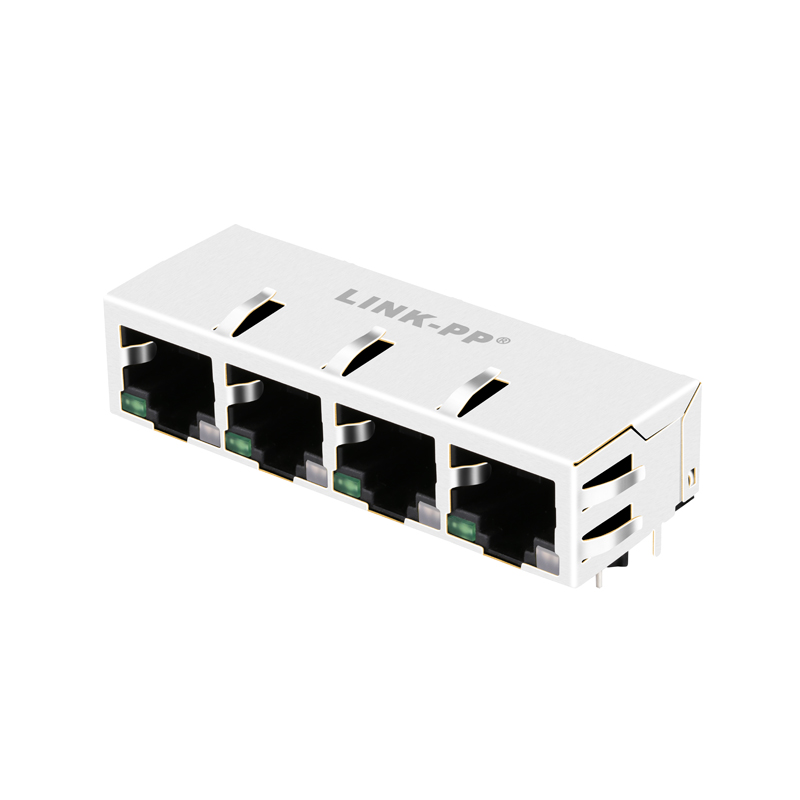

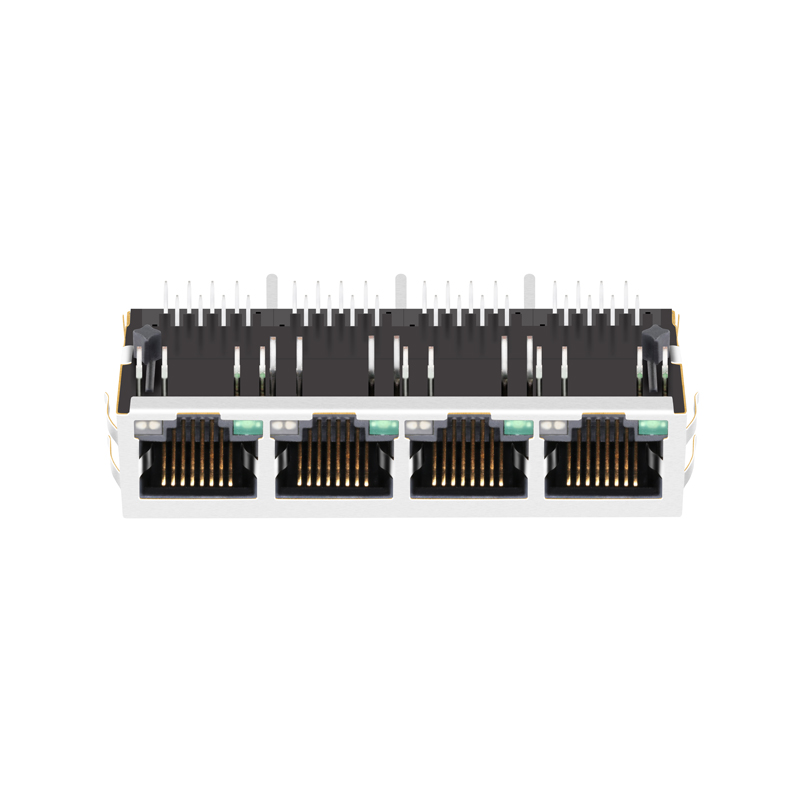

RJ45 Female Connector 1x4 View 1 RJ45 Female Connector 1x4 View 2
Specifications Divider
Part Number5-6610068-7
AutomDXYES
Bst CircuitYES
Configuration RXT,C
Configuration TXT,C
Contact Mating Area PlatingGOLD 6u"/15u"/30u"/50u"
Cores Per Port4
DiodesNO DIDES41
LED OptionGREEN/GREEN&ORANGE
LatchUP
Number of Ports1X4
PCBFR4
PCB Mount AngleSIDE ENTRY
PCB Retaining PostT POST
Pin TypeTHT SOLDER
RoHS CompliantYES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
SearchYES
Shield EMI TabsWITH OR WITHOUT
Speed1000 BASE-T
Temperature0 TO 70°C/-40 TO 85°C
Turns Ratio RX1CT:1
Turns Ratio TX1CT:1
Why Choose Our Solutions
World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers
Professional Certification
✔ ISO 9001:2008
✔ UL Certification
✔ Reach Certification
✔ RoHS Compliance
✔ Active Environmental Policy
100% Guarantee Quality
✔ Manufactured Under Strict Controls
✔ 100% Tested (Not Just Batch Tested)
✔ Preferred Supplier for Industry Leaders
✔ Quality Guarantee: 6 Years
Competitive Edge & Service
✔ Delivery Time: 2-3 Weeks After Orders
✔ Free Samples Are Available
✔ Custom Design Services for Client Requirements
Technical Drawing 1 Technical Drawing 2
Dimensional Specifications
Application Overview
● Preferred Supplier of TI, Samsung, Cisco, Siemens, and Intel
● Featured on BeagleBone Board
Footer Banner
Factory Testing 1 Factory Testing 2

Frequently Asked Questions

Q1: What is the data transmission speed of the 5-6610068-7 connector?
A: This RJ45 connector supports 1000 BASE-T (Gigabit Ethernet) speeds, ensuring high-speed data transfer for demanding networking applications.
Q2: What is the port configuration for this modular jack?
A: The 5-6610068-7 features a 1X4 configuration, meaning it contains 4 integrated ports in a single modular component.
Q3: Does this connector include integrated LEDs?
A: Yes, it comes with LED options, typically featuring Green/Green & Orange combinations to indicate link status and activity.
Q4: What are the environmental operating temperatures?
A: The connector is designed to operate in ranges from 0 to 70°C, with industrial grade options reaching -40 to 85°C.
Q5: Is the 5-6610068-7 RoHS compliant?
A: Yes, it is RoHS-5 compliant with lead-in-solder exemption, meeting essential environmental safety standards.
Q6: What mounting type is used for this RJ45 jack?
A: It uses Through-Hole Technology (THT) solder mounting with a side-entry (Right Angle) PCB mount angle.
