Send Inquiry

Product Description

📋Product Description & Characteristics

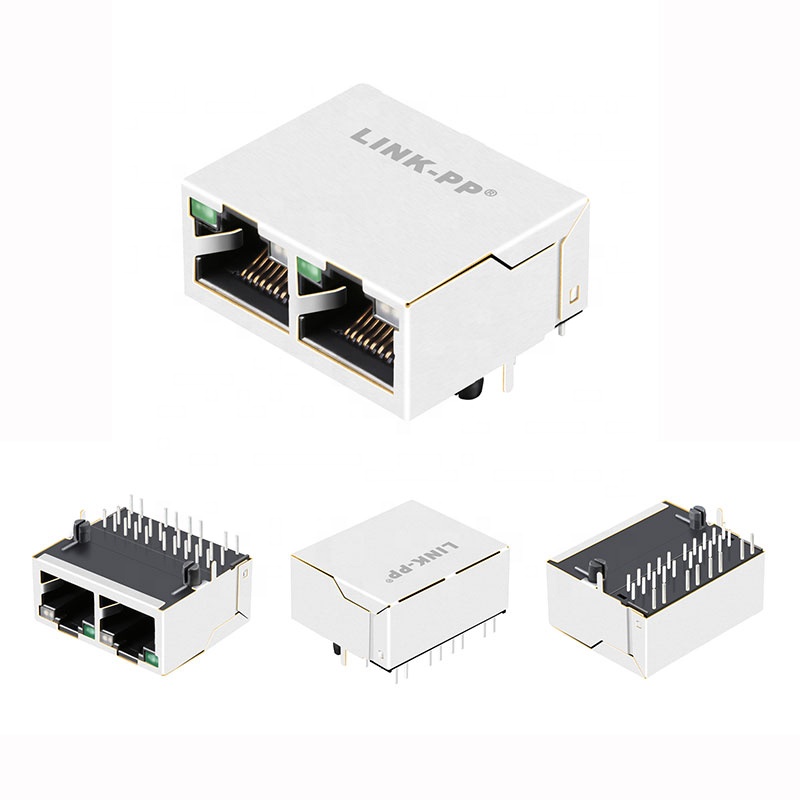

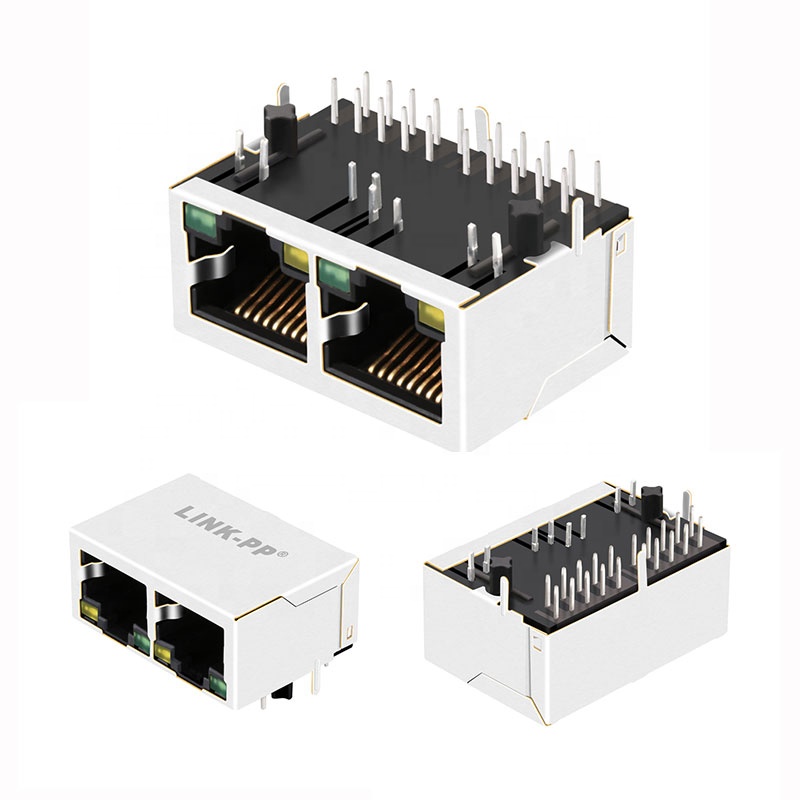

RJ45 Connector with integrated transformer / common mode choke Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s. Available in SMT, THT and THT with USB. Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt. HPLE products: Improved Common Mode Rejection due to additional NiZn cores.
RJ45 Connector
⚙️Specifications
Item Value
Model NumberIntegrated Connector Modules
Part StatusActive
Connector TypeRJ45
Applications-LanEthernet(PoE/Non_PoE)
Speed10/100/1000/2.5G/5G/10G Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorYellow/Green, Green/Yellow, Green&Yellow/Green&Yellow
Number of Cores per Jack4/6/8/12
ShieldingShielded, Emi Finger

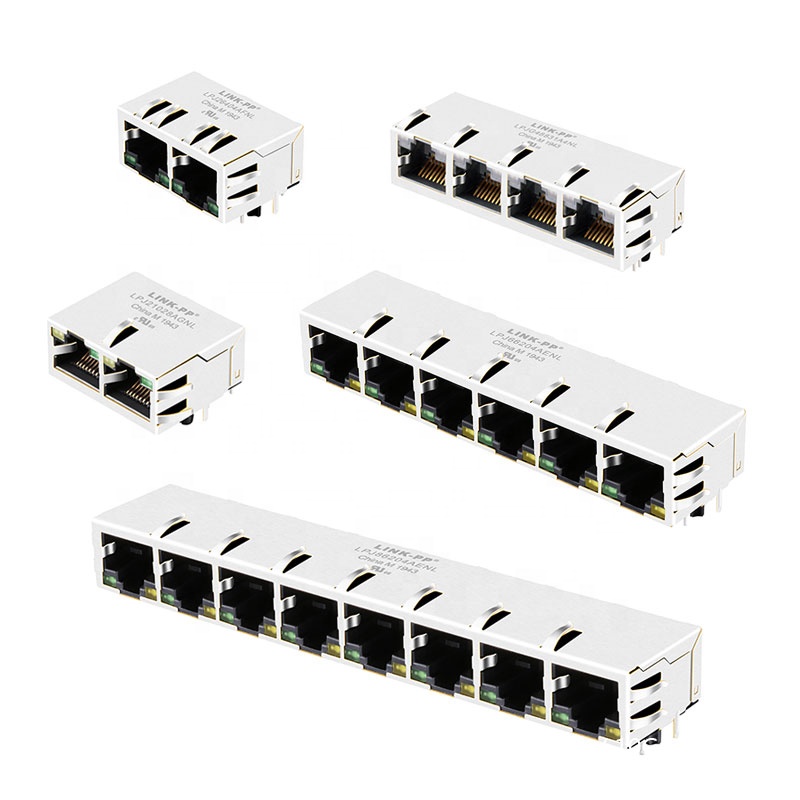

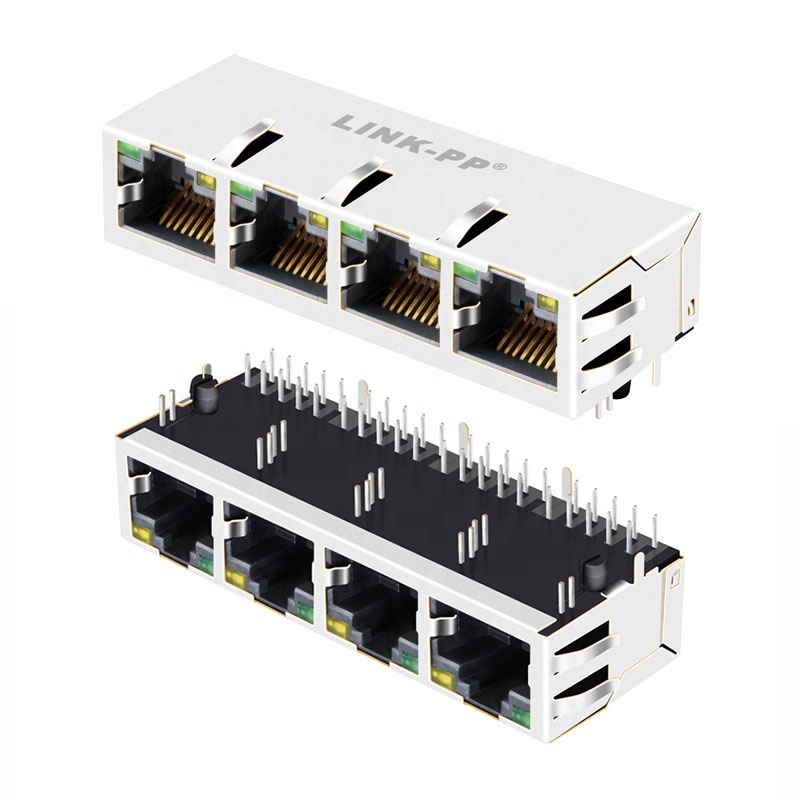

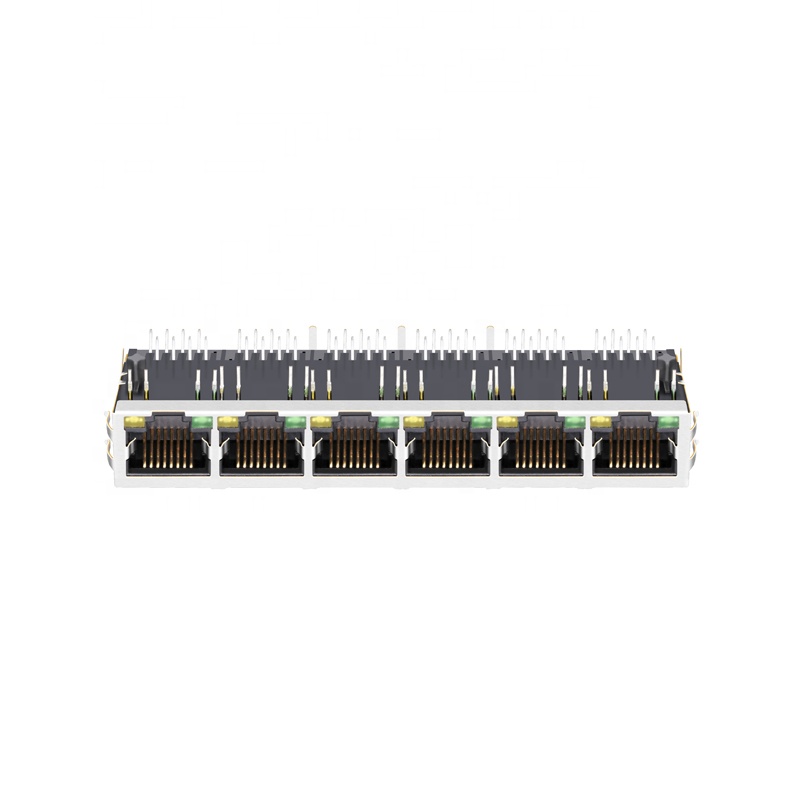

Number of Ports1x2 1x4 1x6 1x8 Port
FeaturesBoard Guide
Tab DirectionDown/Up
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C/-40°C ~ +85°C
📦Packing & Delivery
Package: Tray
Carton size: 37*30*30cm
G.W./carton: 9kg
Qty/carton: 600pcs
SPQ: 30pcs
N.W/pcs: 0.015kg
Packing Details
🏭Product Showcase
❓Frequently Asked Questions
Q1: What is the maximum speed supported by these RJ45 connectors?
Our Integrated Connector Modules support a wide range of speeds from 10/100/1000 Base-T up to 10Gbit/s, making them suitable for high-speed networking applications.
Q2: Are these connectors compatible with Power over Ethernet (PoE)?
Yes, they support PoE applications up to 50 Watts and are compliant with IEEE 802.3af, 802.3at, and 802.3bt standards.
Q3: What are the available mounting and orientation options?
The connectors feature a through-hole mounting type with a 90° right-angle orientation, designed for efficient PCB layout.
Q4: How do you guarantee product quality?
Quality is ensured through a rigorous process including pre-production samples before mass production and a final inspection before shipment.
Q5: What is the operating temperature range for these modules?
We offer both standard (0°C ~ 70°C) and industrial-grade (-40°C ~ +85°C) operating temperature options to meet different environment requirements.
Q6: What certifications do your RJ45 and LAN transformer products hold?
Our products are manufactured according to high standards and hold certifications such as ISO9001, UL, REACH, and CE.
