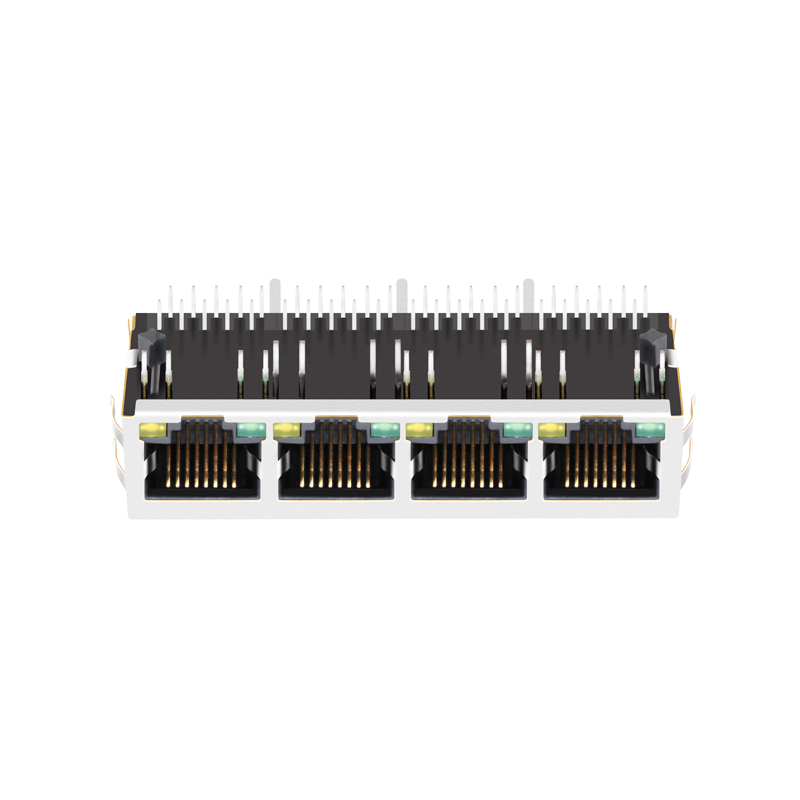

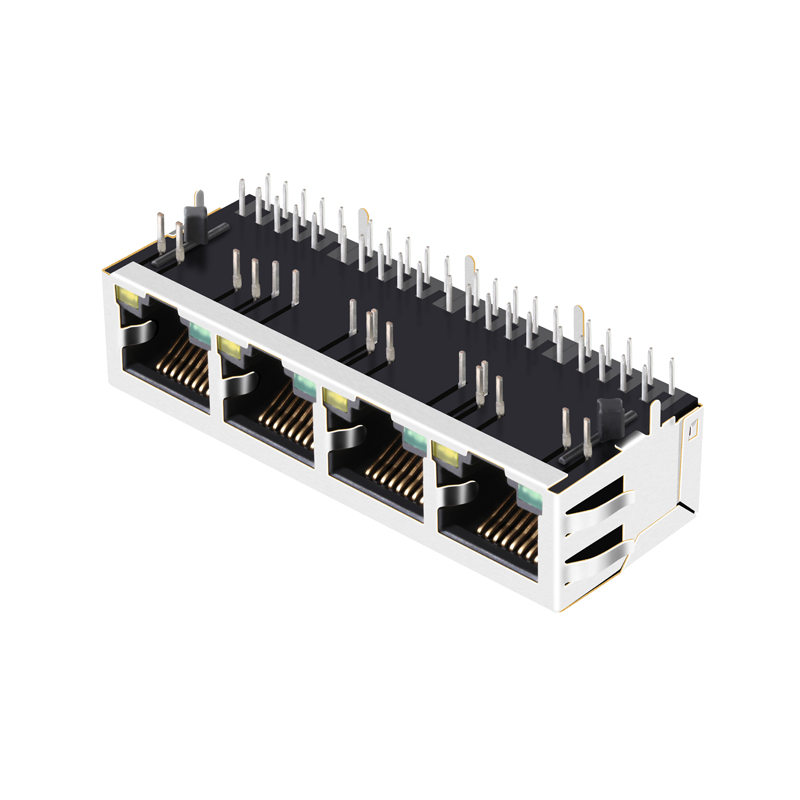

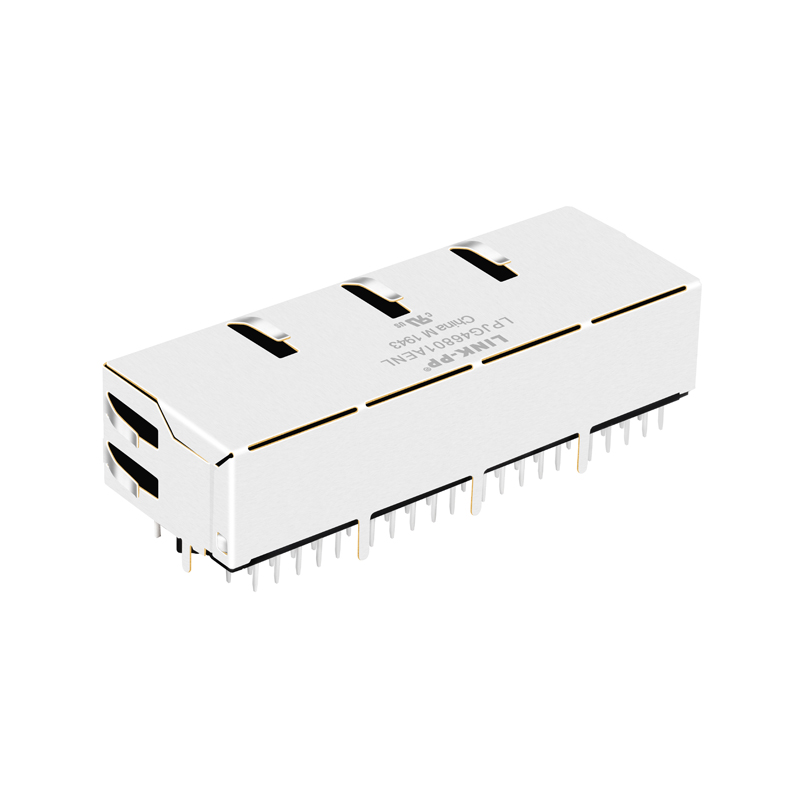

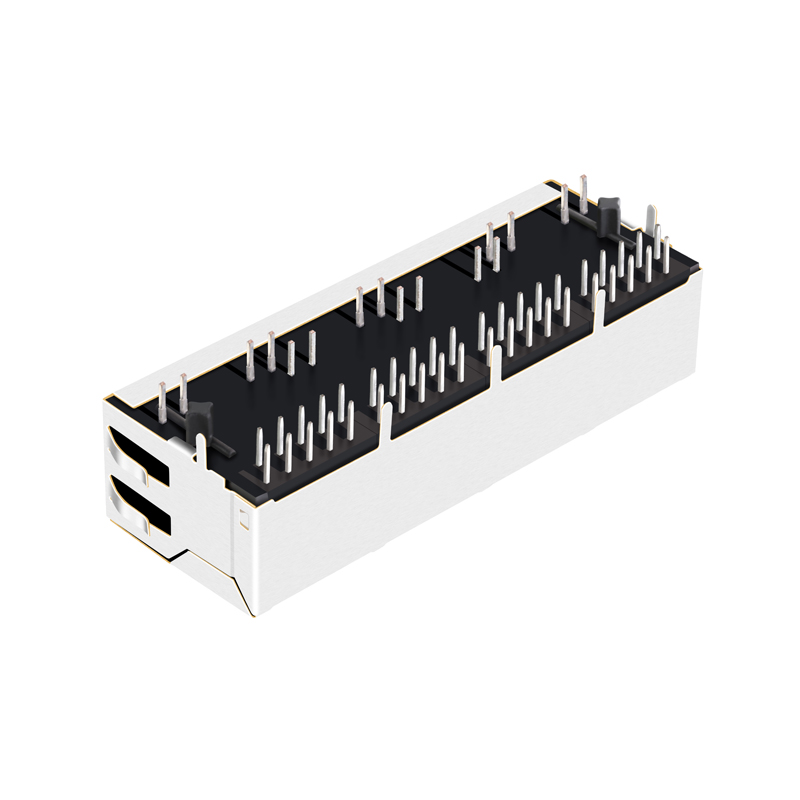

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
1 / 5
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector
LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

LPJG46801AENL 1000 Base-T 1X4 Port 10P8C Magnetic Ethernet RJ45 Connector

Send Inquiry

Product Description

📦
Product Description

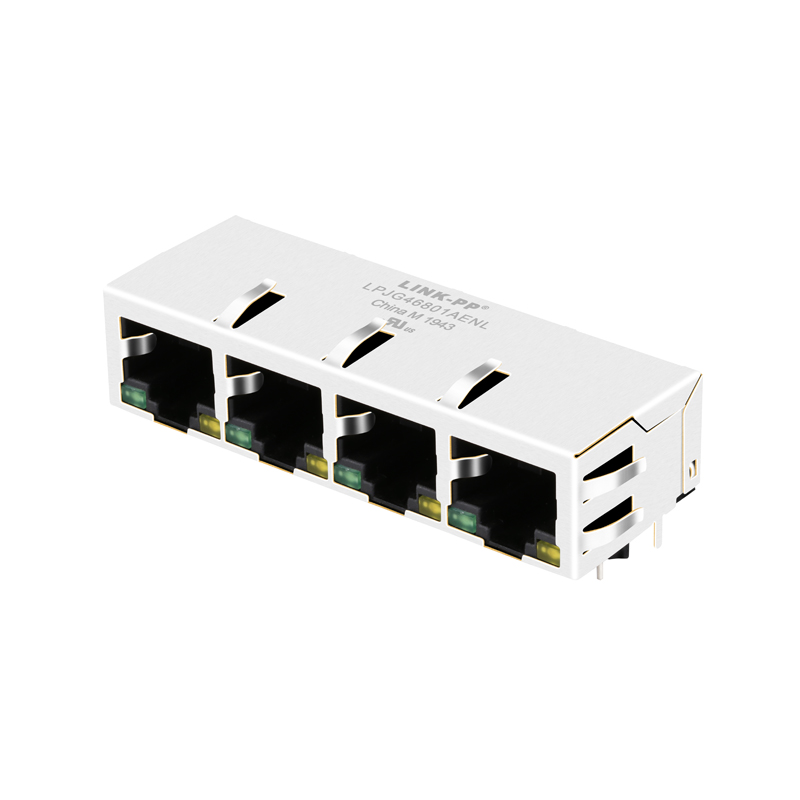

Product Image 1
Product Image 2
📋
Specification
Model NumberLPJG46801AENL
Part StatusActive
Connector TypeRJ45
Applications10/100/1000 Base-T, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Contact Finish Thickness6.00µin (0.152µm)
LED ColorGreen - Yellow
Number of Cores per Jack8
ShieldingShielded, EMI Finger
Number of Ports1X4 Port
FeaturesBoard Guide
Tab DirectionDown
Contact FinishGold
Configuration RX/TXT,C
Turns Ratio RX/TX1CT:1CT
Operating Temperature0°C ~ 70°C
🚚
Packing & Delivery
The Part Number package: 20 pcs in 1 tray, 20 tray in 1 carton, which is 37*30*30cm, 10KGS (400pcs) of each carton.
Packing Image
⚙️
Features & Applications

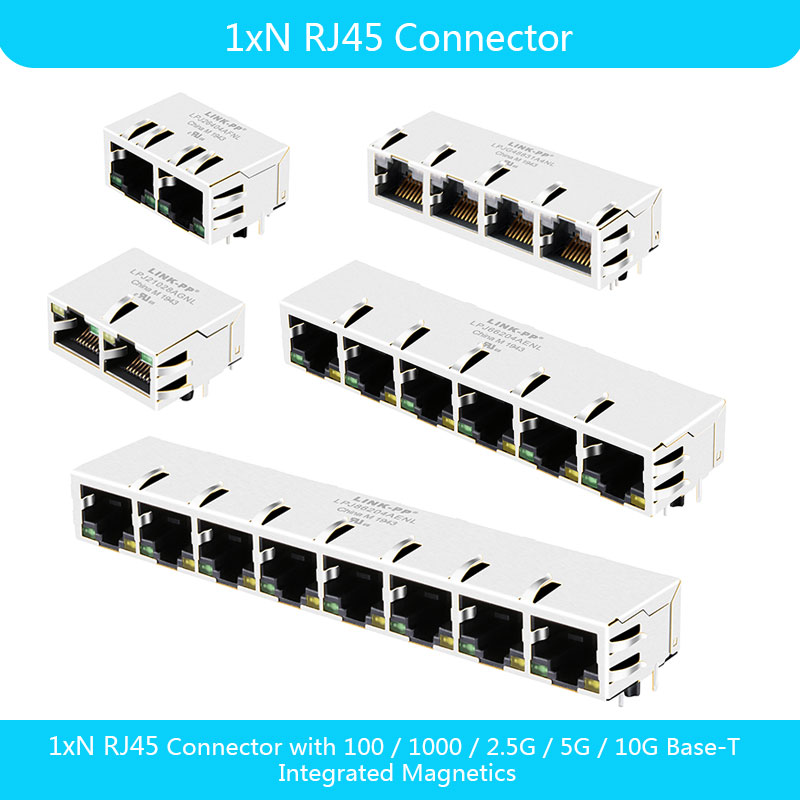

100 / 1000 / 2.5G / 5G / 10G Base-T 1xN RJ45 Connector
Technical Drawing
Applications: Suitable for industrial temperatures from –40 °C up to +85 °C. Compatible to Industrial Ethernet systems like EtherCAT or Profinet. Compliant with most IC’s for Ethernet applications such as Microchip, Broadcom, Marvell, Hubs, Routers, Switches, IP cameras, IoT applications.
🔍
Technical Details
Detail 1
Detail 2
Detail 3
Detail 4
Detail 5
❓
Frequently Asked Questions
How do you guarantee the quality of your RJ45 connectors?
We maintain strict quality control by providing a pre-production sample before mass production and conducting a final inspection before every shipment to ensure compliance with all standards.
What types of magnetic components can I purchase from you?
Our main product range includes RJ45 Magnetic connectors, Lan transformers, Modular Jacks, and RJ11 Connectors, all designed for high-performance networking applications.
Why should I choose your products over other suppliers?
With nearly two decades of specialization in RJ45 connectors and LAN transformers, we are certified by SGS, ISO9001:2008, UL, REACH, and CE. We possess a high productive capacity of up to 30,000K per week to meet large-scale demands.
What are the primary applications for these connectors?
Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems.
What is the standard packaging and delivery weight?
Standard packaging consists of 20 pcs per tray and 20 trays per carton (400pcs total). Each carton measures 37x30x30cm and weighs approximately 10KGS.
What international standards and certifications do you comply with?
Our manufacturing facilities and components are certificated by ISO9001, RoHS, REACH, CE, and UL, ensuring they meet global safety and environmental requirements.
