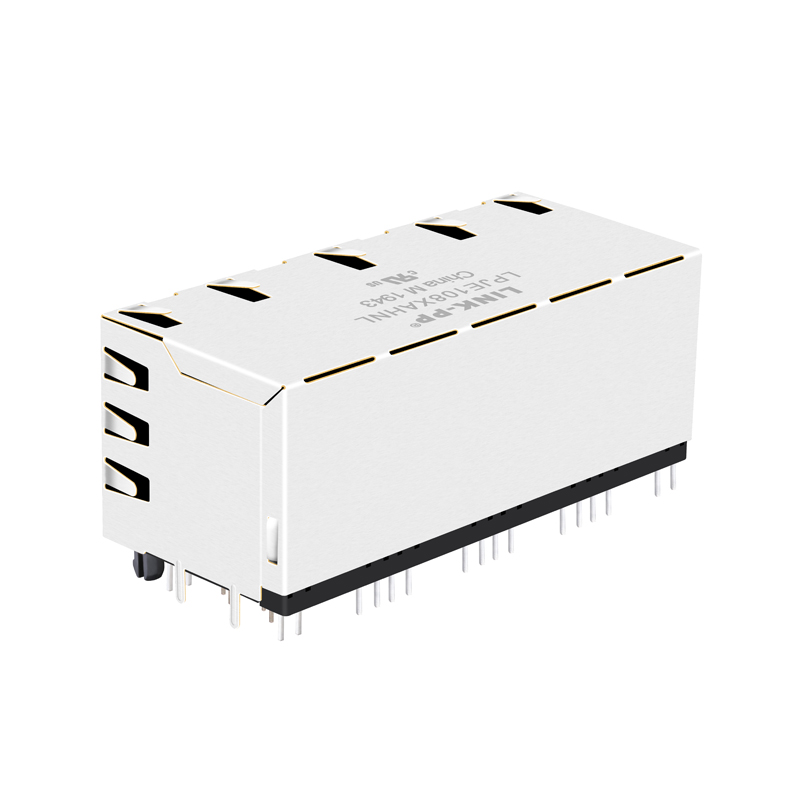

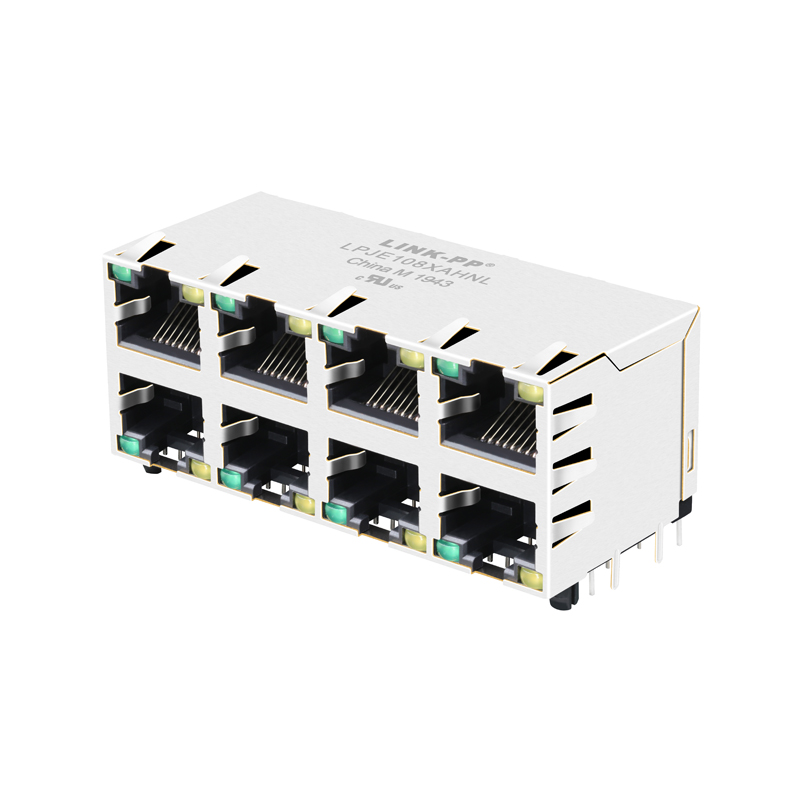

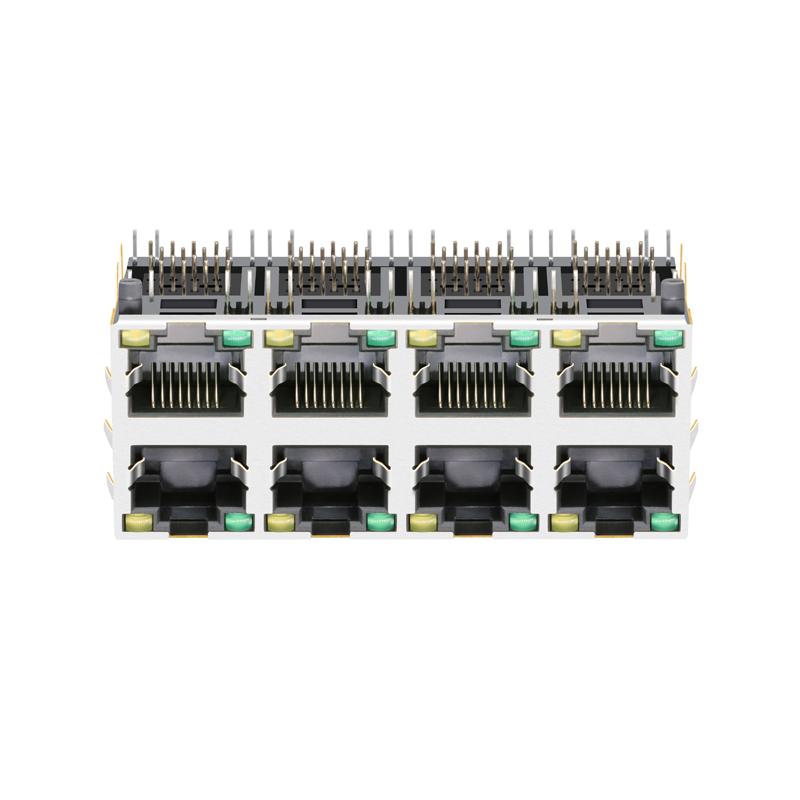

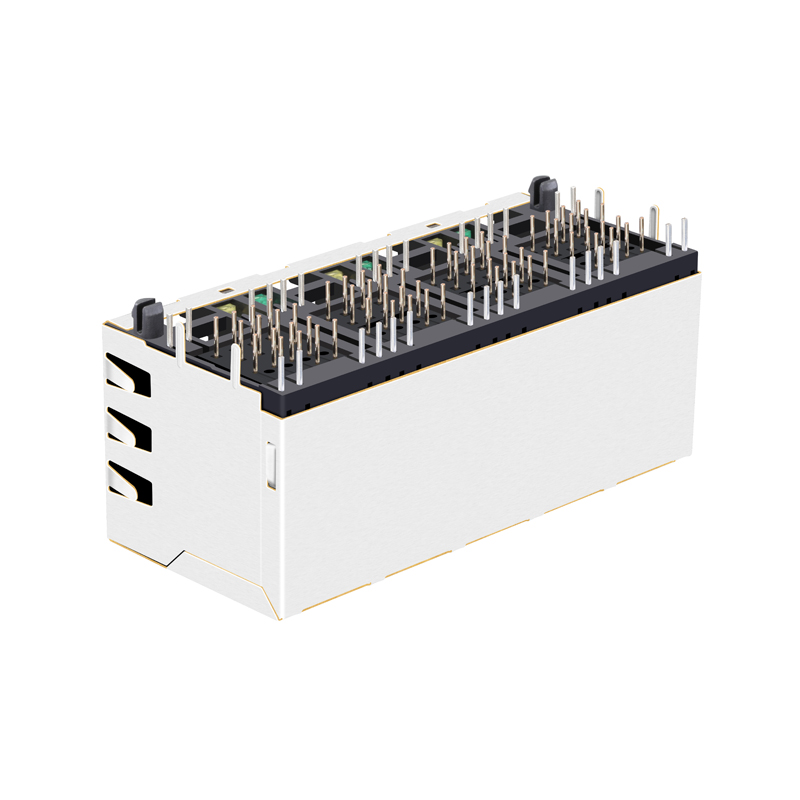

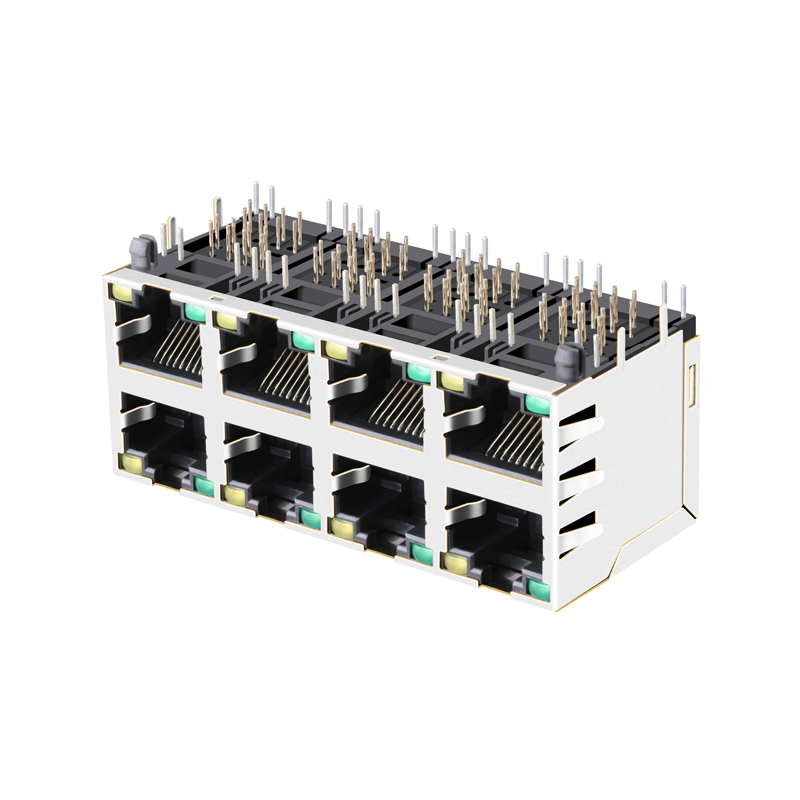

| Item | RJ45 Female Connector |
| Part Number | LPJE108XAHNL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non-PoE) |
| Number of Ports | 2x4 Port |
| Speed | Without Magnetics |
| Latch | Both (Up & Down) |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With |
| LED Option | With |
| PCB Material | FR4 |
| PCB Retaining Post | T POST |
| Operating Temperature | -40℃ TO 85℃ |
| Bst Circuit | Yes |
| Auto-MDIX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we serve as a global supplier to OEMs, contract manufacturers, and CEMs, supporting over 10,000 customers in more than 200 countries.
By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming a world-leading provider of Ethernet RJ45 connectors and LAN transformer solutions.
