LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
1 / 5
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector
LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

LPJE101AHNL Single Port Without Magnetics Through Hole MagJack Short RJ45 Connector

Send Inquiry

Product Description

📋 Product Description

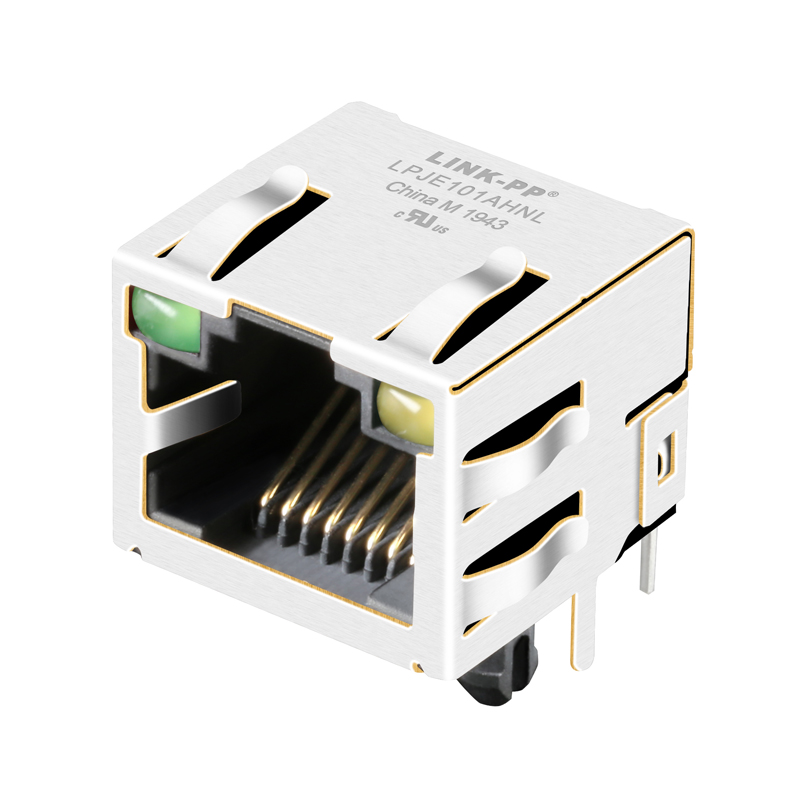

Product Image 1

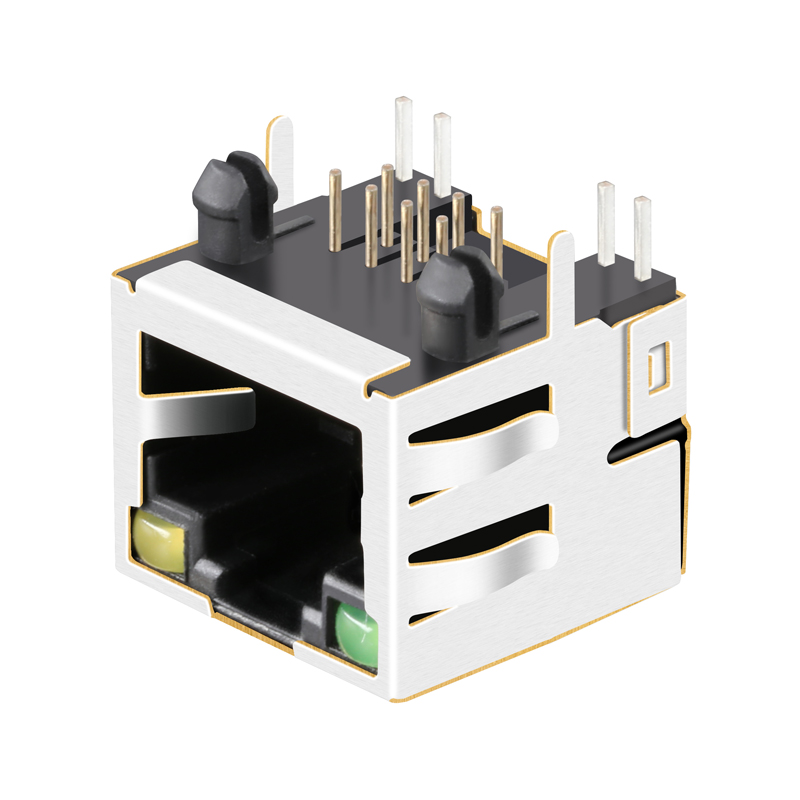

Product Image 2
⚙️ Specification
Model Number LPJE101AHNL
Part Status Active
Connector Type RJ45
Applications Without Magnetics
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Contact Finish Thickness 6.00µin (0.152µm)
LED Color Yellow/Green
Shielding Shielded, EMI Finger
Number of Ports Single Port
Features Board Guide
Tab Direction Up
Contact Finish Gold
Configuration RX/TX T,C
Turns Ratio RX/TX 1CT:1CT
Operating Temperature -40°C ~ 85°C
📦 Packing & Delivery
🔹
Package: Tray
🔹
Carton size: 54.5*28.5*27cm
🔹
G.W/carton: 13.1kg
🔹
Qty/carton: 3000pcs
🔹
SPQ: 100pcs
🔹
N.W/pcs: 0.004kg
Packaging
🏭 Facility & Production

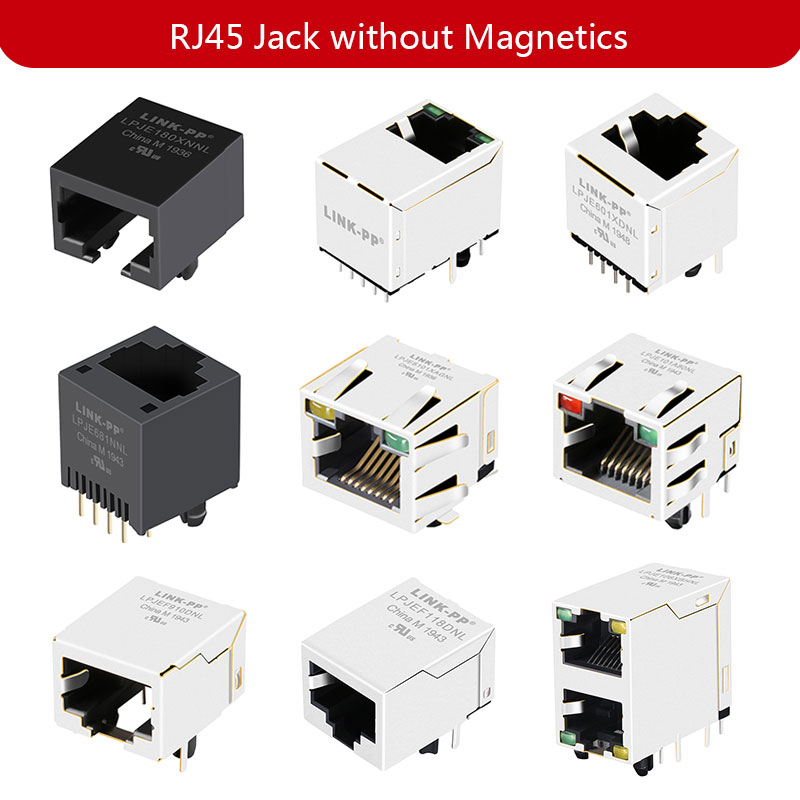

Factory 1
Factory 2
Factory 3
Factory 4
Factory 5
Factory 6
❓ Frequently Asked Questions
1. What is the application of the LPJE101AHNL connector?
The LPJE101AHNL is a single-port RJ45 connector designed for applications that do not require internal magnetics, providing a robust interface for networking hardware.
2. Does this RJ45 connector support industrial temperature ranges?
Yes, it is designed to operate efficiently within a temperature range of -40°C to 85°C, making it suitable for both commercial and industrial environments.
3. What kind of shielding does this product provide?
This connector is fully shielded and features EMI fingers to minimize electromagnetic interference and ensure signal integrity.
4. What is the mounting and termination style?
It uses through-hole mounting with a 90-degree right-angle orientation and is secured via solder termination.
5. How is the product packaged for bulk shipment?
The standard packaging is in trays, with 100 pieces per SPQ and 3000 pieces per carton, ensuring safety during transport.
6. What is the contact finish of the LPJE101AHNL?
The contacts feature a gold finish with a thickness of 6.00µin (0.152µm) for excellent conductivity and corrosion resistance.
