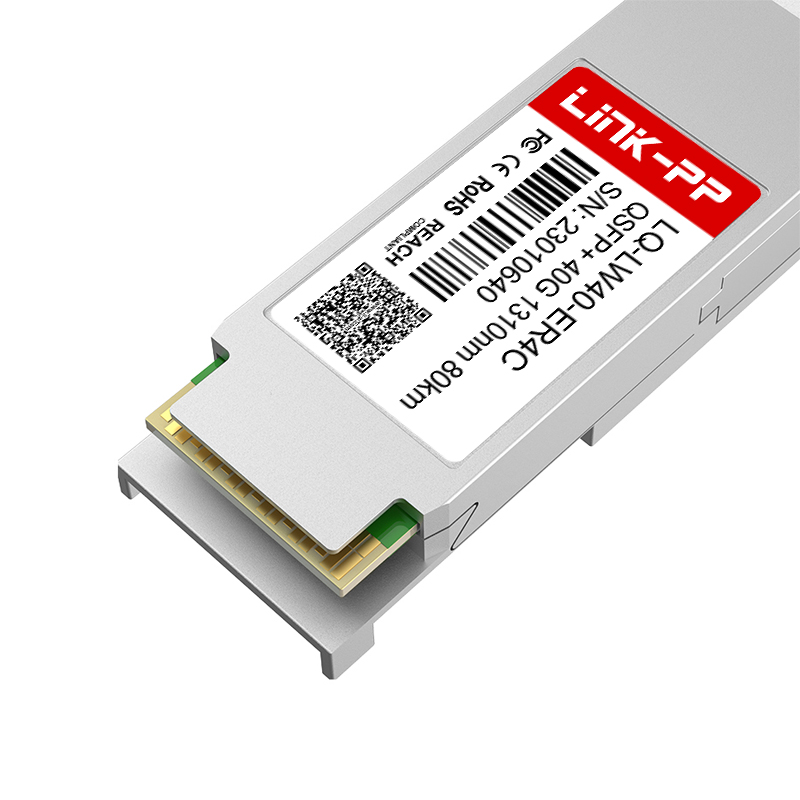

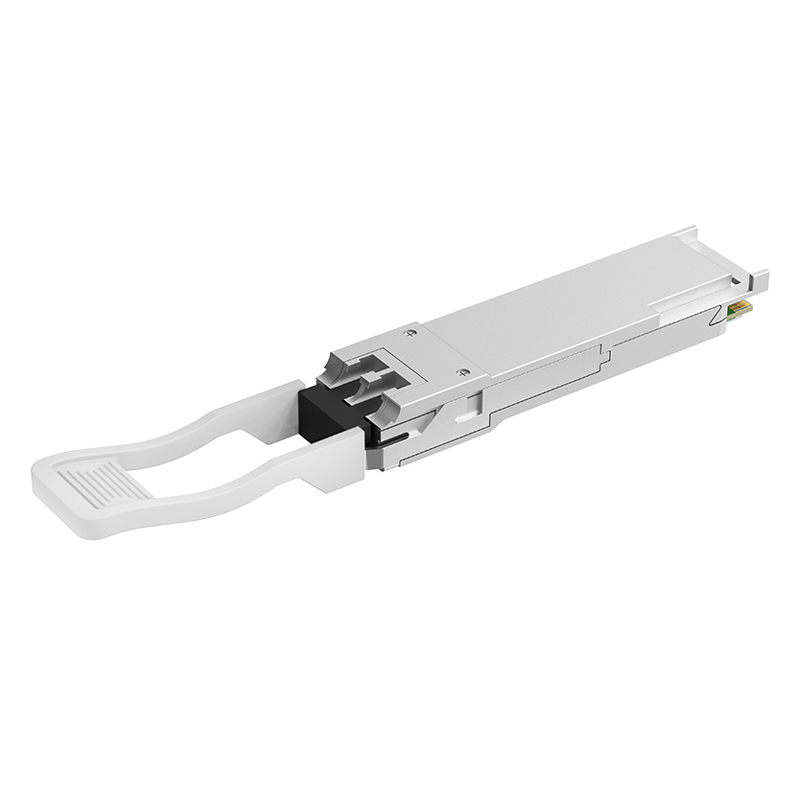

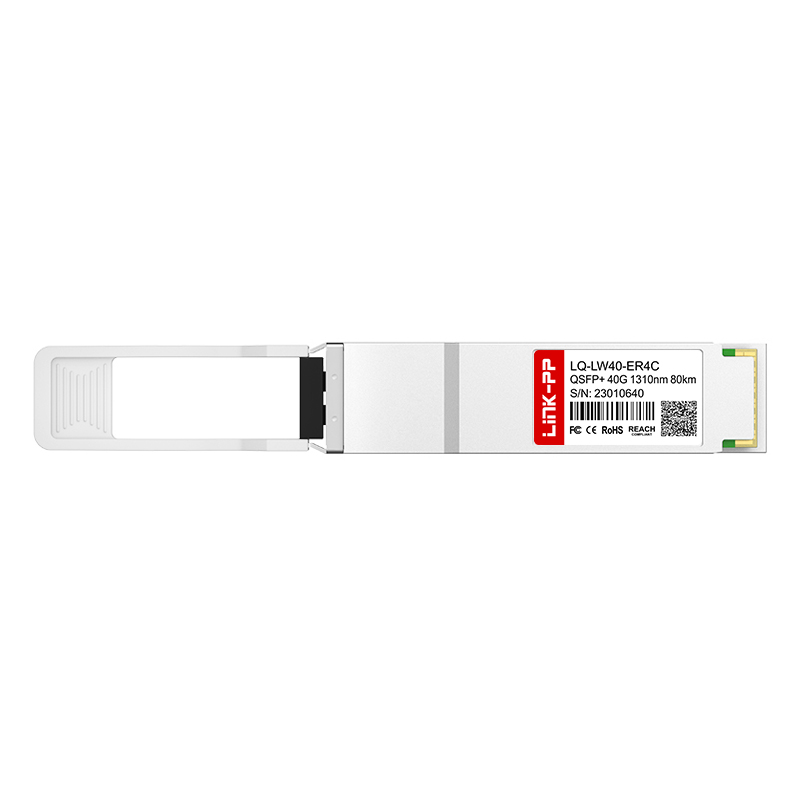

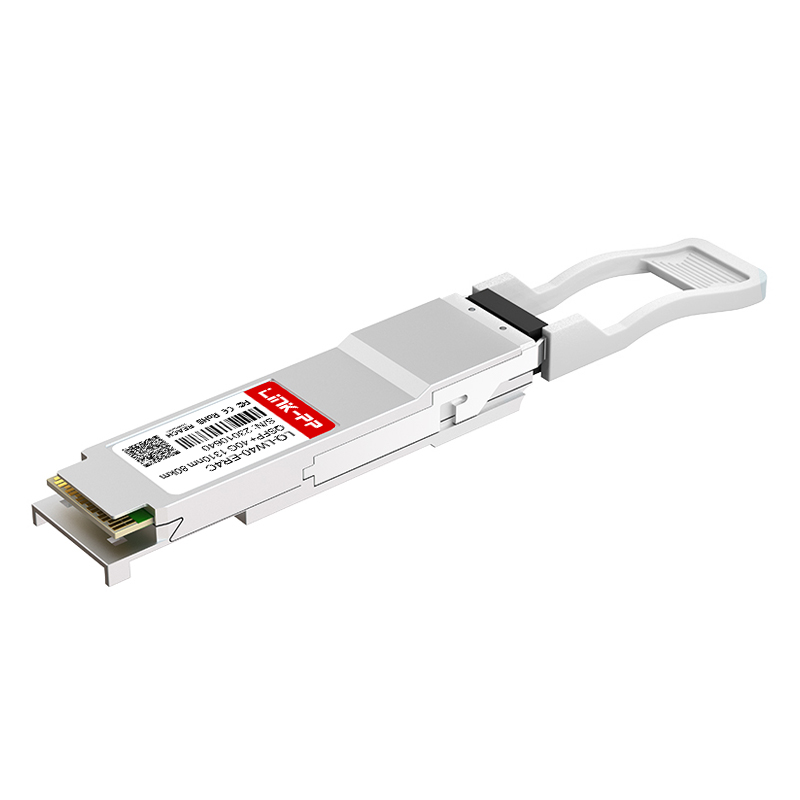

| Item | 40G QSFP+ Module |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 40G |
| Wavelength | 1310nm |
| Max Cable Distance | 80KM |

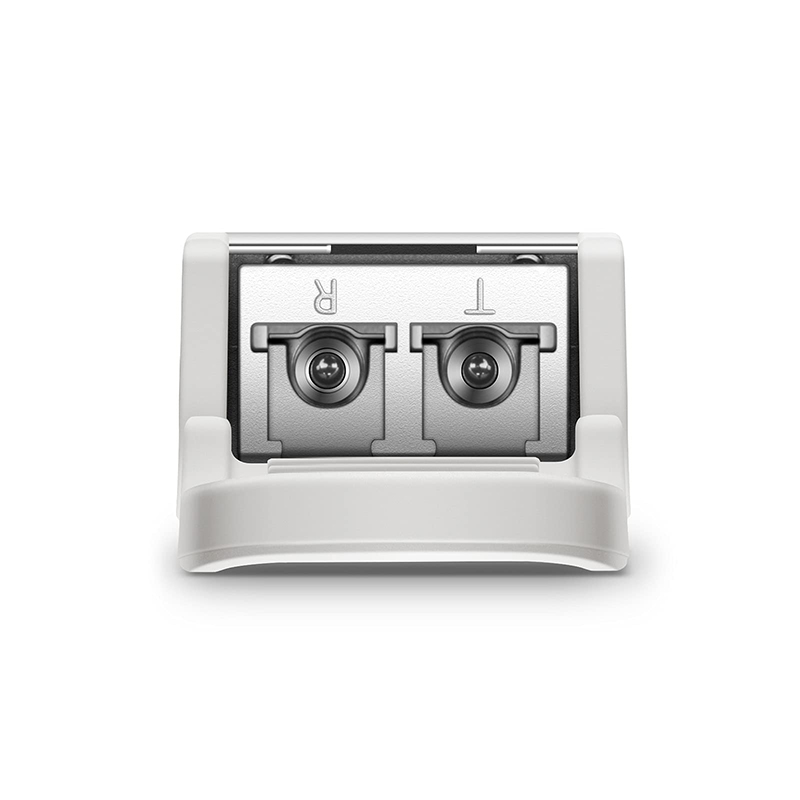

| Connector | Duplex LC |
| Media | SMF |
| Optical Component | EML/PIN |
| TX Power | 1~6dBm |
| Receiver Sensitivity | <-25dBm |
| Receiver Overload | -8dBm |
| Power Consumption | ≤4.5W |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | QSFP+ MSA, IEEE 802.3ba Compliant |
| Warranty | 5 Years |
| Sample | Available |
End-to-end DWDM solutions covering almost all optical devices - from active modules to passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.
High-speed optical modules ranging from 10G to 800G, providing high-quality interconnection solutions to meet the demand of mass data transmission in modern data centers.
High reliability products with mature laser and mainstream chip solutions. Includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
