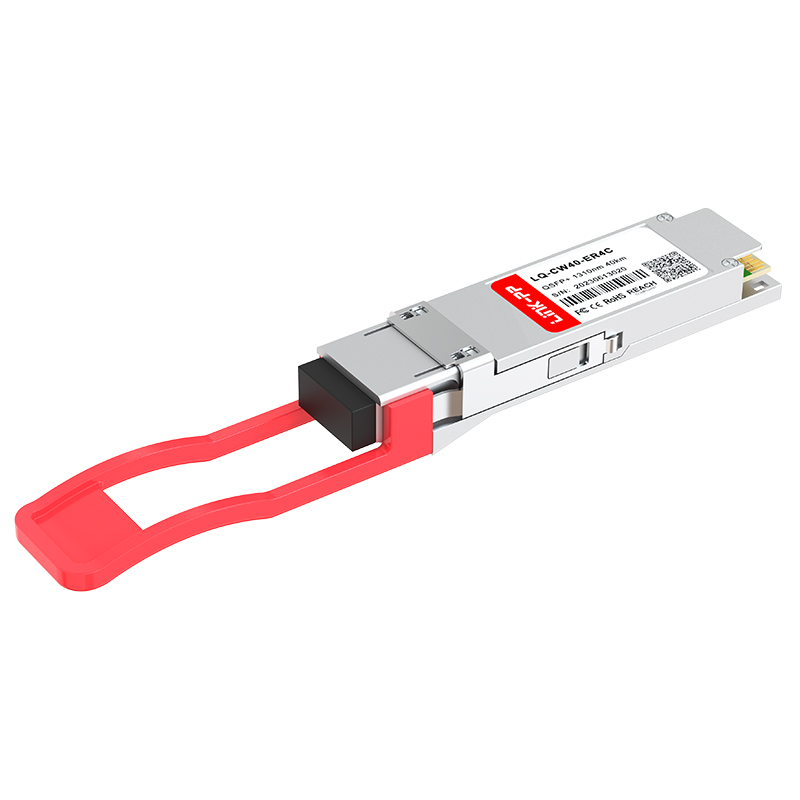

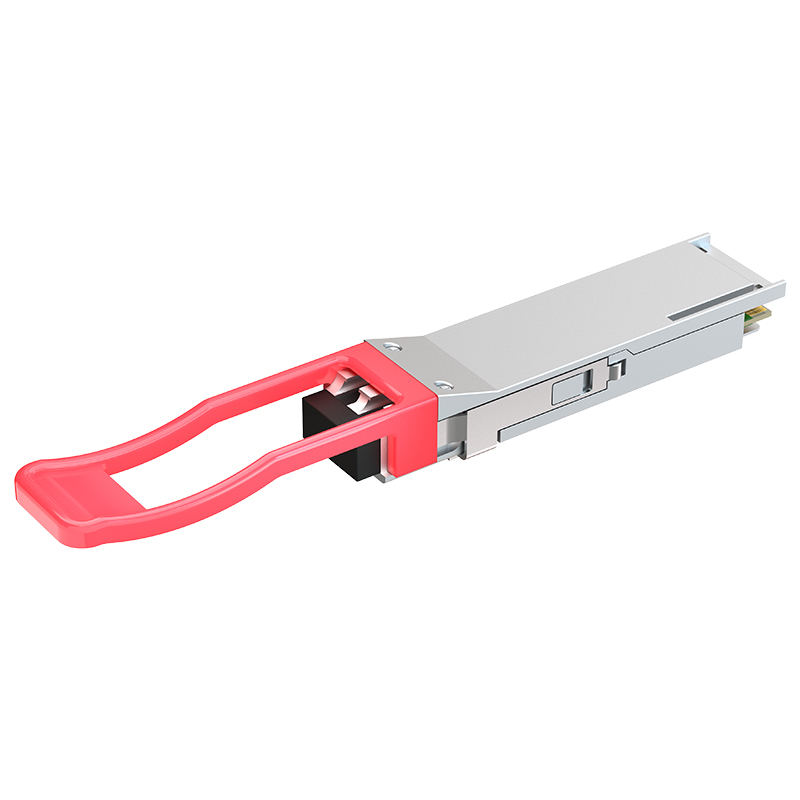

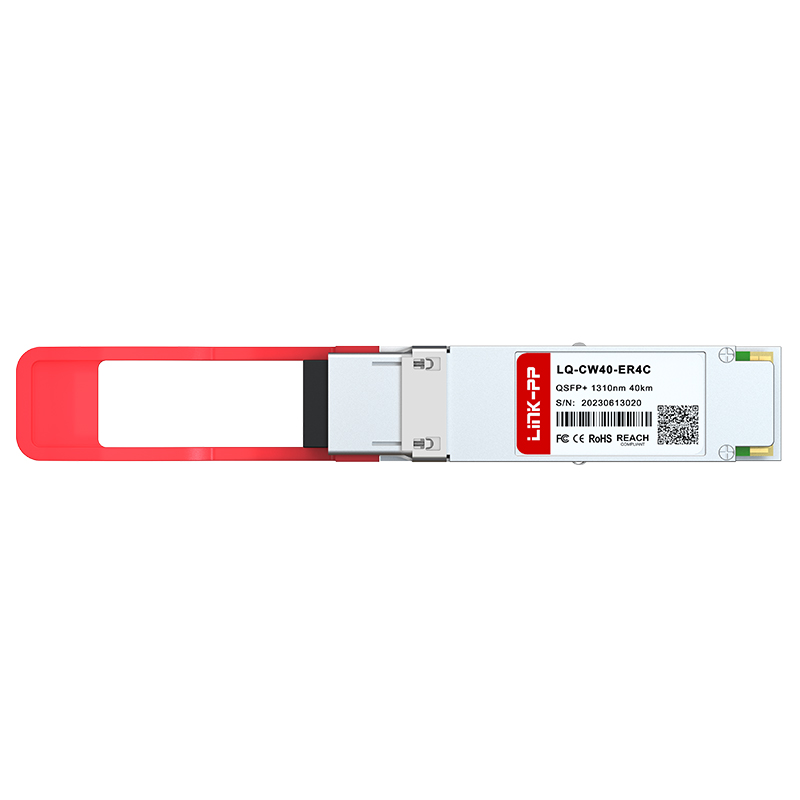

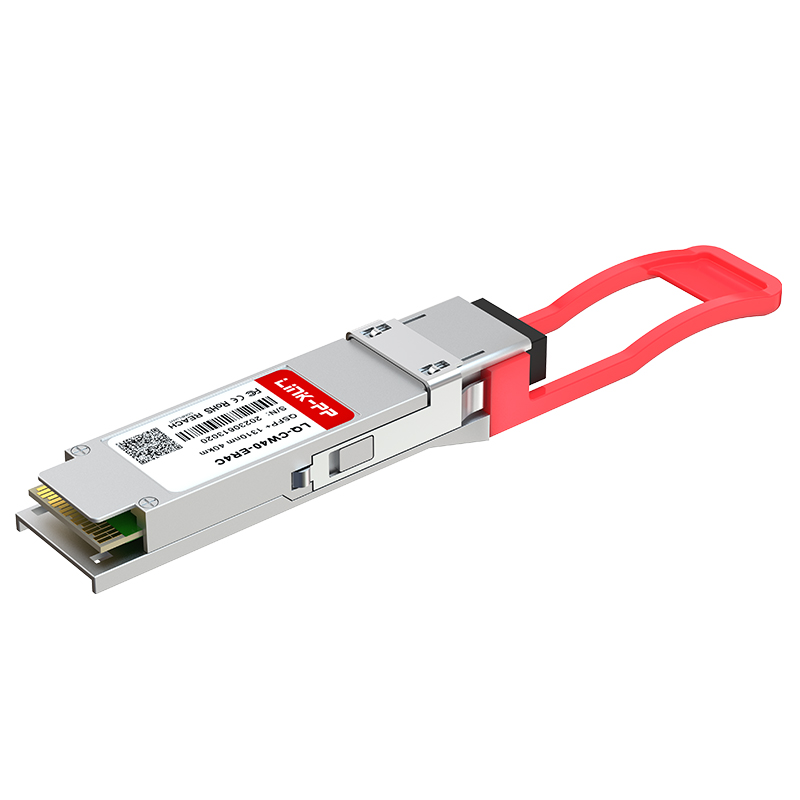

| Item | 40G QSFP+ Module |
| Part Status | Active |
| Form Factor | QSFP+ |
| Max Data Rate | 40G |
| Max Cable Distance | 40km |
| Wavelength | 1310nm |

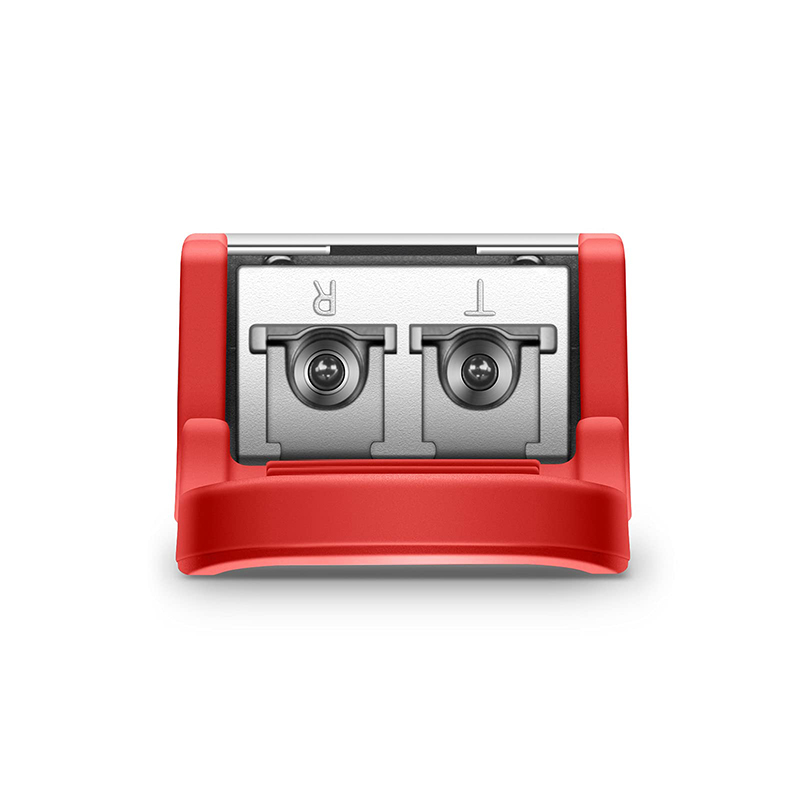

| Connector | Duplex LC |
| Media | SMF |
| Optical Component | DFB/APD |
| TX Power | -2.7~4.5dBm |
| Receiver Sensitivity | <-21.2dBm |
| Receiver Overload | -4.5dBm |
| Powerbudget | 18.5dB |
| Power Consumption | ≤3.5W |
| DDM/DOM | DDM Supported |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | OTN OTU3, 40G Ethernet, SATA/SAS3, MSA Compliant |
| Warranty | 5 Years |
Specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. The facility owns advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, the production center currently employs around 2000 staff. With a productive capacity of 3000K per month, delivery is ensured within short lead times.
The company provides a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks.
