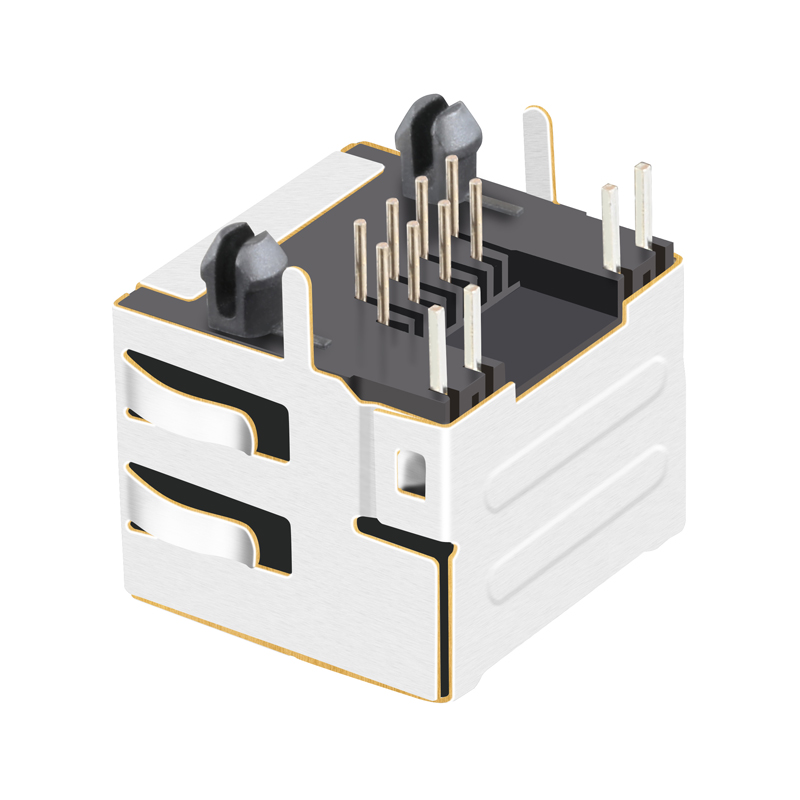

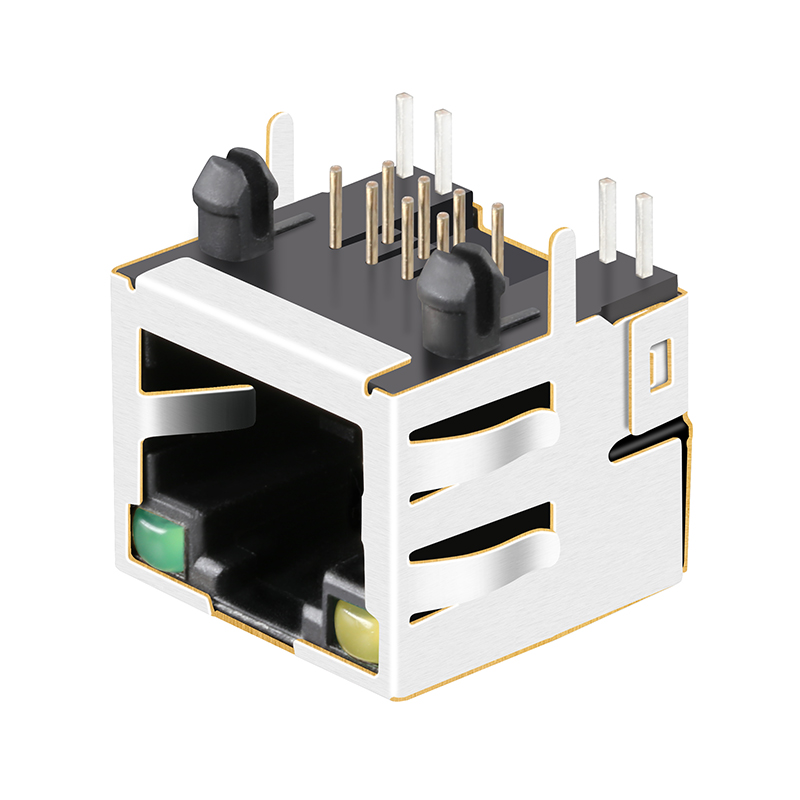

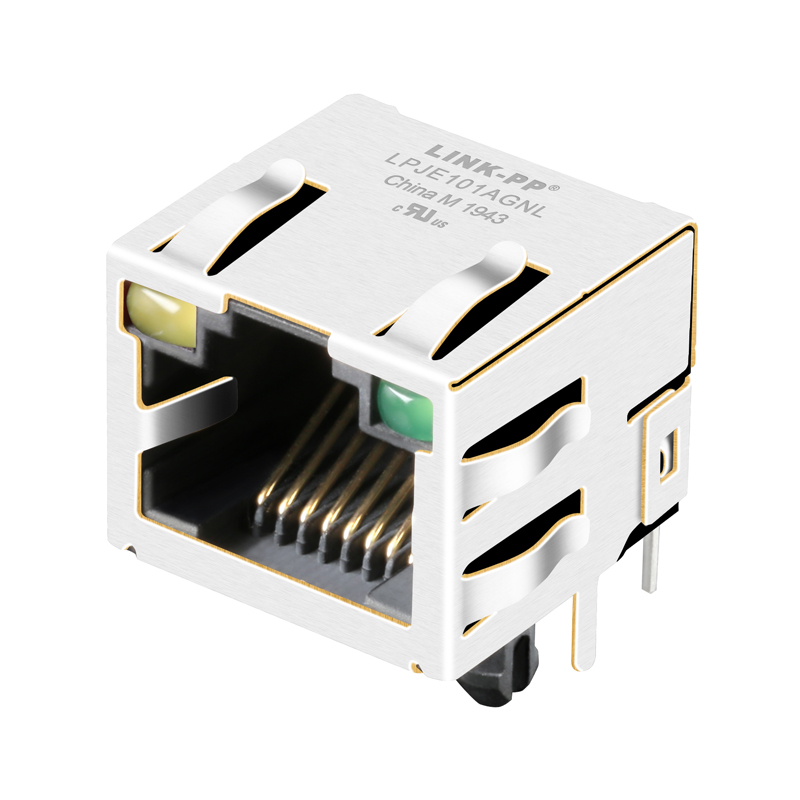

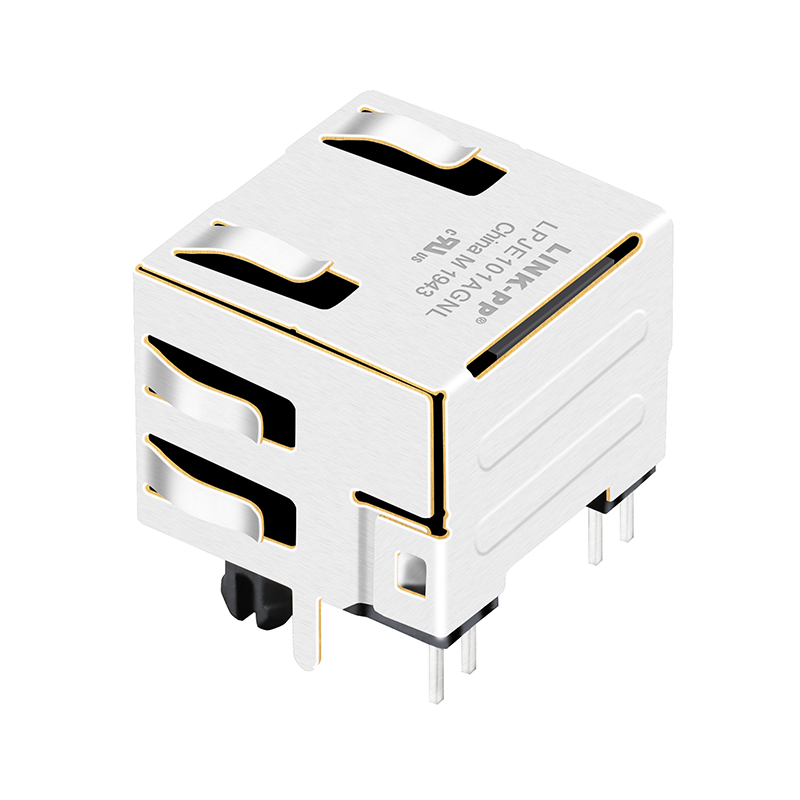

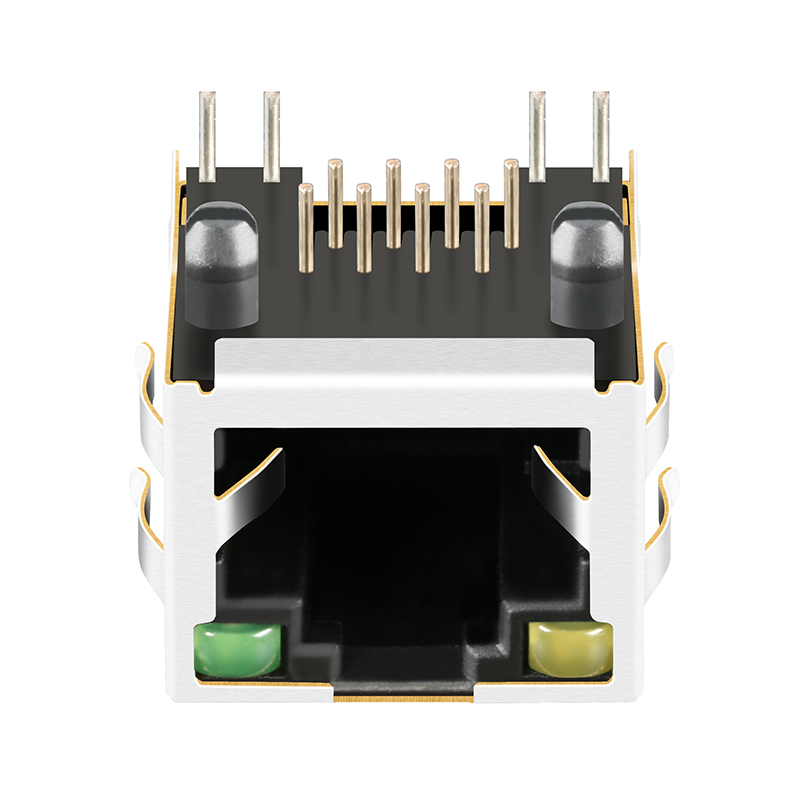

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

1 / 5

2-406549-1 Shielded 1 Port 8P8C Amp RJ45 Connector

Send Inquiry

Product Description

Specifications

Model Number	LPJE101AGNL
Part Status	Active
Connector Type	RJ45
Applications-Lan	-
Mounting Type	Through Hole
Orientation	90° Angle (Right)
Termination	Solder
Contact Finish Thickness	6.00µin (0.152µm)
LED Color	Yellow/Green
Number of Cores per Jack	-
Shielding	Shielded
Number of Ports	Single Port
Features	Board Guide
Tab Direction	Up
Contact Finish	Gold
Configuration RX/TX	T,C
Turns Ratio RX/TX	1CT:1CT
Operating Temperature	-40°C ~ 85°C

Packing & Delivery

The Part Number package: 100 pcs in 1 tray, 3000 tray in 1 carton, which is 54.5*28.5*27cm, 13.1KGS (3000pcs) of each carton.

Production & Quality Display

Key Characteristics

Main Features:
• RJ45 Connector with integrated transformer / common mode choke
• Power over Ethernet up to 50 Watt and speeds up to 10 Gbit/s
• Available in SMT, THT and THT with USB
• Compliant with standards: IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at and upcoming IEE 802.3bt
• HPLE products: Improved Common Mode Rejection due to additional NiZn cores
