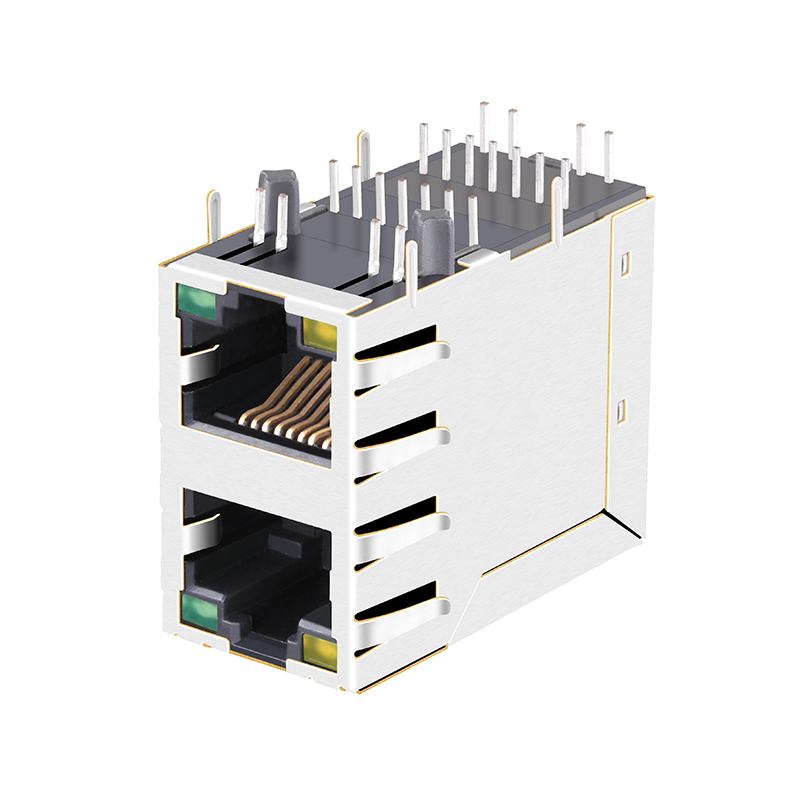

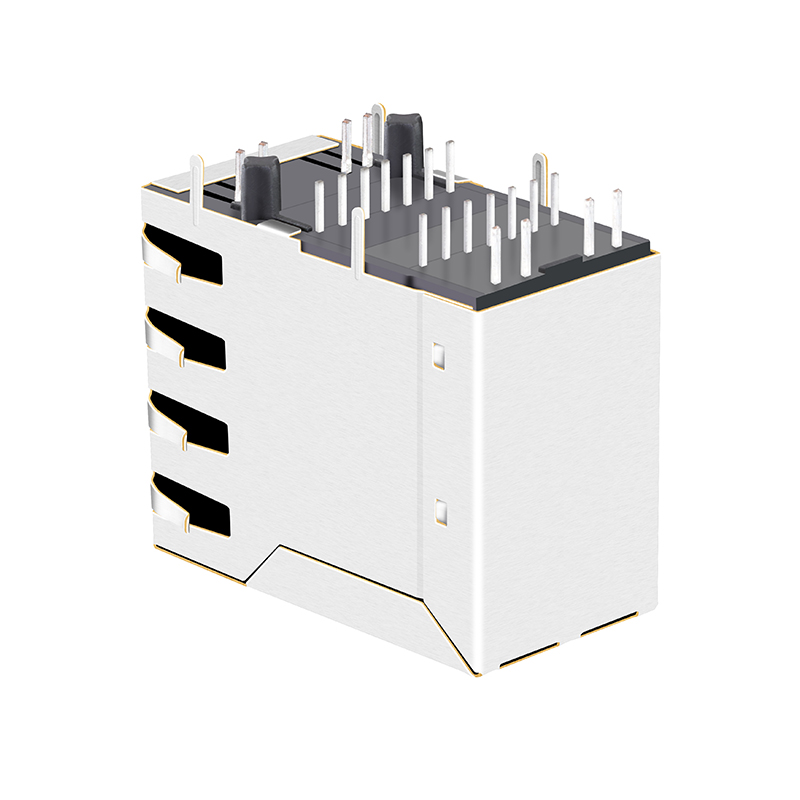

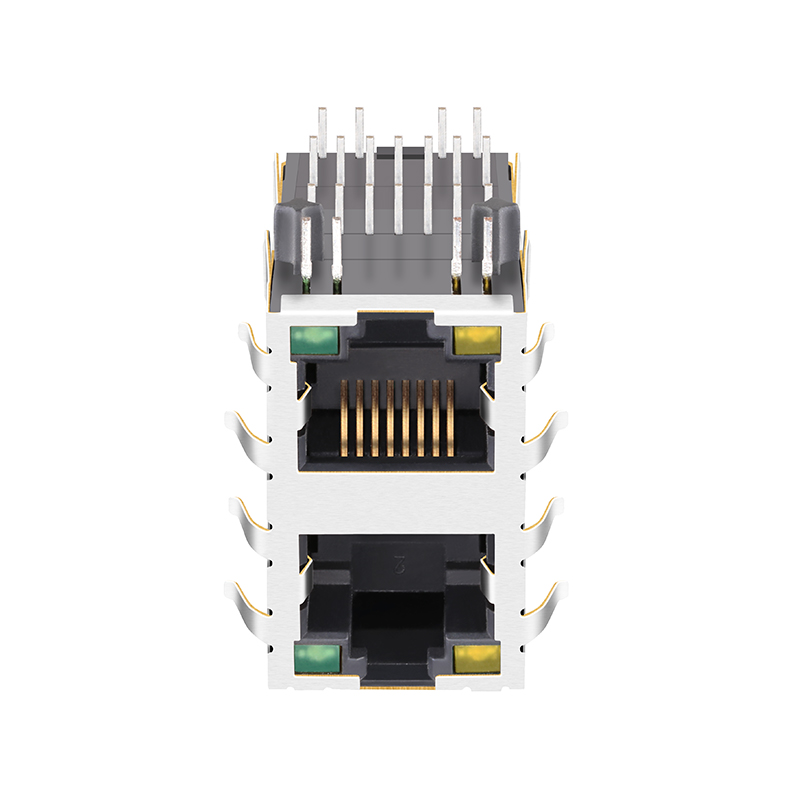

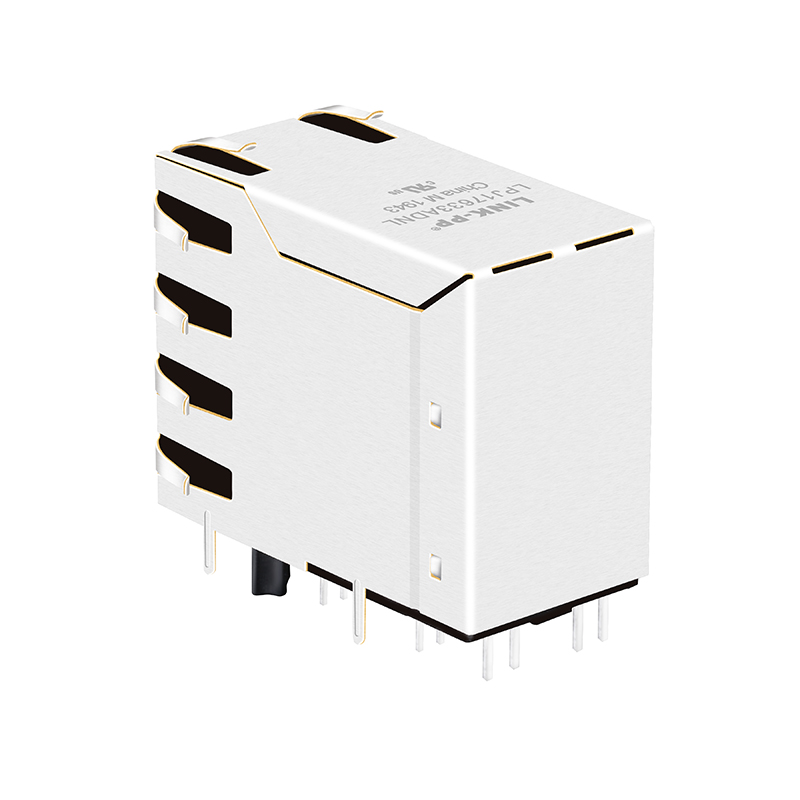

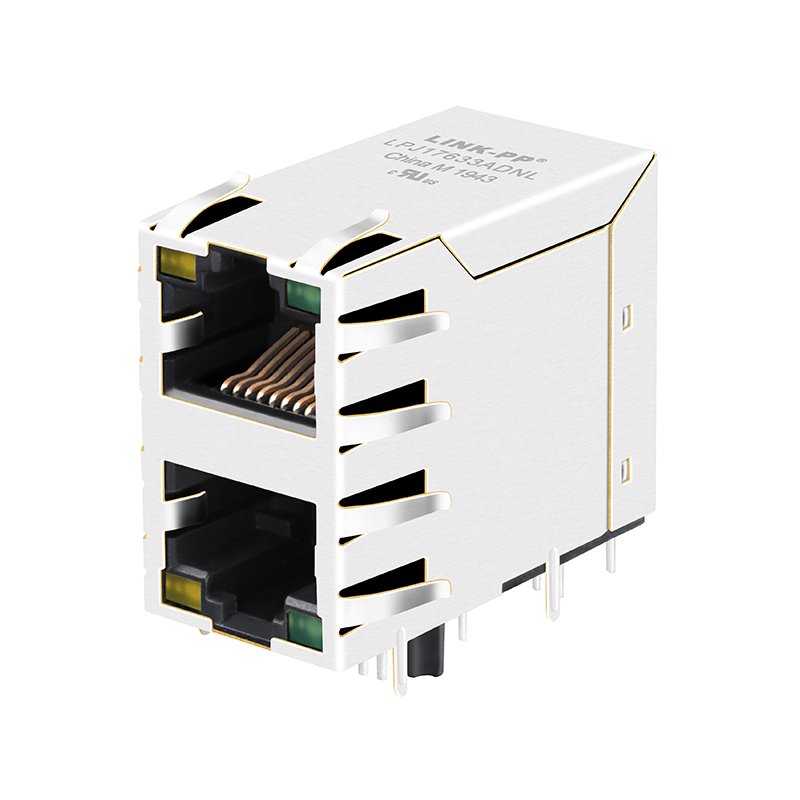

0845-2D1T-H5 0845-2D1T-S4 RM3-ZZ-0020 10/100 Base-T 2 Port 8P8C RJ45 Modular Jack
| Part Number |
0845-2D1T-H5 / 0845-2D1T-S4 / RM3-ZZ-0020 |
| Application-LAN |
ETHERNET (NON PoE) |
| AutoMDX |
YES |
| Bst Circuit |
YES |
| Configuration RX/TX |
T, C / T, C |
| Contact Mating Area Plating |
GOLD 6u"/15u"/30u" |
| Cores Per Port |
4 |
| LED Option |
Yellow/Green LEDS |
| Number of Ports |
2x1 Port |
| PCB Mount Angle |
SIDE ENTRY |
| Pin Type |
THT SOLDER |
| RoHS Compliant |
YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION |
| Speed |
10/100 Base-T Magnetics |
| Temperature Range |
-40 TO 85°C / 0 TO 70°C |
| Turns Ratio RX/TX |
1CT:1 / 1CT:1 |
Professional Certification
- ISO 9001:2008 Certified
- UL Certification
- REACH Certification
- RoHS Compliance
- Active Environmental Policy
100% Quality Guarantee
- Manufactured Under Strict Controls
- 100% Tested (Not Just Batch Tested)
- High-Level Industry Standard Compliance
- Quality Guarantee: 6 Years
Service Benefits
- Competitive Pricing Model
- Short Delivery Lead Time: 2-3 Weeks
- Free Samples Available
- Customized Designs for Specific Requirements
- Efficient Global Logistics Support
1. What is the transmission speed of the 0845-2D1T-H5 series?
This modular jack supports 10/100 Base-T Ethernet speeds with integrated magnetics.
2. Can this connector be used for Power over Ethernet (PoE) applications?
No, this specific model is designed for ETHERNET (NON-PoE) applications.
3. What are the operating temperature options for this component?
The product is available in two temperature ranges: industrial grade (-40 to 85°C) and standard commercial grade (0 to 70°C).
4. What type of LED indicators are integrated into the jack?
The connector features integrated Yellow and Green LEDs for status indication.
5. Is the product compliant with environmental standards?
Yes, it is RoHS compliant (RoHS-5 with lead in solder exemption) and meets REACH and ISO 9001:2008 standards.
6. What is the mounting orientation for this RJ45 jack?
This is a side entry (right angle) PCB mount jack using THT (Through-Hole Technology) soldering.
