China Manufacturer for PoE+ 2.5G Jack Connector RJ45 Socket

Product Description

RJ45 Connector Series
LAN Transformer Series
Send Inquiry To Get Latest Price List
Product Presentation 1
Product Presentation 2
Products Description
Item RJ45 Female Connector
Part Number LPJG47039AWNL
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(PoE+)
Number of Ports 2x4 Port
Speed 2.5G Base-T
Latch Both
Cores per Port 10
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs With
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0℃ TO 70℃
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C
Detail 1

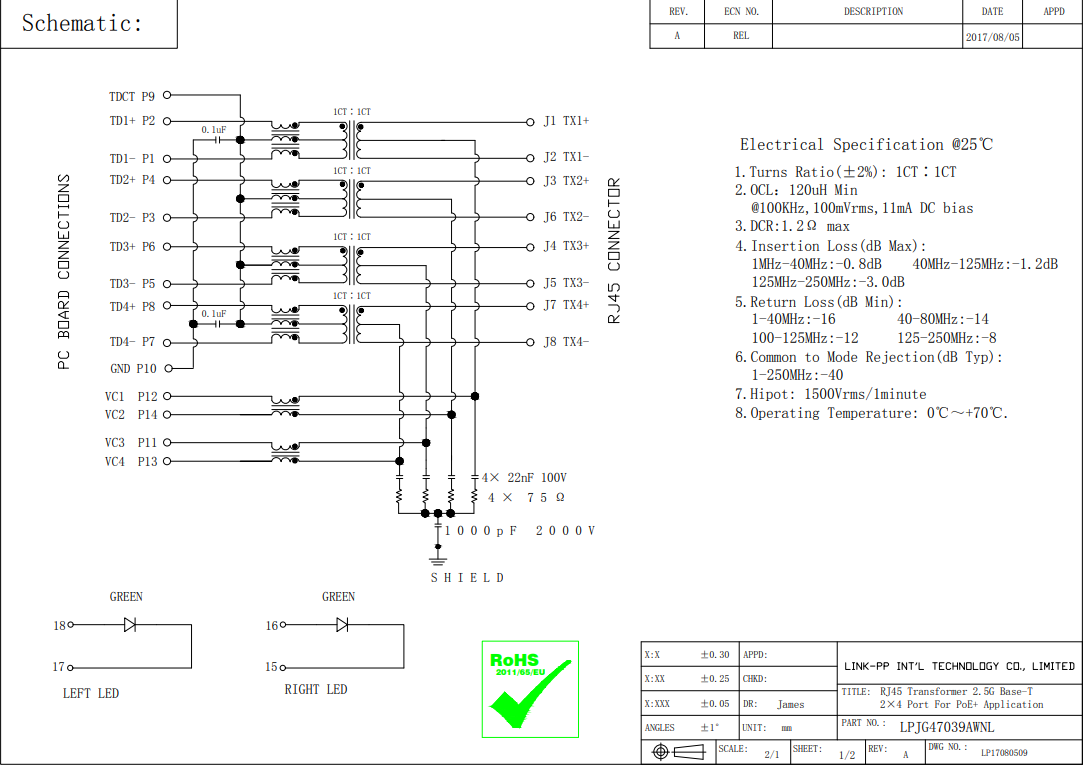

Detail 2

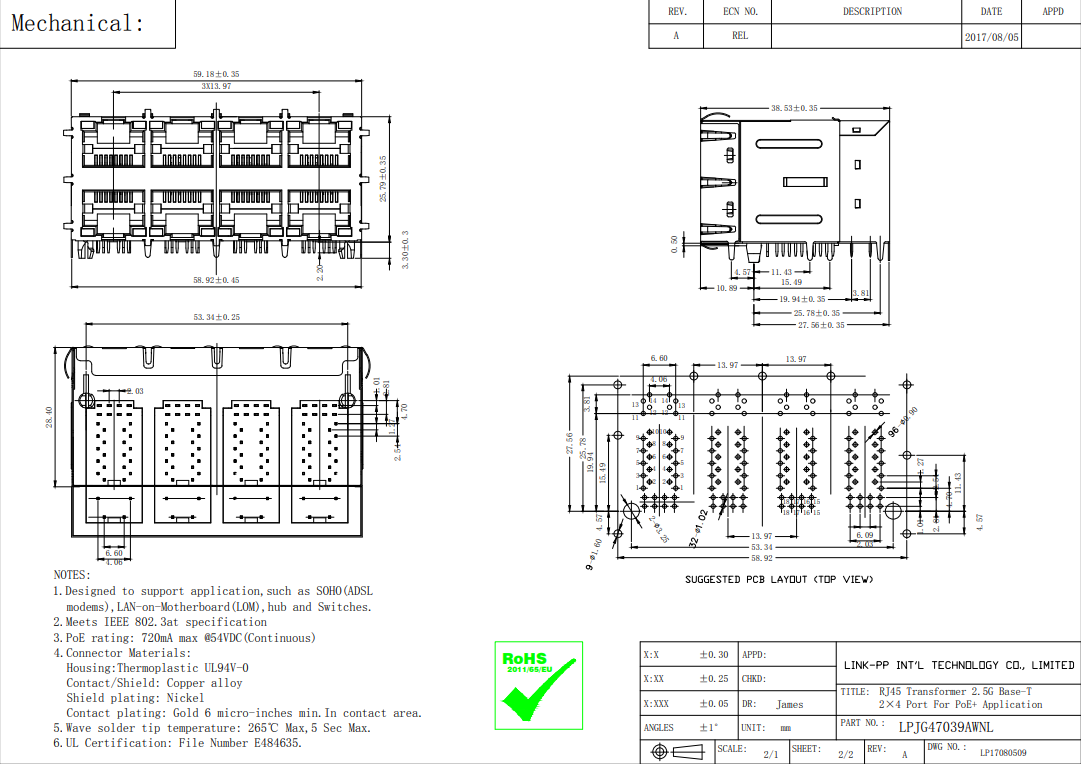

Detail 3

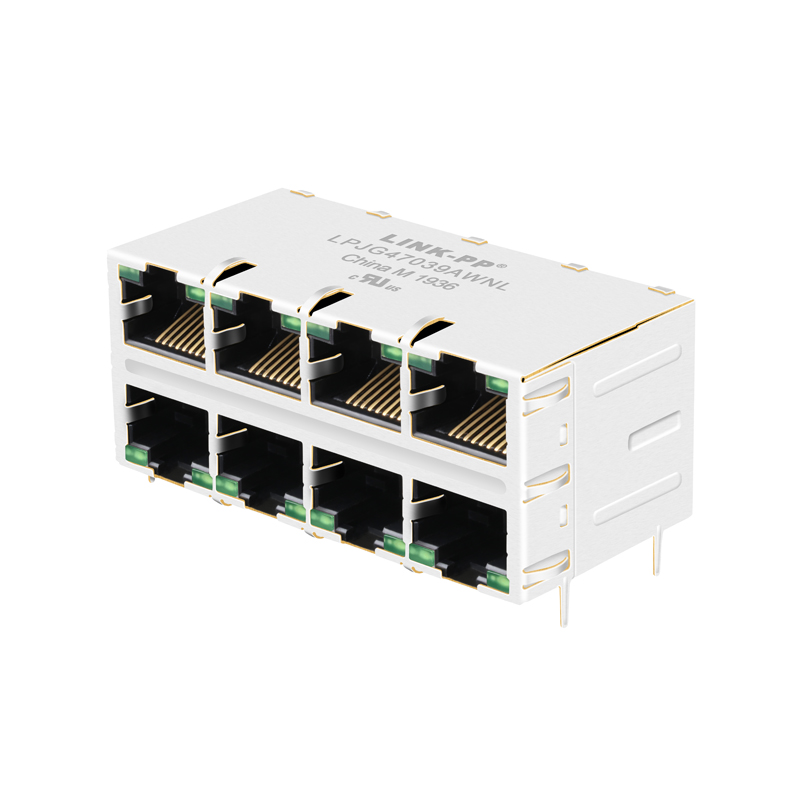

Detail 4

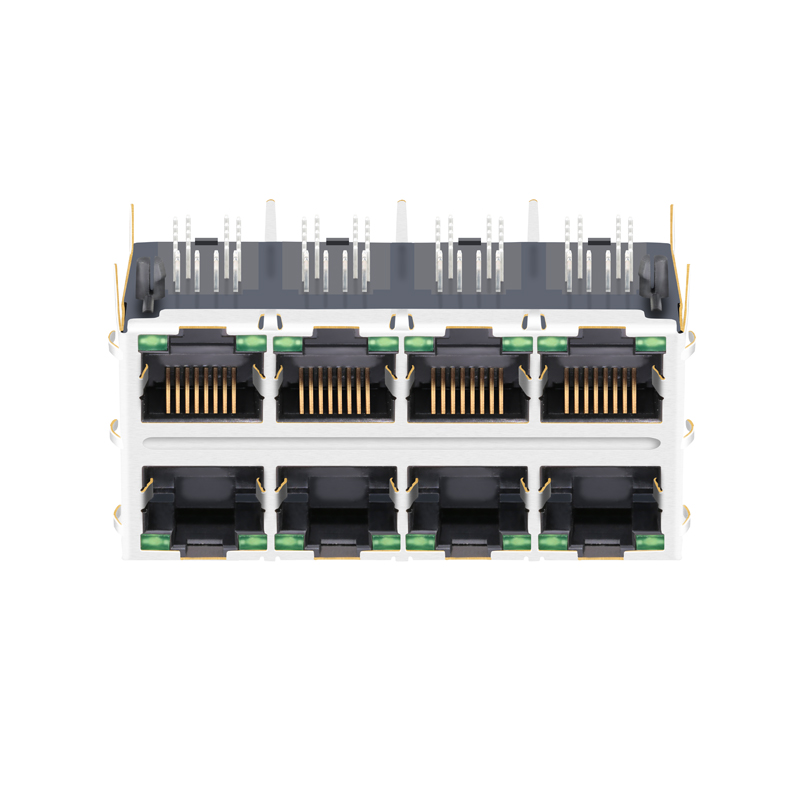

Detail 5

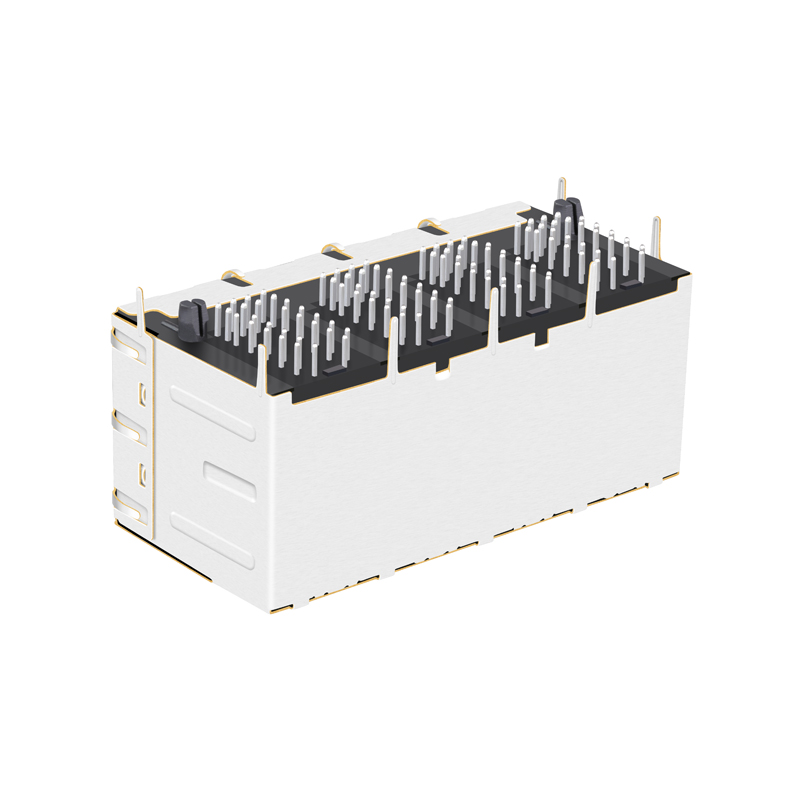

Detail 6

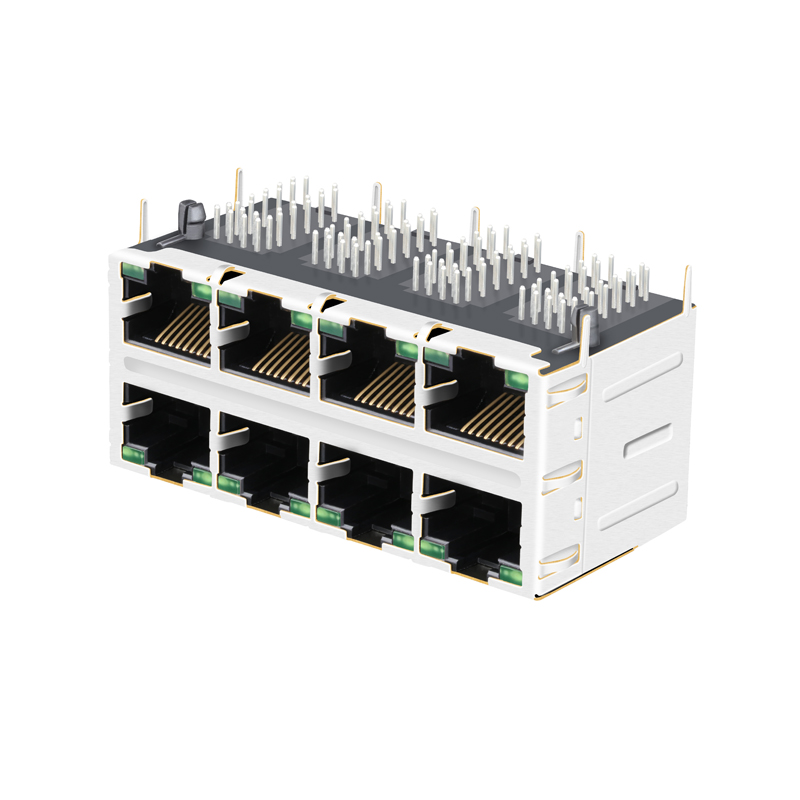

Detail 7

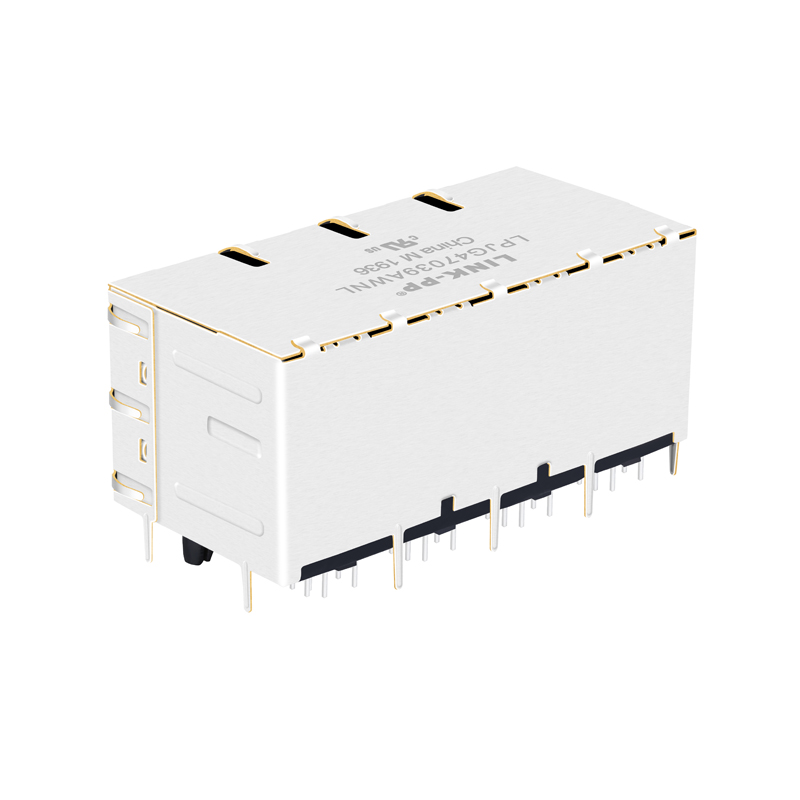

Detail 8
Detail 9
Product Diagram
Why Choose Us
Strength 1
Strength 2
Strength 3
Strength 4
Company Profile
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROHS, REACH, CE and UL, owning advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With the abundant productive capacity of 3000K per month, we are able to deliver the goods within a short time. Moreover, we can provide professional complete solutions for magnetic components and strong technical support as well.

Our main products include 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with 10/100/1000M magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformers, and ISDN, HDSL, ADSL and VDSL interface line transformers and splitters. Our products are widely used in networking and communication equipment such as HUBs, PC cards, Switches, Routers, PC Mainboards, SDH, PDH, IP Phones, and xDSL modems. We have exported our products to more than 30 countries and regions worldwide, covering Germany, France, England, USA, Singapore, Korea, Canada, and Japan. Our engineering staff is dedicated to identifying, developing, and manufacturing the optimal solutions for our customers' unique requirements.
Factory Area 1
Factory Area 2
Factory Area 3
Factory Area 4
Frequently Asked Questions
Are you a manufacturer or a trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before placing a mass production order?
Yes, we can offer you free samples to test the quality, though the shipping cost will need to be covered on your end.
What is your typical delivery and lead time?
Items that are in stock are ready to ship immediately, while mass production orders generally take between 15 to 30 days.
What kind of after-sales service and support do you provide?
We provide a one-year guarantee period on our products along with 24-hour online technical support.
Do you support OEM/ODM customized orders?
Yes, we support OEM/ODM projects. Please send us your requirements so we can discuss the details.
What are your core advantages in this industry?
We have 19 years of professional production experience and have been a trusted partner to major international clients for many years.
