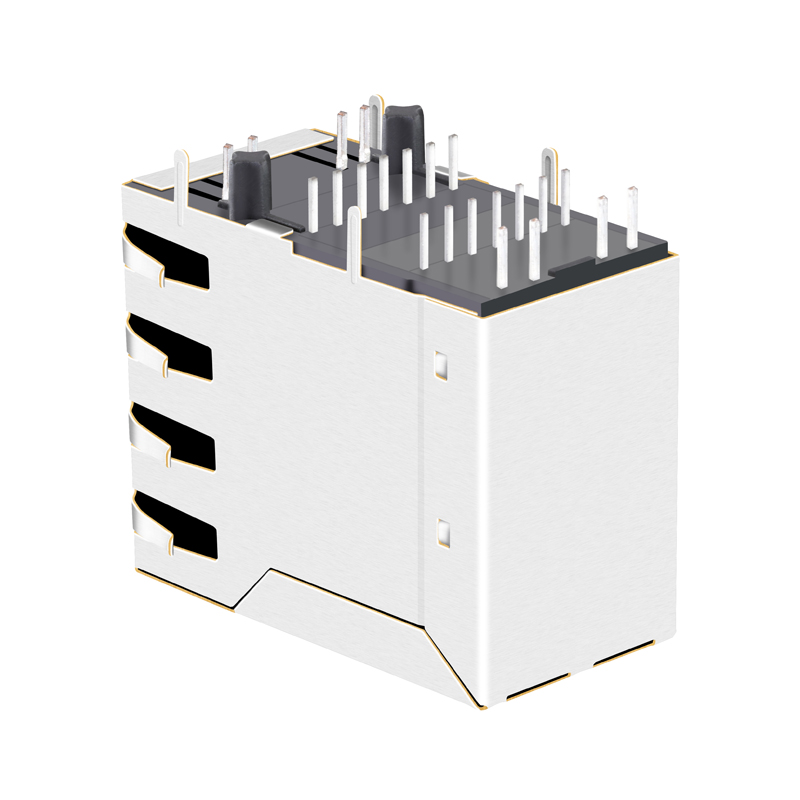

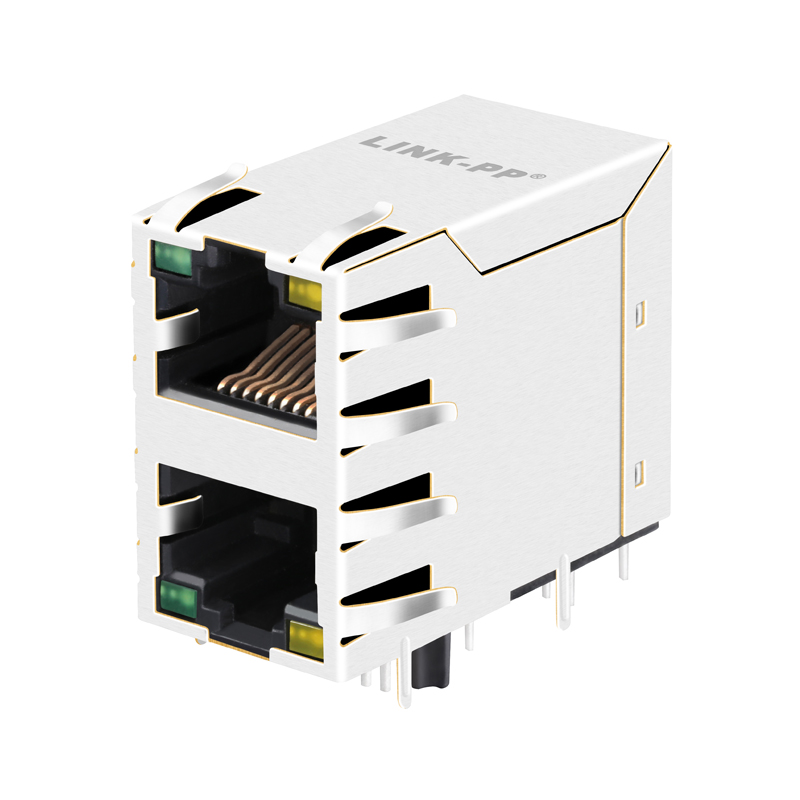

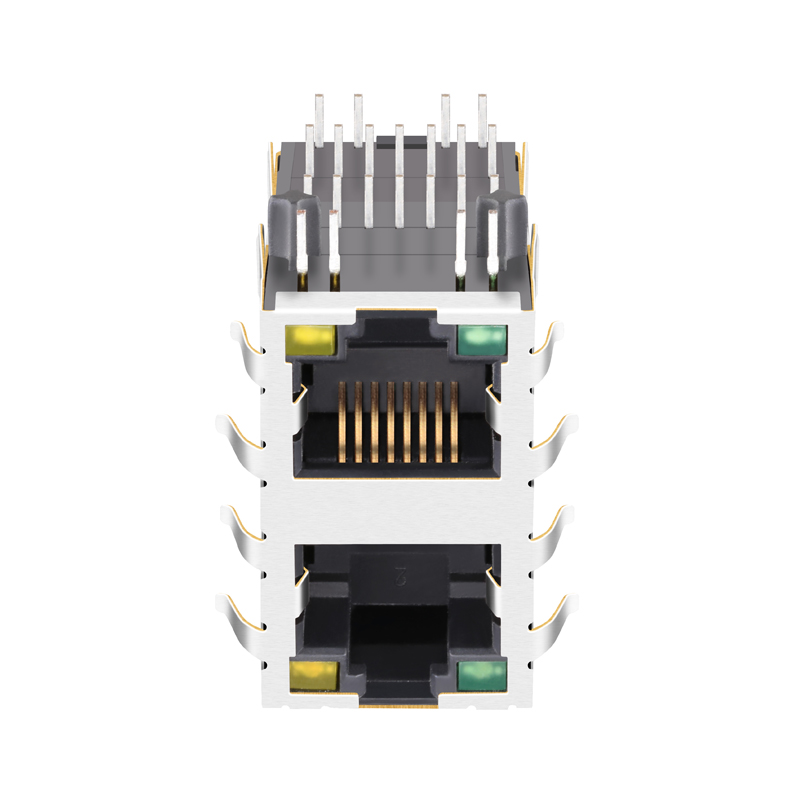

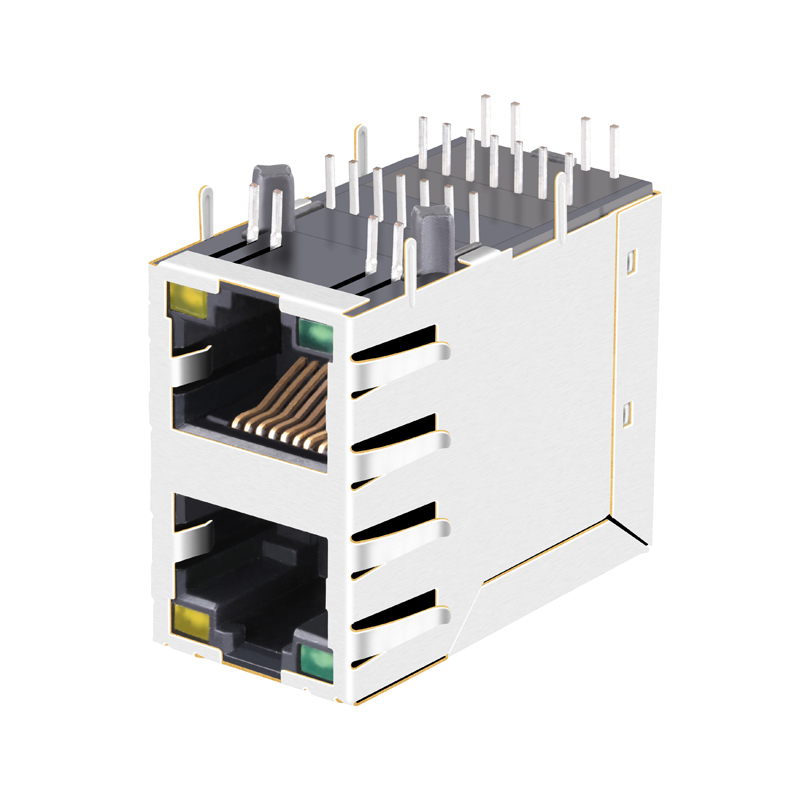

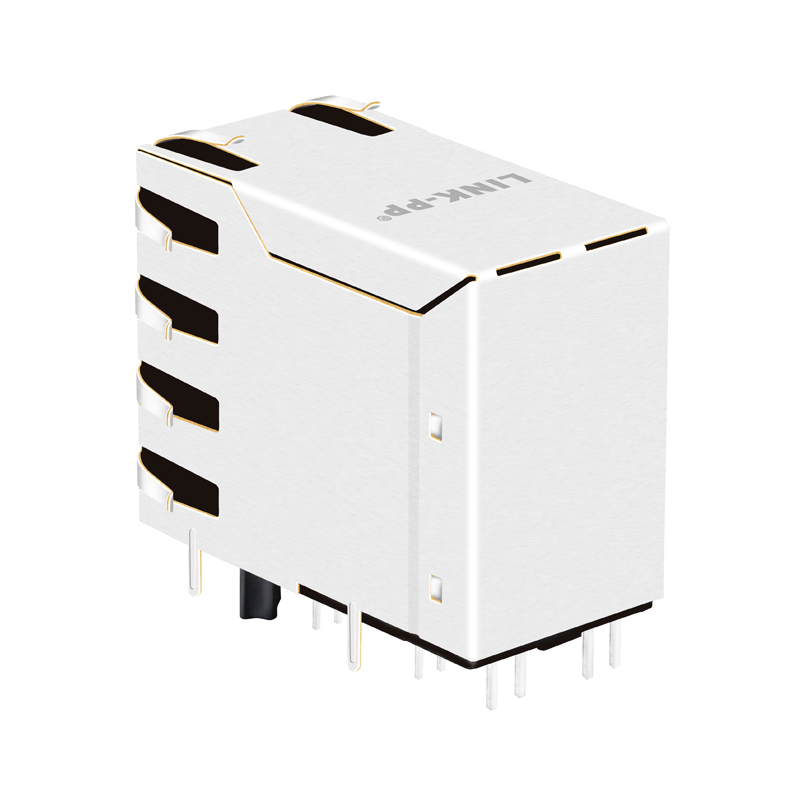

China Manufactures 2x1 Port Shielded RJ45 Modular Jack

Send Inquiry

Product Description

2x1 Port RJ45 Connector 10/100 Base-t Integrated Magnetics
LINK-PP Part Number	LPJ17202CNL
WE Part Number	MIC24A10-0101W-LF3 / 7499051002
Application-Lan	ETHERNET (Non-PoE)
AutoMDIX	YES
Bst Circuit	YES
Configuration RX/TX	T, C
Contact Mating Plating	GOLD 6u" / 15u" / 30u"
LED Option	Without LED
Latch Orientation	TAB DOWN / UP
Mounting Angle	SIDE ENTRY
Pin Type	THT SOLDER
Speed	10/100 Base-T
Operating Temperature	-40 to 85 ℃
Turns Ratio (RX/TX)	1CT:1CT

Why Choose Our Solutions

World Leader Supplier of Integrated RJ45 Connectors and Discrete Magnetic Transformers

Professional Certification

100% Quality Guarantee

Competitive Service

• LINK-PP Is The Preferred Supplier Of TI Samsung Cisco Siemens ...

• You Will Look At Our Logo "LINK-PP" On BeagleBone Board

Frequently Asked Questions

1. What is the data transfer speed of this RJ45 Modular Jack?

This connector is designed for 10/100 Base-T Ethernet applications, ensuring stable data transmission for standard networking requirements.

2. Does this connector support PoE (Power over Ethernet)?

No, this specific model is designed for Non-PoE Ethernet applications.

3. What are the gold plating options for the contact area?

We offer flexible plating options including Gold 6u", 15u", or 30u" to meet different durability and conductivity needs.

4. Is this product compliant with international environmental standards?

Yes, it is fully compliant with RoHS and Reach certifications, and our manufacturing process follows an active environmental policy.

5. What is the lead time for bulk orders?

Our standard delivery time is 2-3 weeks after order confirmation, which is significantly faster than many industry competitors.

6. What kind of testing do these connectors undergo?

We perform 100% testing on all units (not just batch testing) to ensure defect-free products and long-term reliability.
