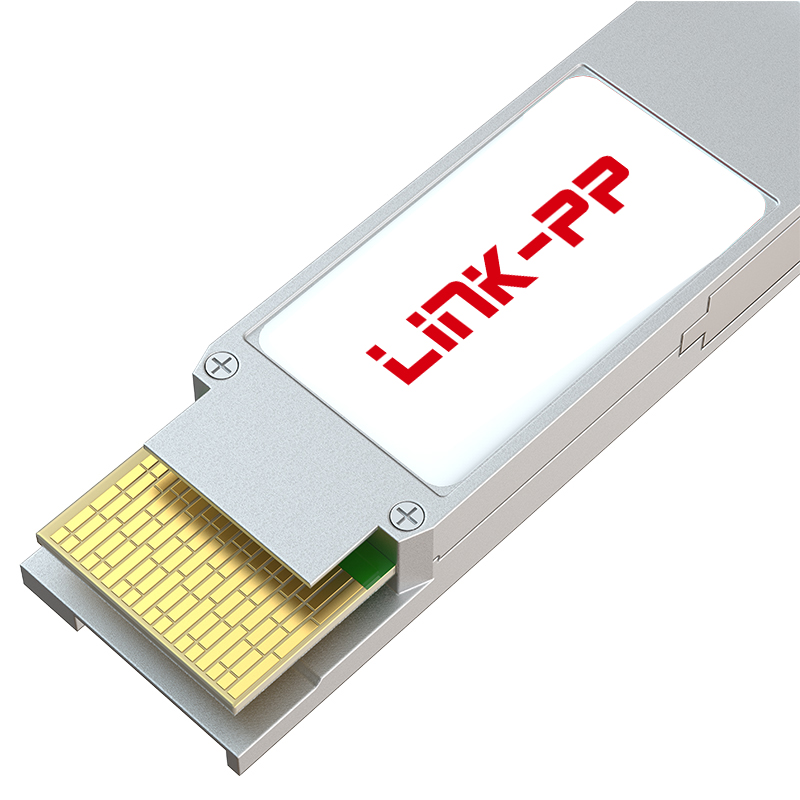

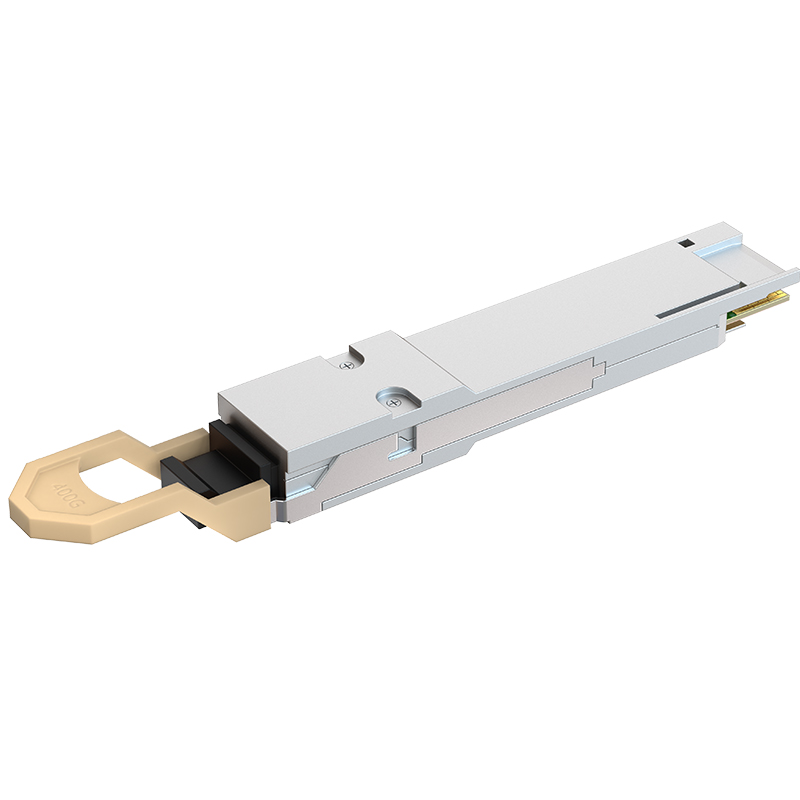

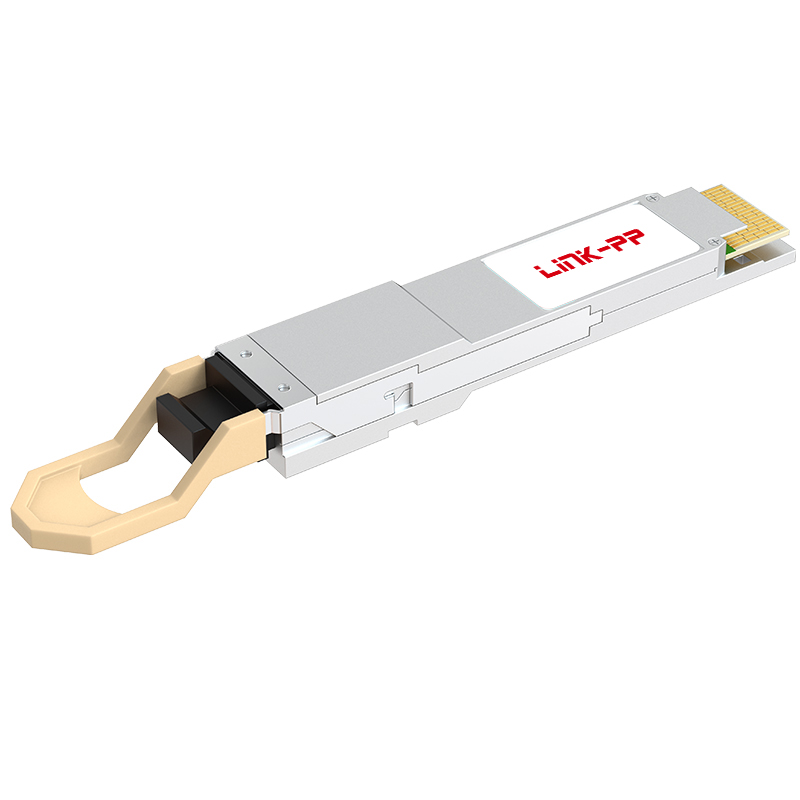

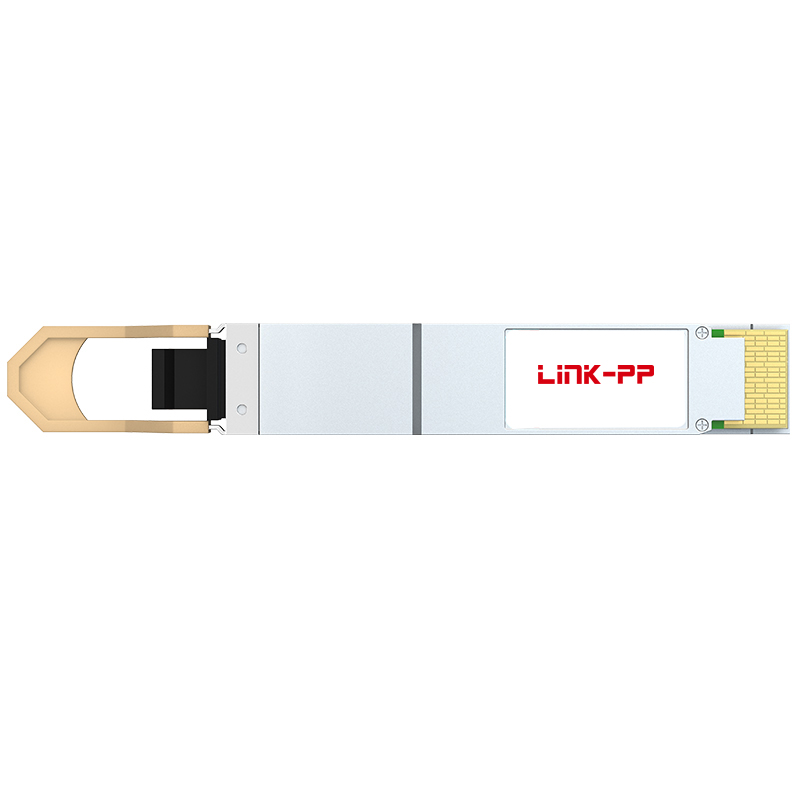

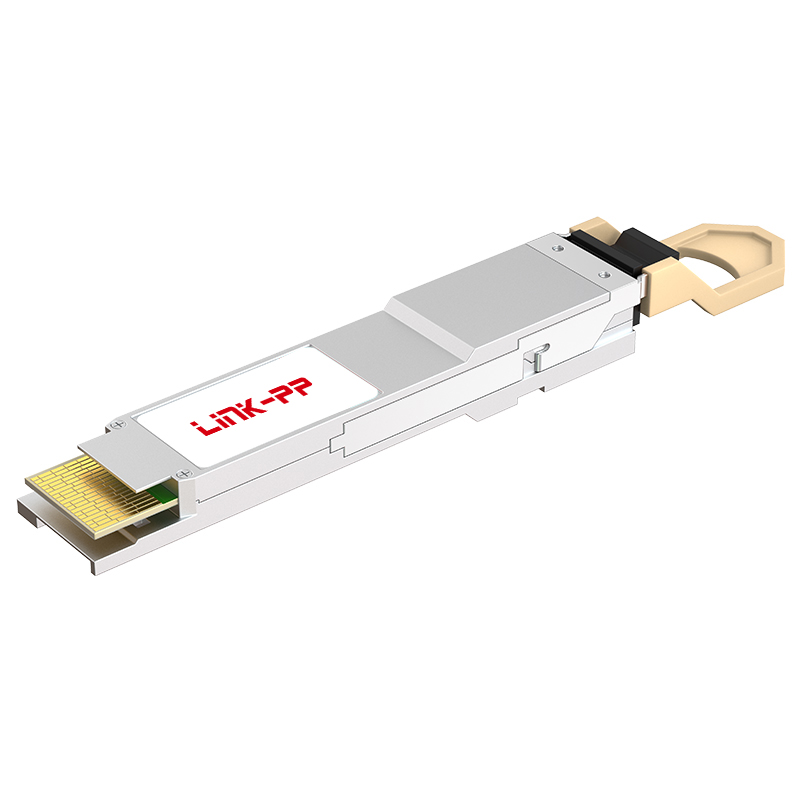

Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
1 / 5
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module

Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module

Send Inquiry

Product Description

Multiple Mode 850nm 400G QSFP-DD SR8 100m MTP/MPO-16 APC MMF Optical Transceiver Module
Form Factor: QSFP-DD
Data Rate: 400Gbps
Wavelength: 850nm
Warranty: 5 Years
Products Description
Item Fiber Optical Modules
Part Status Active
Form Factor QSFP-DD
Max Data Rate 400Gbps
Max Cable Distance 70m@OM3/100m@OM4
Wavelength 850nm
Connector MTP/MPO-16 (APC)
Media MMF
Optical Component VCSEL/PIN
TX Power -6~4dBm
RX Power -7.9~4dBm
Modulation 8x 50G PAM4
Powerbudget 1.9dB
Power Consumption ≤10W
Extinction Ratio 3dB
DDM/DOM DDM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Warranty 5 Years
Sample Available
Protocols IEEE 802.3cd, QSFP-DD MSA, CMIS 4.0
View Our Solution
We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
Optical Transceiver Interface
Transceiver Module Front
Transceiver Module Angle
Transceiver Module Back
Optical Module Product Line Map
Module Dimensional Drawing
Internal Component Display 1
Internal Component Display 2
Related Products SFP Cage
Related SFP Cage Products
Why Choose Us
Quality Assurance Standard
Production Capacity Guarantee
Testing Equipment and Laboratory
International Shipping and Logistics
FAQ
1. Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, lan transformers, RJ11 connectors, and SFP modules, etc.
2. Can I get a sample before mass production?
Yes, we can offer you free sample to test quality, but you should pay the shipping fee.
3. What is your delivery time?
Ready to ship for stock and 15-30 days for mass production.
4. What after-service can you offer?
One year guarantee period and we can offer technical support online 24 hours.
5. Can you accept OEM/ODM order?
Yes, please send inquiry to us so that we can have a detailed discussion.
6. What is your advantage?
19 years of production experience and we have been industry partners for many years.
