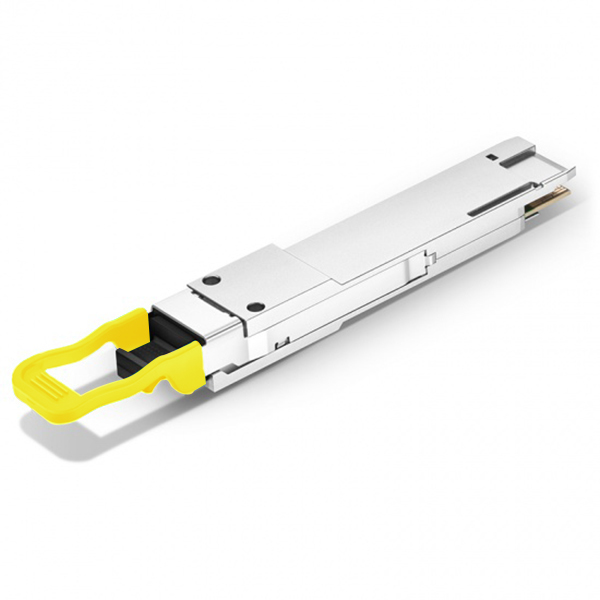

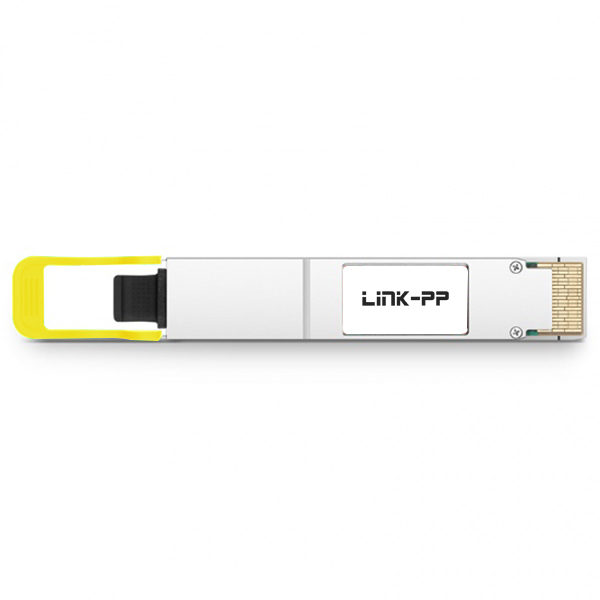

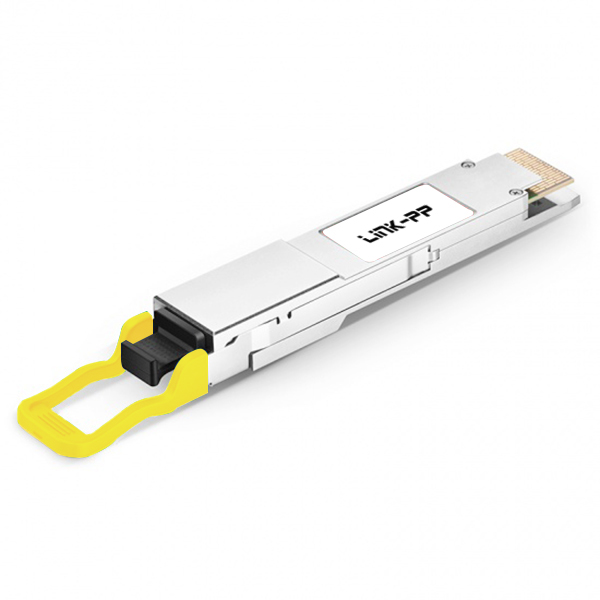

| Item | Fiber Optical Modules |
| Part Status | Active |
| Form Factor | QSFP-DD |
| Max Data Rate | 425Gbps (4x106.25Gb/s) |
| Max Cable Distance | 500m |
| Wavelength | 1310nm |

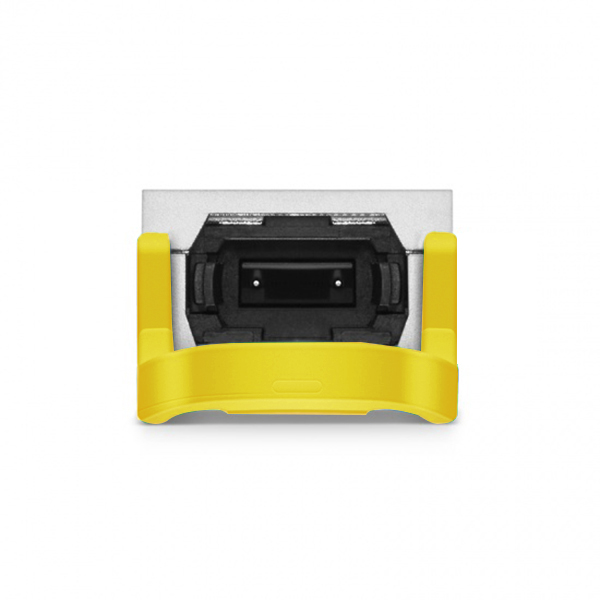

| Connector | MTP/MPO-12 APC |
| Media | SMF |
| Optical Component | DFB/PIN |
| TX Power | -2.9~4dBm |
| RX Power | -5.9~4.0dBm |
| Receiver Sensitivity | -6.5dBm |
| Power budget | 3dB |
| Power Consumption | ≤10W |
| Extinction Ratio | 3.5dB |
| DDM/DOM | DDM Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Warranty | 5 Years |
| Sample | Available |
| Protocols | IEEE 802.3bs, QSFP-DD MSA, CMIS 4.1 |
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. Our facility owns advanced manufacturing facilities and test equipment imported from abroad.
Established in 1997, we currently have around 2000 staff members. With an abundant productive capacity of 3000K per month, we are able to deliver products within a short time.
Moreover, we provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also offers high-speed optical interconnection solutions for cloud computing and ultra-broadband networks. With the latest optoelectronics technologies, we develop, manufacture, and sell products around the world.
