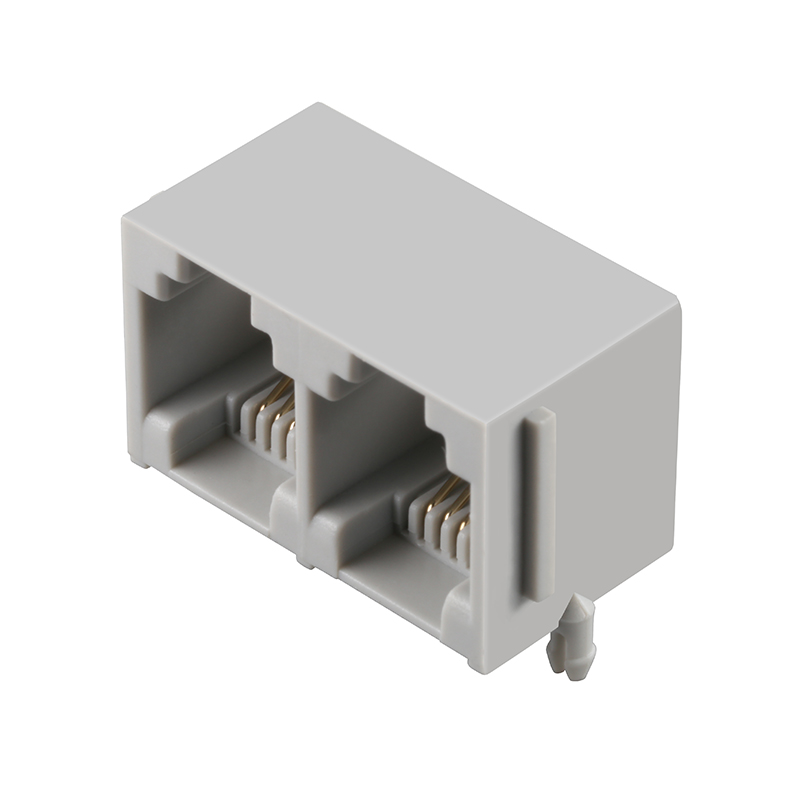

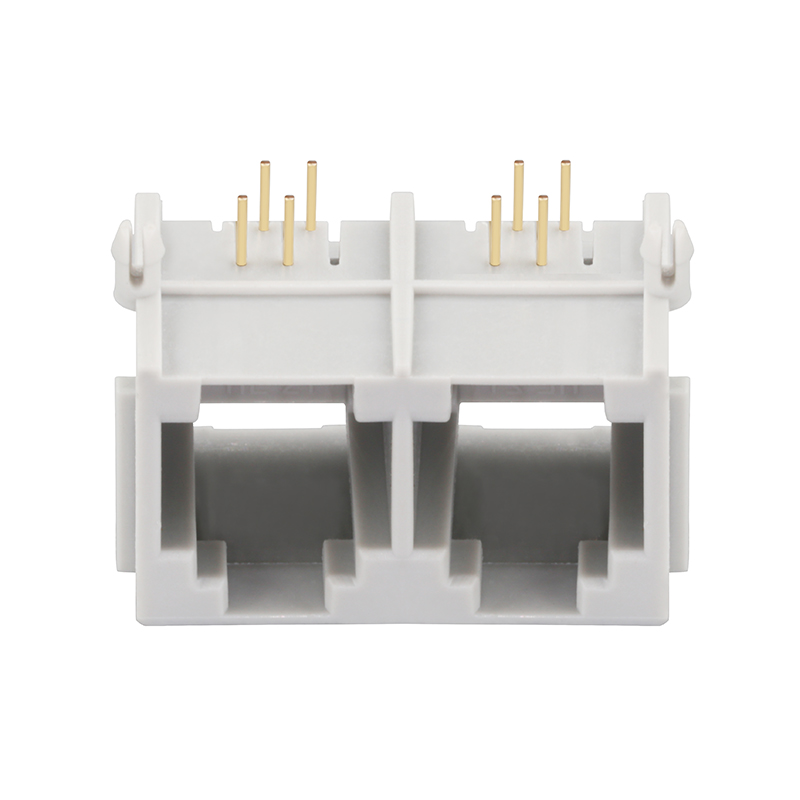

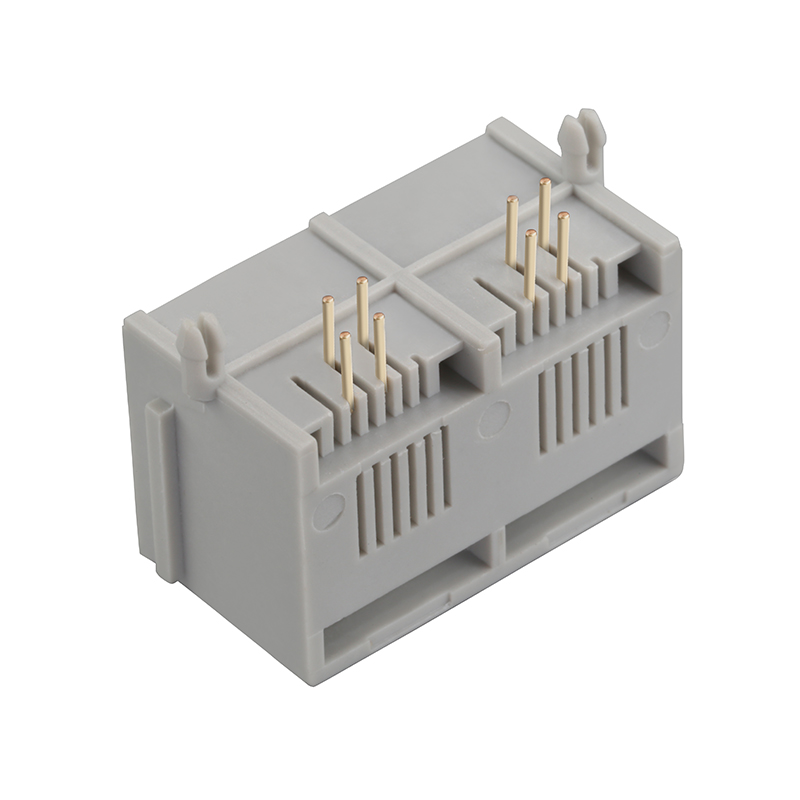

Tab Up Unshielded 1x2 Port Female Connector 6P4C RJ11 Jack

Product Description

Product Categories
Tab Up Unshielded 1x2 Port Female Connector 6P4C RJ11 Jack
Products Description
ItemRJ45 Female Connector
Part NumberLPJE702NNL
Part StatusActive
Connector TypeJack
Number of Positions/Contacts6p6c (RJ11, Ethernet)
Application-LanEthernet(NoN PoE)
Number of Ports1x1 Port
LatchUp
Orientation90° Angle (Right)
PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithout
LED OptionWithout
PCBFR4
PCB Retaining PostT POST
Temperature-40℃ TO 85℃
Bst CircuitYes
AutomDXYES
Contact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CT
Configuration RX/TXT,C

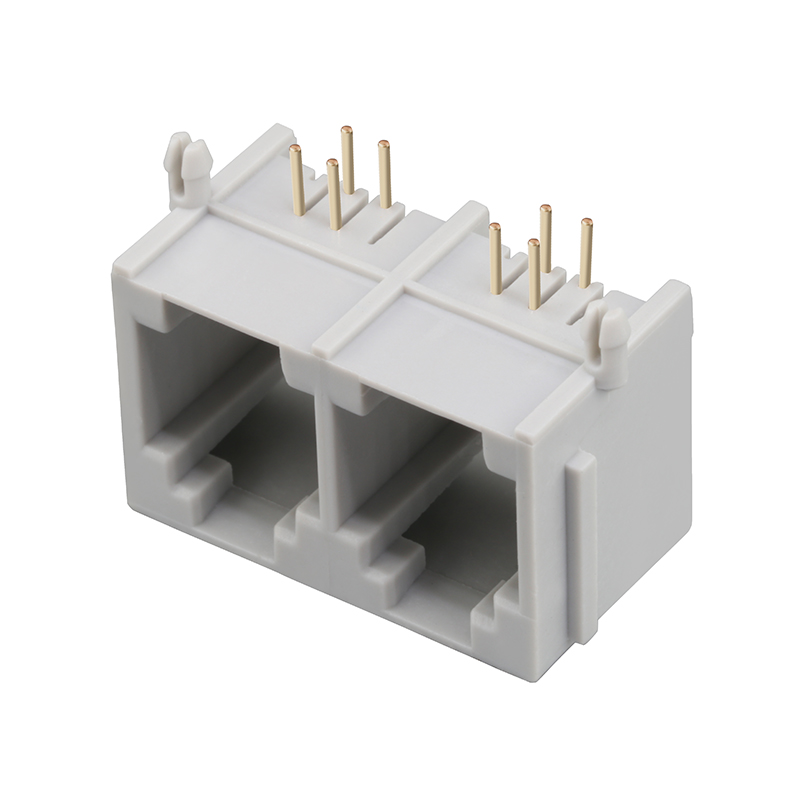

Side View

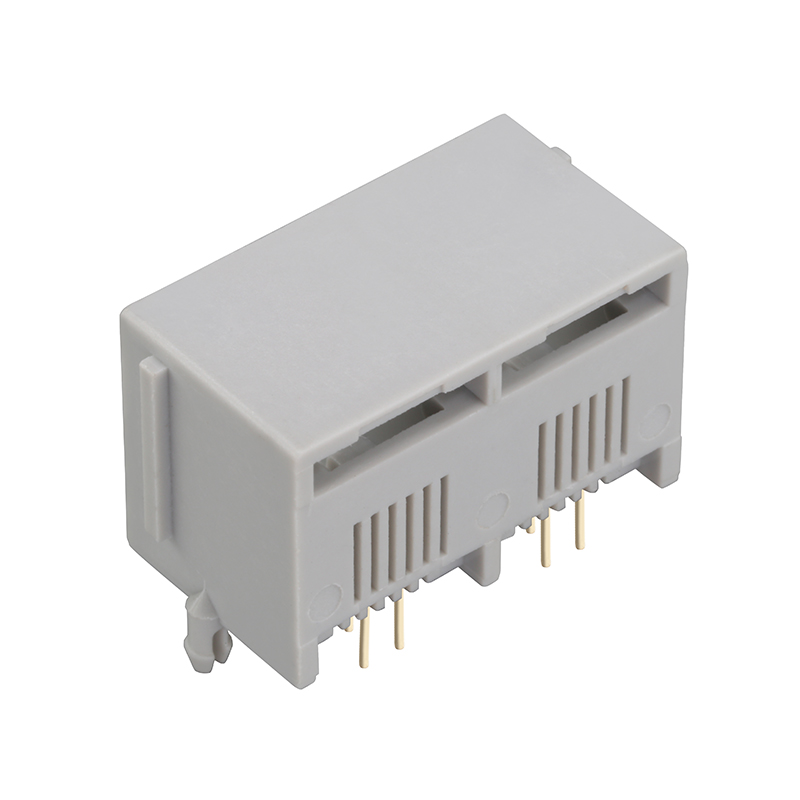

Front View
Technical Drawing
