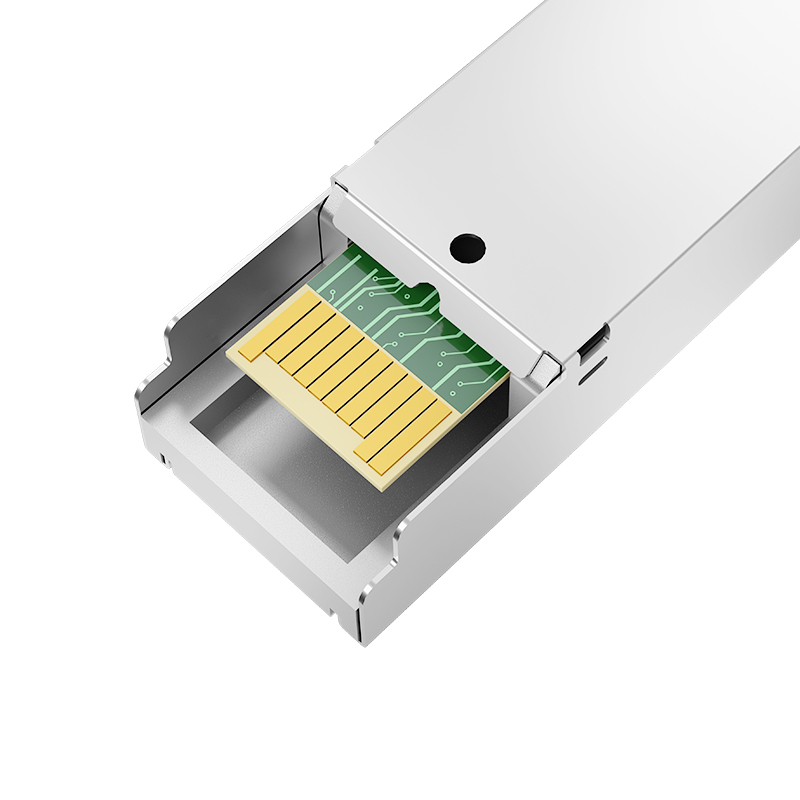

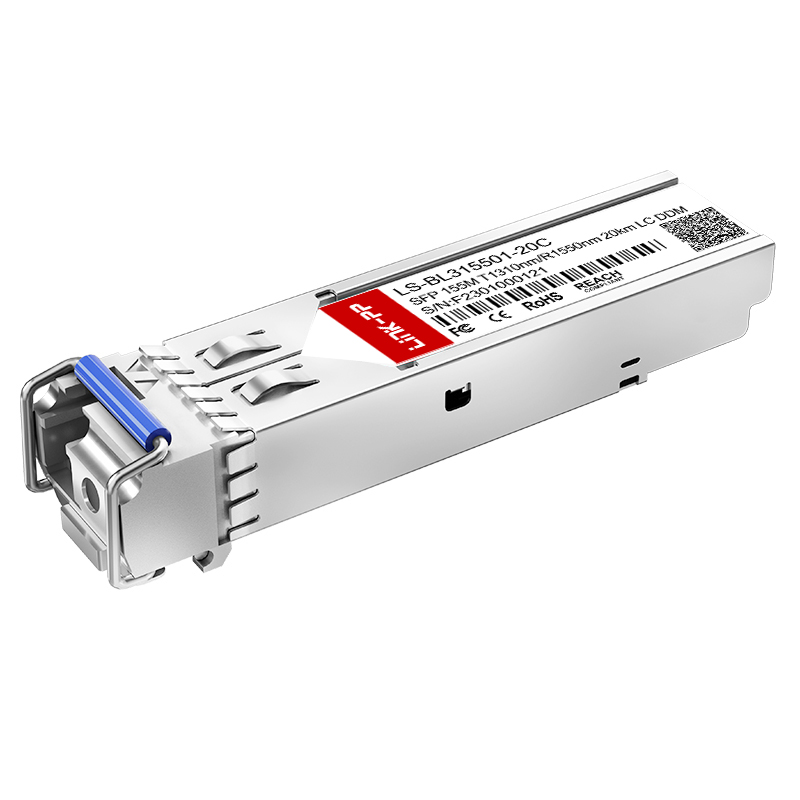

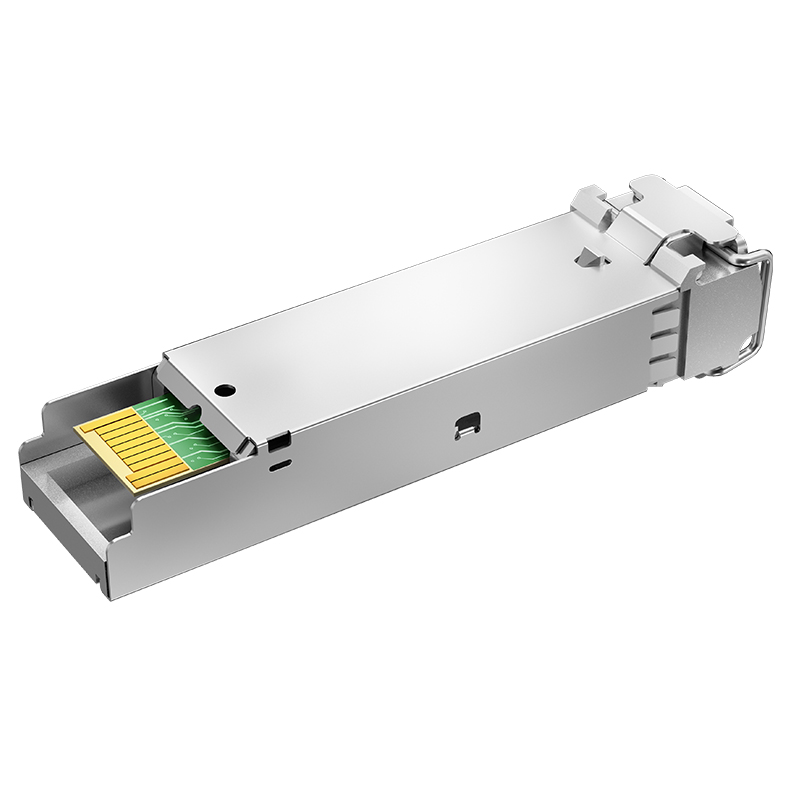

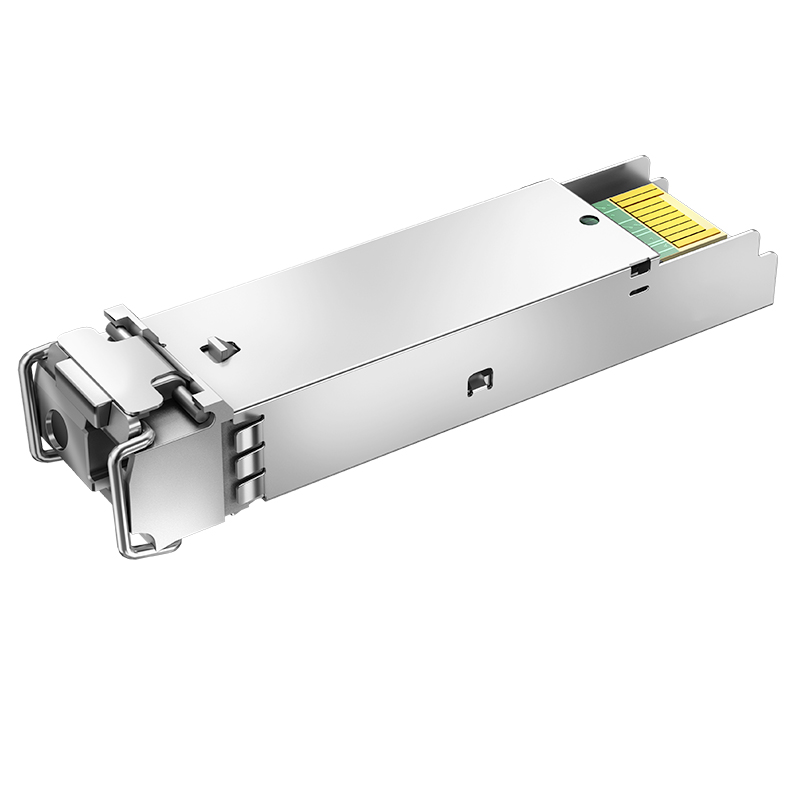

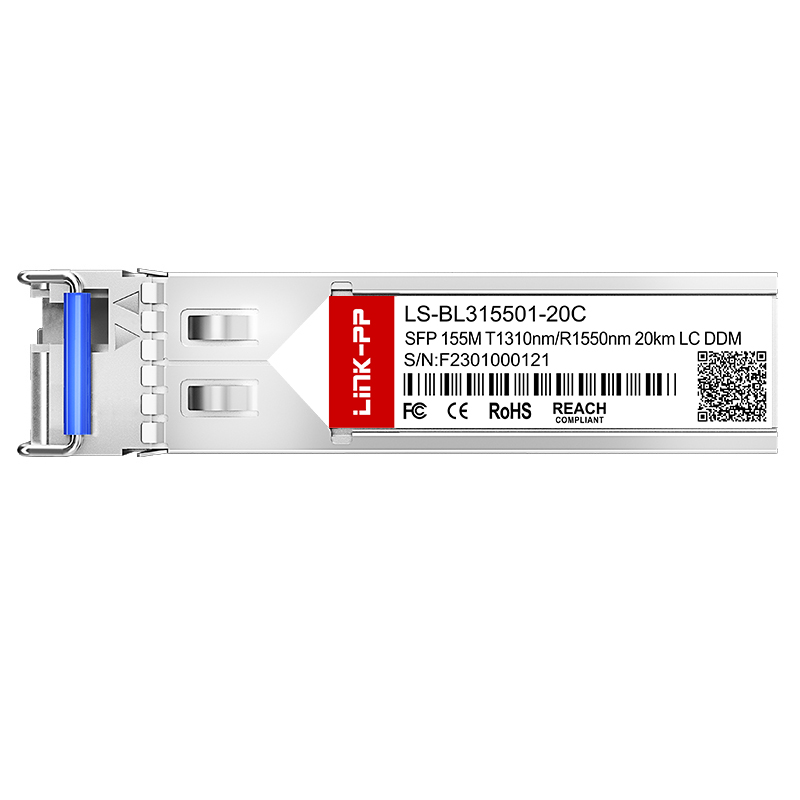

1310nm-TX/1550nm-RX Bidirectional Single Mode SFP 155M Bidi 20km LC Optical Transceiver Module

Product Description

1310nm-TX/1550nm-RX Bidirectional Single Mode SFP 155M Bidi 20km LC Optical Transceiver Module
Parameter Specification
Form FactorSFP
Max Data Rate155Mbps
Wavelength1310nm-TX/1550nm-RX
Max Cable Distance20km
ConnectorSimplex LC
MediaSMF
Transmitter TypeFP
Receiver TypePIN
TX Power-14 ~ -8dBm
Receiver Sensitivity< -30dBm
EMC SupportedYes
DDM/DOMSupported
ProtocolsFast Ethernet, Gigabit Fibre Channel, MSA Compliant
Temperature Range0 to 70°C / -40 to 85°C
Warranty5 Years
VIEW OUR SOLUTIONS
Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
SFP Solution
Support Full Range Of 155M BiDi SFP
Part Number Data Rate Wavelength Distance Components DDM
LS-BL315501-10C155Mbps1310nm-TX/1550nm-RX10kmFP/PINYes
LS-BL553101-10C155Mbps1550nm-TX/1310nm-RX10kmFP/PINYes
LS-BL315501-15C155Mbps1310nm-TX/1550nm-RX15kmFP/PINYes
LS-BL553101-15C155Mbps1550nm-TX/1310nm-RX15kmFP/PINYes
LS-BL315501-20C155Mbps1310nm-TX/1550nm-RX20kmFP/PINYes
LS-BL553101-20C155Mbps1550nm-TX/1310nm-RX20kmFP/PINYes
LS-BL315501-40C155Mbps1310nm-TX/1550nm-RX40kmFP/PINYes
LS-BL553101-40C155Mbps1550nm-TX/1310nm-RX40kmFP/PINYes
Product Display 1 Product Display 2
🌐
Optical Transport Networks
End-to-end DWDM devices ranging from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP, and OTDR.
Optical Transport
☁️
Cloud and Enterprise
High-speed optical modules with rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.
Cloud Enterprise
📶
Wireless Solutions
High reliability products with mature lasers and mainstream chip solutions for 4G/5G systems, covering WDM, Radio over Fiber, and Back-haul scenarios.
Wireless
Why Choose Us
Quality Assurance Manufacturing Power Testing Equipment
About Our Capability
Specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL. With advanced manufacturing and testing equipment, we maintain an abundant production capacity of 3000K per month, ensuring short lead times. We offer high-speed optical interconnect solutions for cloud computing and ultra-broadband networks using the latest optoelectronic technologies.
Factory 1 Factory 2
Frequently Asked Questions
1. Are you a factory or a trading company? We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, lan transformers, and SFP modules.
2. Can I get a sample before mass production? Yes, we can offer free samples to test quality, with the shipping fee covered by the customer.
3. What is the standard delivery time? Stock items are ready to ship immediately; mass production typically takes 15-30 days.
4. What after-service do you provide? We provide a one-year guarantee period and 24-hour online technical support.
5. Do you accept OEM/ODM orders? Yes, we welcome OEM/ODM inquiries for detailed discussion on customized requirements.
6. What are your core advantages? With over 19 years of production experience, we are a trusted partner for global industry leaders.
