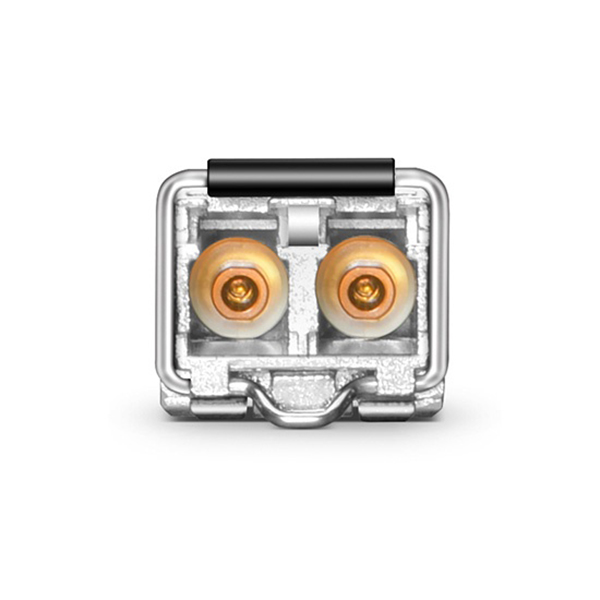

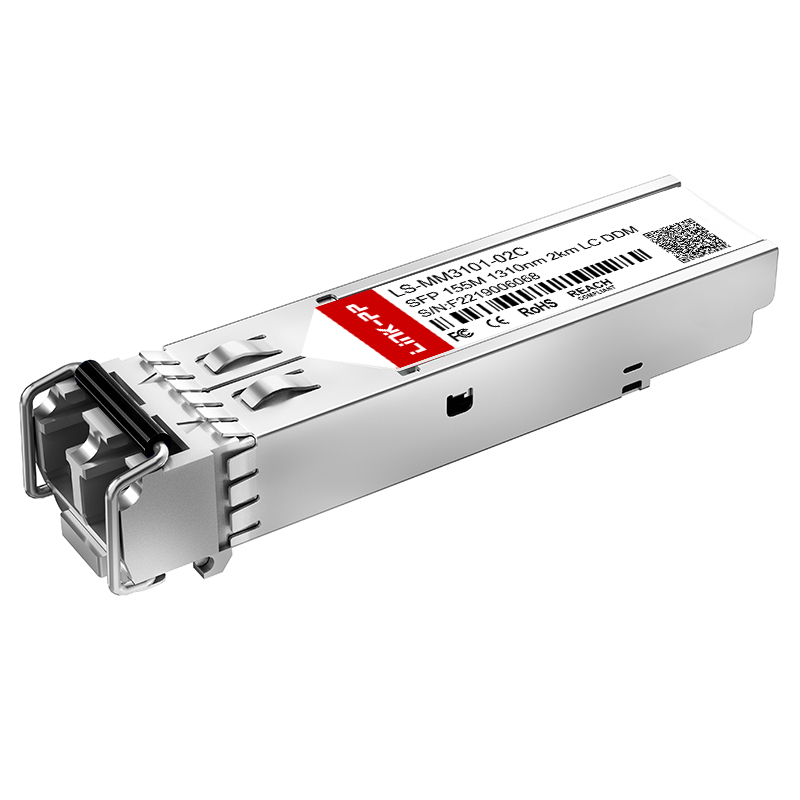

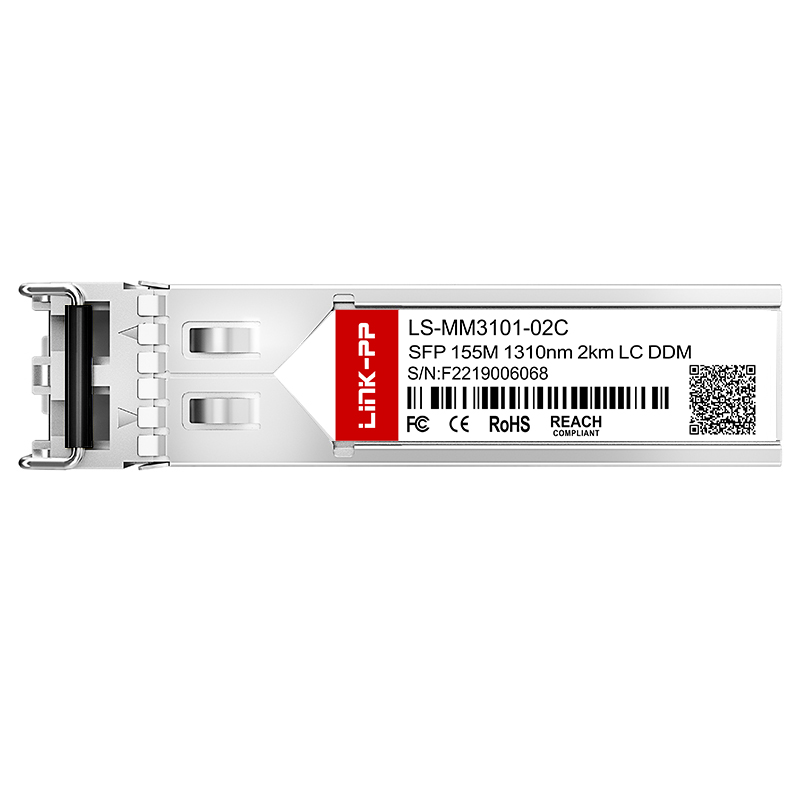

| Item | 100BASE SFP |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 100Mbps |
| Wavelength | 1310nm |
| Max Cable Distance | 2km |
| Media | MMF |
| Connector | Duplex LC |
| Optical Component | FP 1310nm |
| TX Power | -15~-8dBm |
| Receiver Sensitivity | < -32dBm |
| DDM/DOM | Supported |
| Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE802.3U, GR-468, MSA Compliant |
| Warranty | 5 Years |
| Sample | Available |
We are a specialized manufacturer of magnetic telecom and networking components, certificated by ISO9001:2000, ROSH, REACH, CE and UL. The company owns advanced manufacturing facilities and test equipment imported from abroad. Established in 1997, we have around 2000 staff at present. With a productive capacity of 3000K per month, we are able to deliver goods within a short time. Moreover, we provide professional complete solutions for magnetic components and strong technical support.
Main products include 10/100/1000M LAN pulse transformers and filters, RJ45 connectors with 10/100/1000M magnetics, T1/E1, T3/DS3/E3/STS-1 interface line transformers, and ISDN, HDSL, ADSL, and VDSL interface line transformers and splitters. Our products are widely used in networking and communication equipment such as HUBs, PC cards, switches, routers, mainboards, SDH, PDH, IP phones, and xDSL modems. We have exported to more than 30 countries and regions worldwide, including Germany, France, England, USA, Singapore, Korea, Canada, and Japan.
