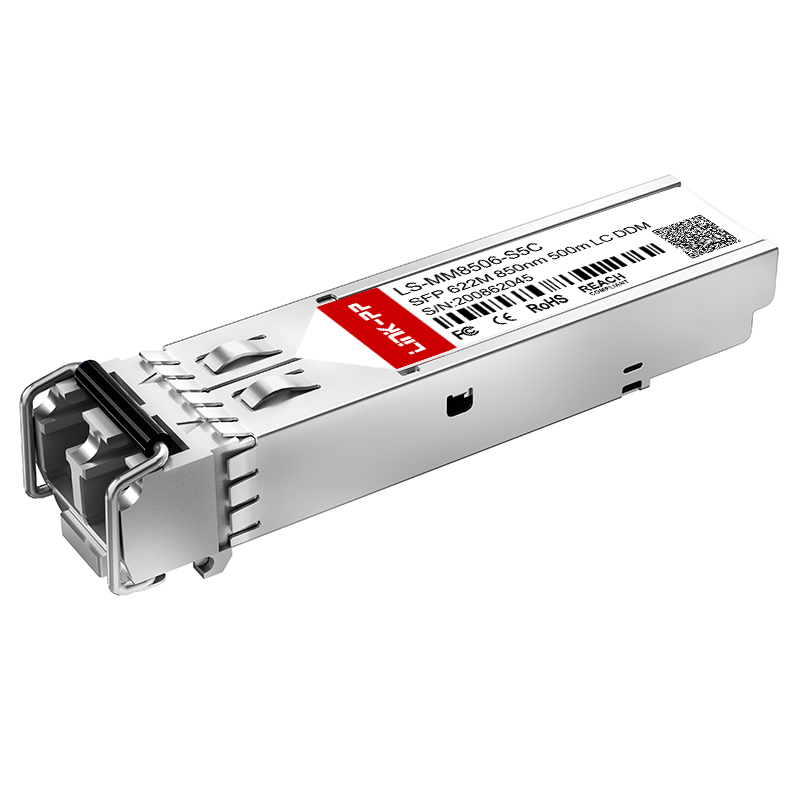

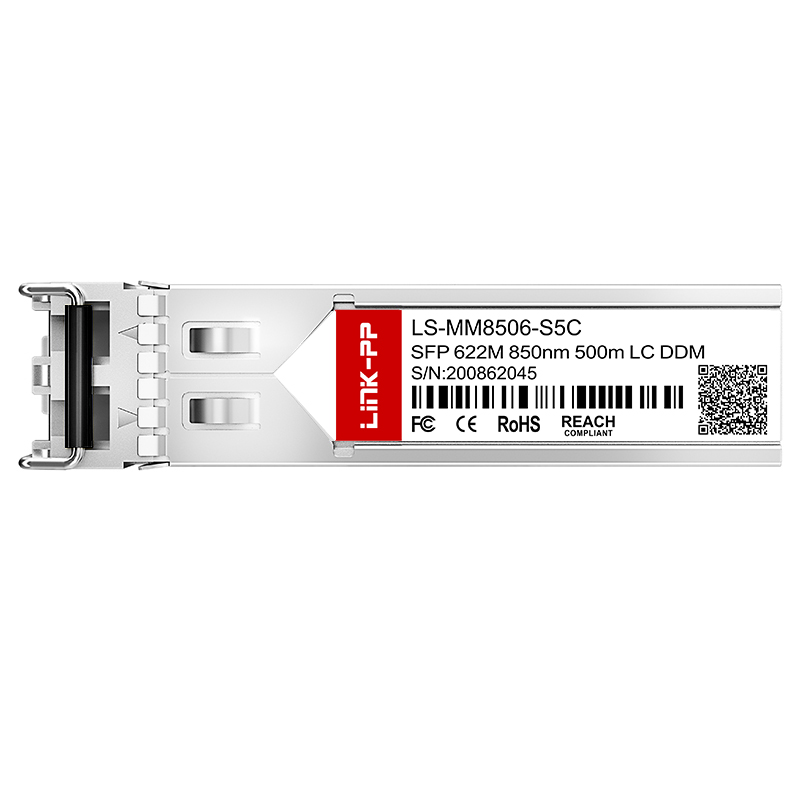

MMF 850nm SFP 622M 500m Multimode Duplex LC Optical Transceiver Module

Product Description

MMF 850nm SFP 622M 500m Multimode Duplex LC Optical Transceiver Module
Part No. LS-MM8506-S5C
Form Factor SFP
Max Data Rate 622Mbps
Wavelength 850nm
Max Cable Distance 500m
Connector Duplex LC
Media MMF
Transmitter Type VCSEL
Receiver Type PIN
EMC (Electro Magnetic Compatibility) Supported
DDM/DOM Supported
Protocols MSA Compliant
Temperature Range 0 to 70°C / -40 to 85°C
Warranty 5 Years
Sample Available
VIEW OUR SOLUTIONS

We draw on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.

Optical Transceiver Solutions
Support Full Range Of 622M SFP
Part Number Data Rate Wavelength Distance Media DDM
LS-MM8506-S5C 622Mbps 850nm 500m Multi-mode Yes
LS-SM3106-S5C 622Mbps 1310nm 500m Single Mode Yes
LS-SM3106-02C 622Mbps 1310nm 2km Single Mode Yes
LS-MM3106-02C 622Mbps 1310nm 2km Multi-mode Yes
LS-SM3106-20C 622Mbps 1310nm 20km Single Mode Yes
LS-SM3106-40C 622Mbps 1310nm 40km Single Mode Yes
LS-SM5506-80C 622Mbps 1550nm 80km Single Mode Yes
LS-SM5506-A0C 622Mbps 1550nm 100km Single Mode Yes
LS-SM5506-A2C 622Mbps 1550nm 120km Single Mode Yes
Optical Interconnect Interface SFP Transceiver Product Matrix
Application Scenarios

Optical Transport Networks

We can provide end-to-end DWDM devices with almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR etc.

Optical Transport Networks

Cloud and Enterprise

To meet the demand for mass data transmission in data centers, we have developed a series of high-speed optical modules with product rates ranging from 10G to 800G, providing high-quality optical interconnection solutions for data centers.

Cloud and Enterprise

Wireless

We provide high reliability and performance products with mature and efficient lasers and mainstream chip solutions to our customers all around the world. The solution includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul which could meet all the needs of various scenarios in 4G/5G systems.

Wireless

FTTx

Aimed at global communication network constructors, we provide FTTx optical fiber access total solutions covering from all-optical or optical copper combined access solutions and products.

FTTx

Subsystems

To ensure the normal operation of the communication line, we provide the optical cable O&M solution which integrates an optical line protection system (OLP) and an optical line monitoring system (OLM).

Subsystems
Related Products SFP Cage
SFP Cage Related Products
Why Choose Us
Advanced Testing Equipment Strict Quality Control High Production Capacity Global Certificates
Manufacturing Expertise & Capabilities

We are a specialized manufacturer of magnetic telecom and network components, certified by ISO9001:2000, ROSH, REACH, CE and UL, with advanced manufacturing equipment and testing equipment imported from abroad. Established in 1997, we have approximately 2,000 employees at present. With an abundant production capacity of 3,000K per month, we are able to deliver products within a short timeframe.

In addition, we provide a complete series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks. The range also includes high-speed optical interconnect solutions for cloud computing and ultra-broadband networks. Using the latest optoelectronic technologies, we design, manufacture and sell products worldwide.

Automated Manufacturing Line Quality Standard Verification
Frequently Asked Questions
Q Are you a factory or a trading company?

We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.

Q Can I get a sample before mass production?

Yes, we can offer you free samples to test quality, but you are responsible for the shipping fees.

Q What is your standard delivery time?

Items that are currently in stock are ready to ship immediately, while standard mass production orders typically take 15 to 30 days.

Q What after-sales service and technical support do you offer?

We provide a one-year guarantee period along with 24-hour online technical support to assist you with any inquiries.

Q Do you accept custom OEM or ODM orders?

Yes, we welcome custom requirements. Please send us your detailed inquiry so we can begin discussions.

Q What are your main advantages in this industry?

We possess over 19 years of professional production experience and have been a trusted partner to major international enterprise clients for many years.
