Product Specification

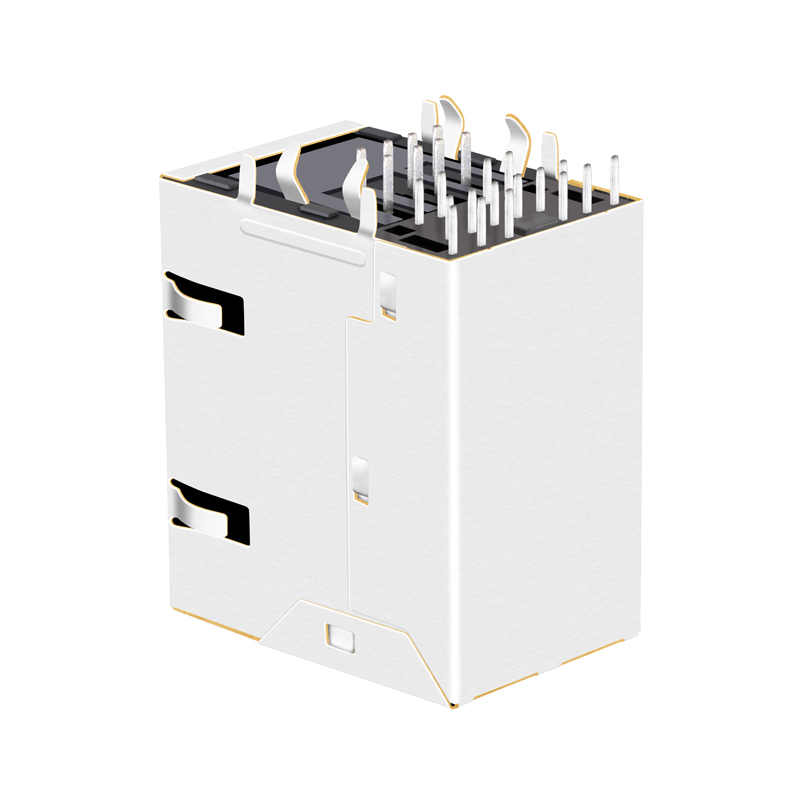

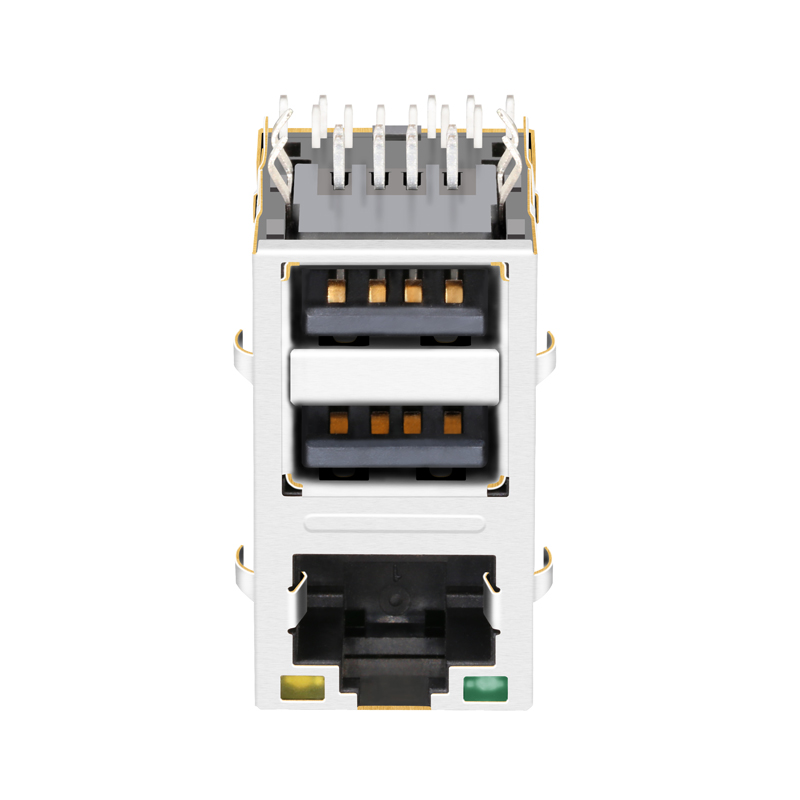

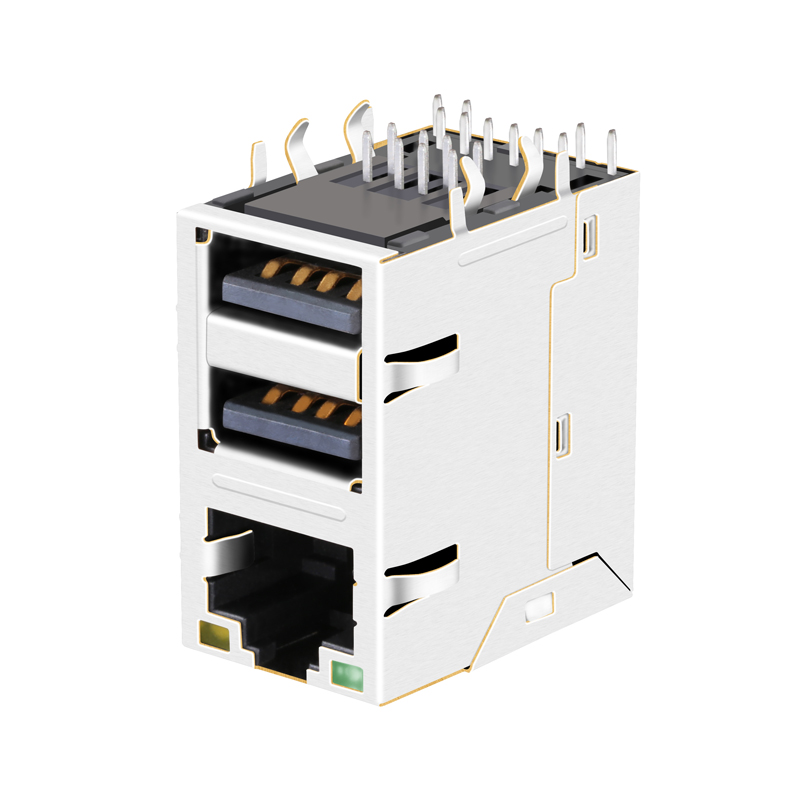

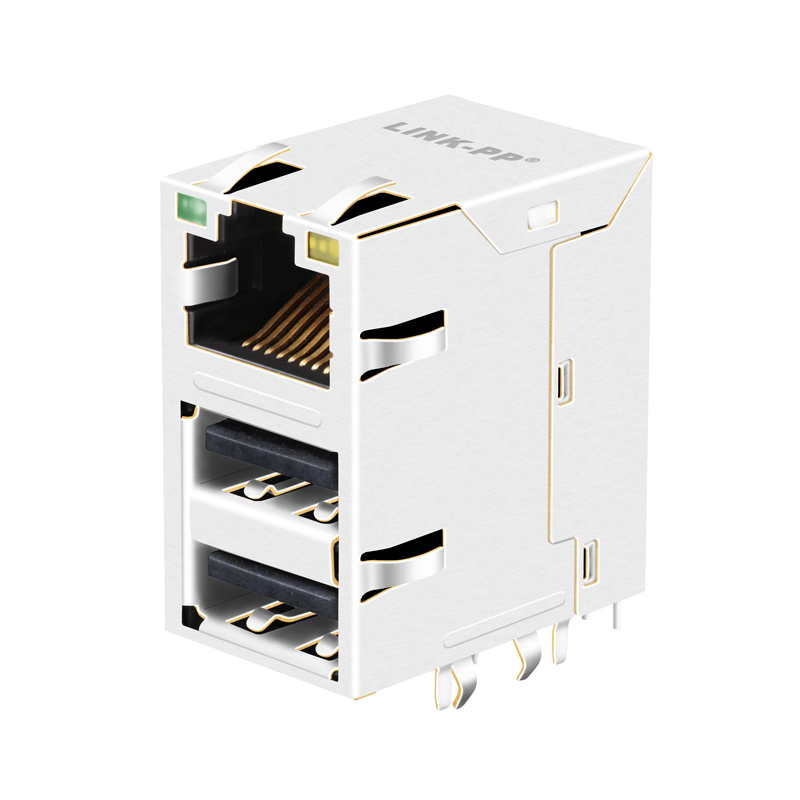

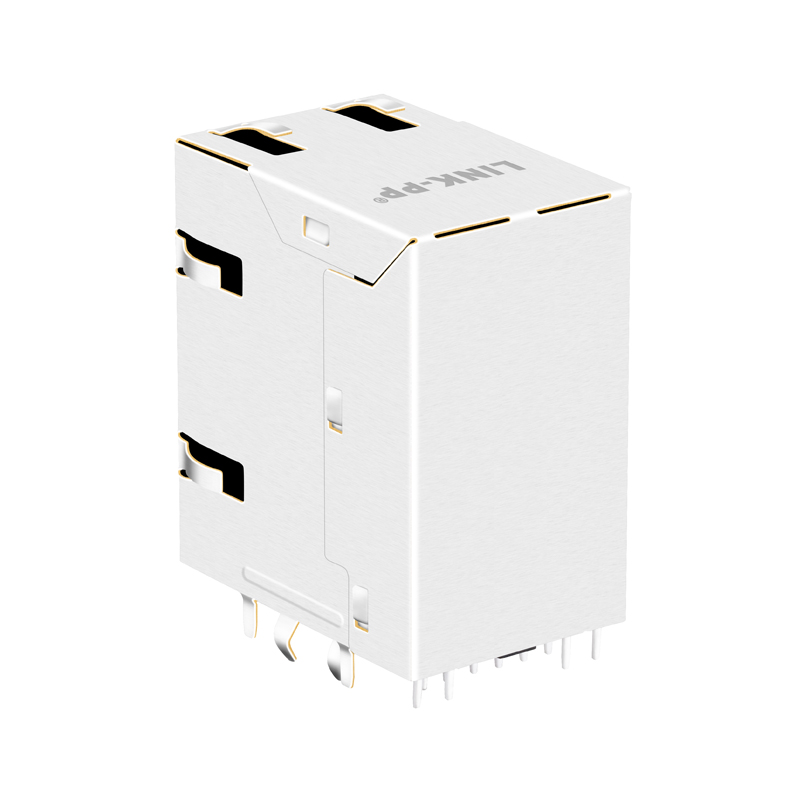

xmm-9714-8813-s3lj-m-im Single Port RJ45 Modular Jack Connector With USB
■ Products Description
| Item | RJ45 Female Connector |
| Compatible With | xmm-9714-8813-s3lj-m-im |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | Single Port With USB |
| Speed | 10/100/1000 Base-T |
| Latch | Down/Up |
| Cores per Port | 4 |
| Orientation | 90° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without/With |
| LED Option | Green/Yellow |
| PCB | FR4 |
| PCB Retaining Post | T POST |
| Temperature | 0℃ TO 70℃ / -40℃ TO 85℃ |
| Bst Circuit | Yes |
| AutomDX | YES |
| Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
| Configuration RX/TX | T,C |
■ Specialized Connector Solutions
■ Professional Manufacturing & R&D
Established in 1997, we are a professional designer and manufacturer in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities, we are a global supplier of magnetic telecom and networking components for OEMs, contract manufacturers, and CEMs, supplying more than 10,000+ customers over 200 countries. Building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a world leader in Ethernet RJ45 connectors and LAN transformer solutions.
■ Frequently Asked Questions
Are you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, including RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules.
Can I get a sample before mass production?
Yes, we can offer free samples to test quality, though shipping fees are typically covered by the customer.
What is your delivery time?
Items in stock are ready to ship immediately; mass production typically takes 15-30 days.
What after-service do you offer?
We provide a one-year guarantee period and offer 24-hour online technical support.
Can you accept OEM/ODM orders?
Yes, we specialize in custom requirements. Please contact us to discuss your specific needs in detail.
What is your core advantage?
With 19 years of professional production experience, we have established long-term partnerships with industry leaders.
