Home > 1.25G SFP Module > SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km

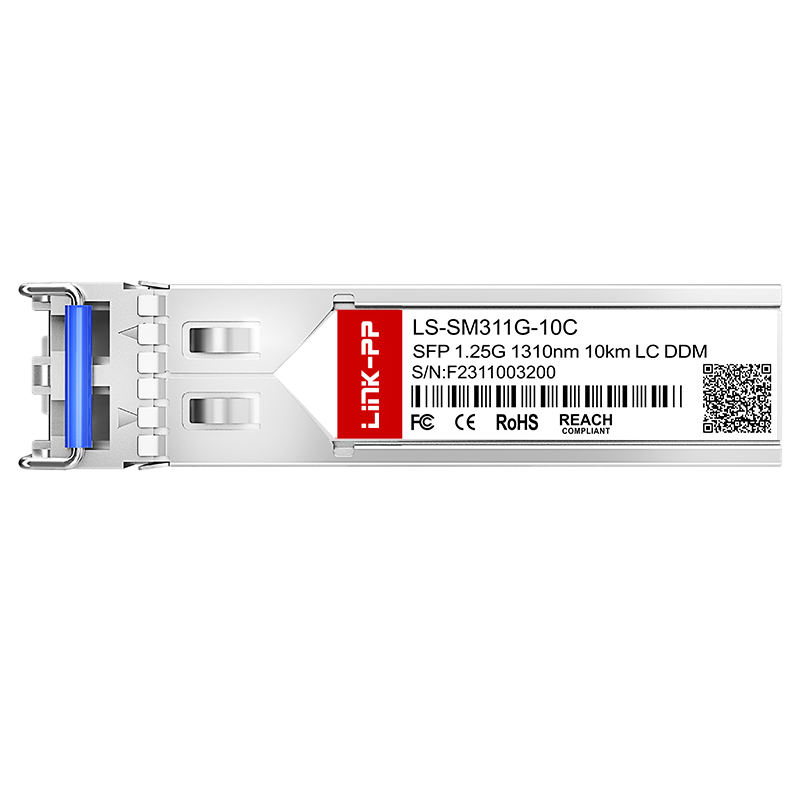

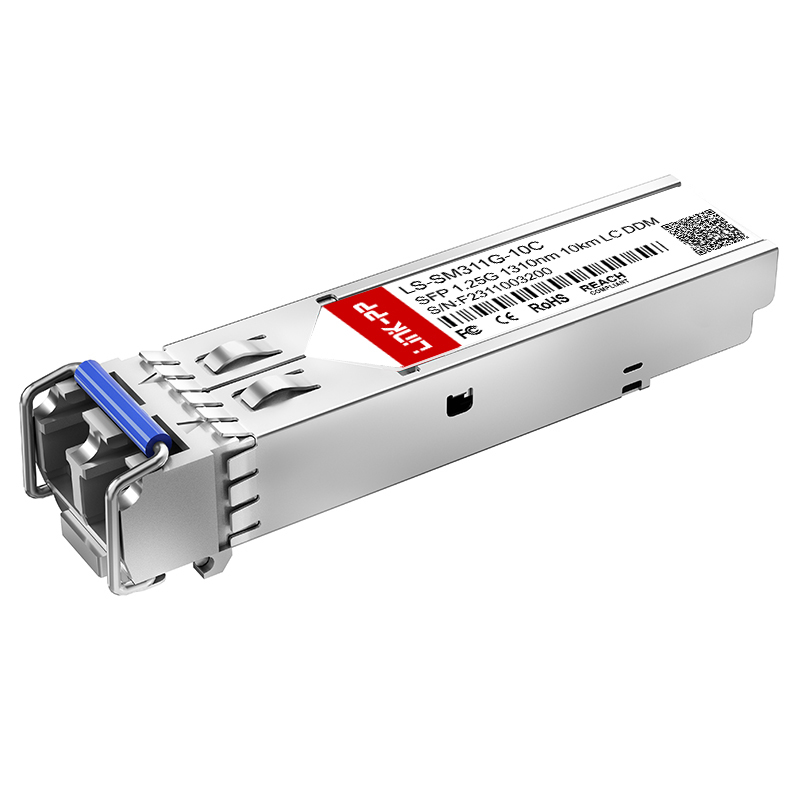

SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
1 / 5
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km

SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km

Send Inquiry

Product Description

SFP-GE-LX-SM1310 Compatible 1000BASE-LX Duplex LC Optical Transceiver Single Mode 1310nm 1G SFP Module 10km
Products Description
Item 1000BASE SFP
Compatible SFP-GE-LX-SM1310
Part Status Active
Form Factor SFP
Max Data Rate 1.25Gbps
Wavelength 1310nm
Max Cable Distance 10Km
Media SMF
Connector Duplex LC
Optical Component FP/PIN
TX Power -9.5~-3dBm
Receiver Sensitivity <-20dBm
Receiver Overload -3dBm
Power Consumption ≤1W
Extinction Ratio >9dB
DDM/DOM Supported
Commercial Temperature Range 0 to 70°C (32 to 158°F)
Protocols IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA (INF-8074i) Compliant
Warranty 5 Years
Sample Available
