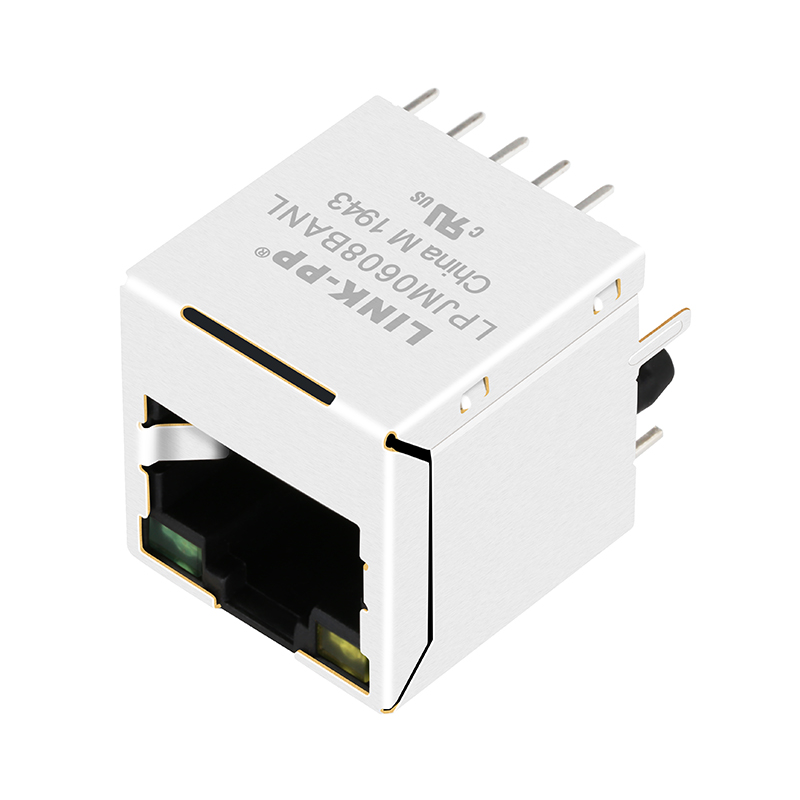

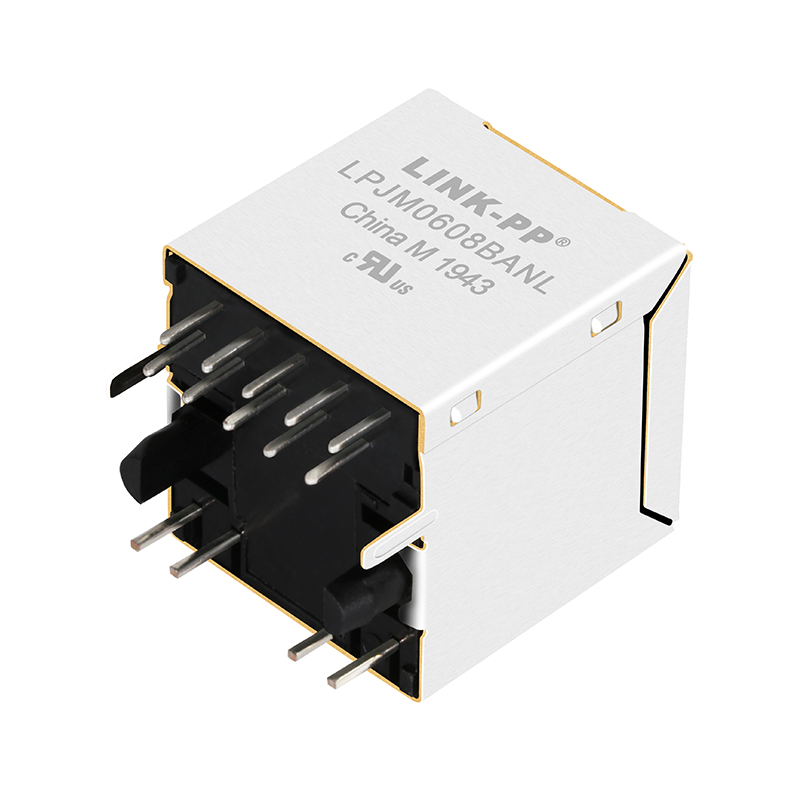

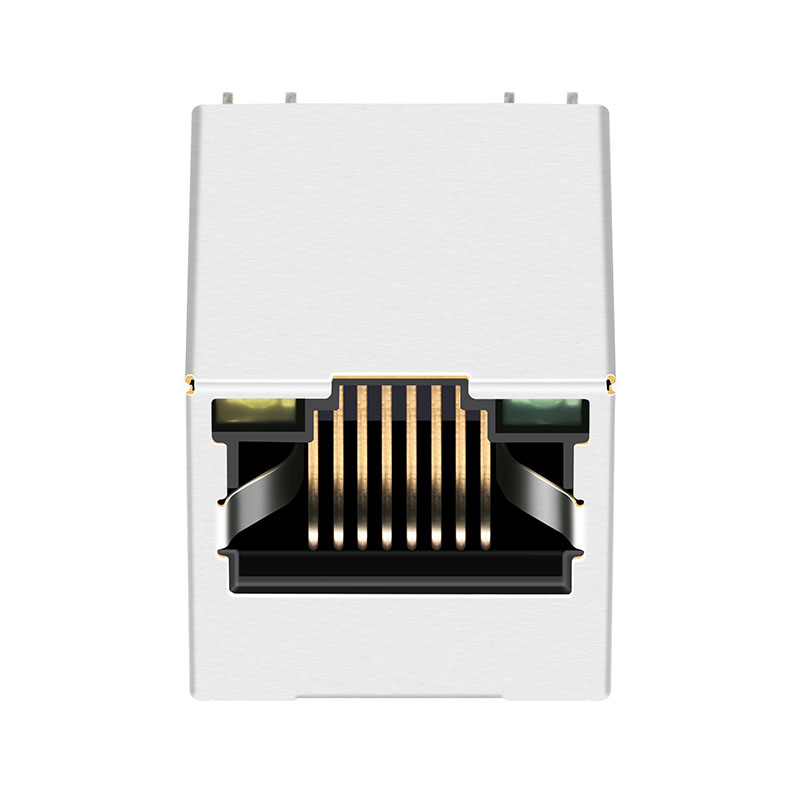

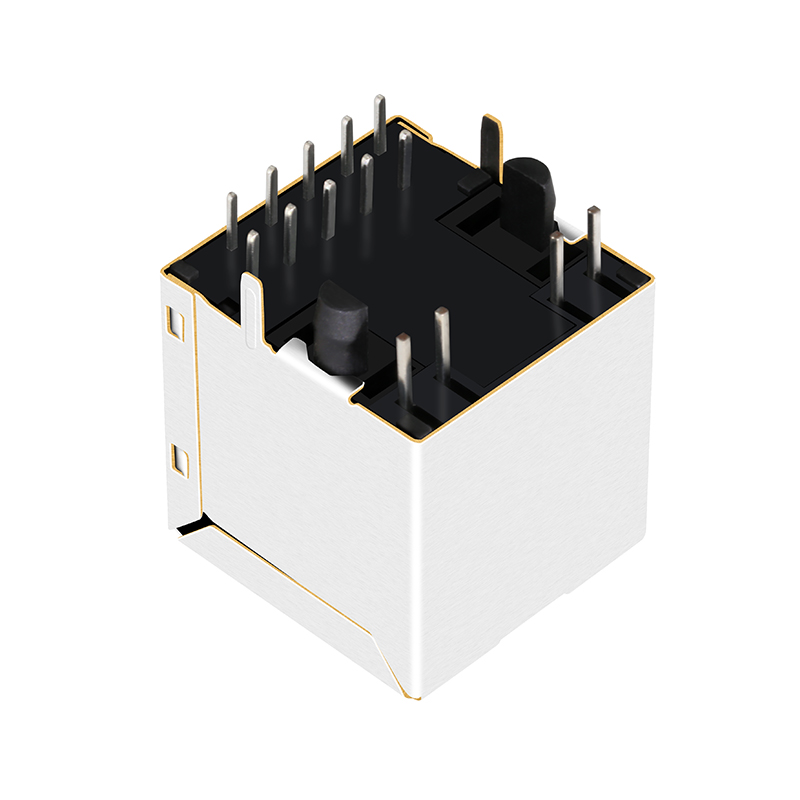

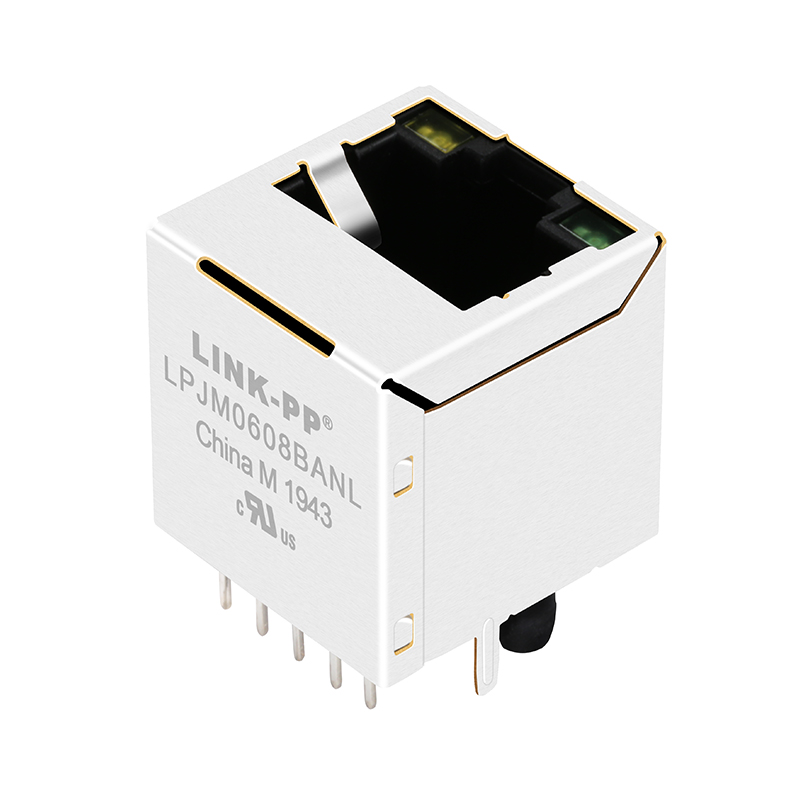

High-performance vertical RJ45 connector designed for 2.5G Base-T Ethernet applications, featuring integrated LED indicators and robust mechanical design for reliable networking connectivity.
| Item | RJ45 Female Connector |
| Part Number | LPJM0608BANL |
| Part Status | Active |
| Connector Type | Jack |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) |
| Application-Lan | Ethernet (Non PoE) |
| Number of Ports | 1x1 Port |
| Speed | 2.5g Base-T |
| Latch | Up |
| Cores per Port | 8 |
| Orientation | 180° Angle (Right) |
| PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without |
| LED Option | Green/Yellow |
| PCB Material | FR4 |
| PCB Retaining Post | T POST |
| Operating Temperature | 0℃ TO 70℃ |
| Bst Circuit | Yes |
| AutoMDIX | YES |
| Contact Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT |
As a professional designer and manufacturer in magnetic telecom and networking components, we offer an extensive line of state-of-the-art catalog products as well as custom capabilities. We are a global supplier to OEMs, contract manufacturers, and CEMs, supplying customers in over 200 countries.
With multi-warehouse systems in key areas and continuously increasing inventory, we are committed to being a leading provider of Ethernet RJ45 connectors and LAN transformers worldwide.
