HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
1 / 5
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot

HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot

Send Inquiry

Product Description

Magnetic RJ45 Modular Jack
HR851140A Magnetic RJ45 Modular Jack Female RJ45 Connectors With Shield Boot
Products Description
Item RJ45 Female Connector
Part Number HR851140A
Part Status Active
Connector Type Jack
Number of Positions/Contacts 8p8c (RJ45, Ethernet)
Application-Lan Ethernet(NoN PoE)
Number of Ports 1x1 Port
Speed 10/100 Base-T
Latch Down
Cores per Port 4
Orientation 90° Angle (Right)
PCB Mount Angle SIDE ENTRY
Shield EMI Tabs Without
LED Option Green/Yellow
PCB FR4
PCB Retaining Post T POST
Temperature 0°C TO 70°C
Bst Circuit Yes
AutomDX YES
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Turns Ratio RX/TX 1CT:1CT
Configuration RX/TX T,C

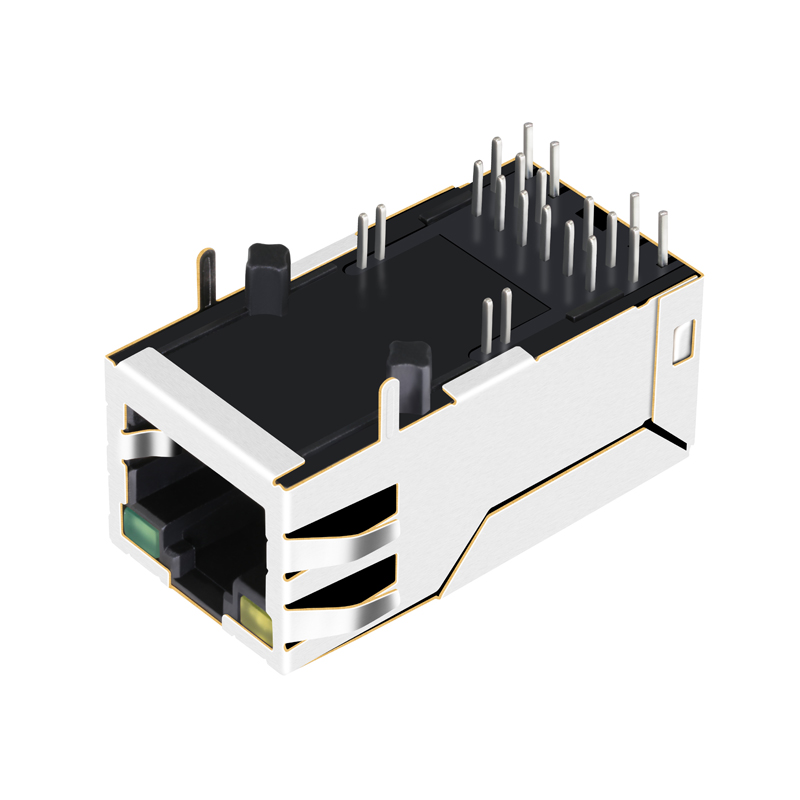

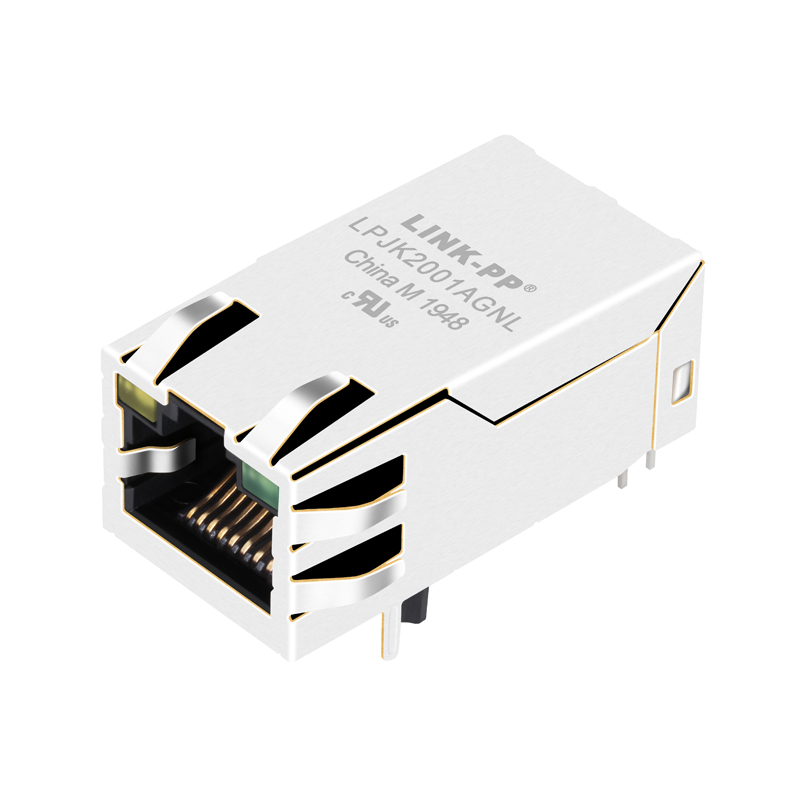

RJ45 Front View RJ45 Side View
RJ45 Detail View 1 RJ45 Detail View 2 RJ45 Detail View 3 RJ45 Detail View 4
Explore Below Products to Get More
Product Categories Overview
Banner Overview
Technical Drawing 1 Technical Drawing 2 Technical Drawing 3 Technical Drawing 4 Technical Drawing 5 Technical Drawing 6
Company Profile
Established in 1997, the professional designer and manufacturer specializes in magnetic telecom and networking components. With an extensive line of state-of-the-art catalog products as well as custom capabilities.
Serving as a global supplier of magnetic telecom and networking components to OEMs, contract manufacturers, and CEMs, we support more than 10,000+ customers across 200 countries. By building multi-warehouse systems in key areas and continuously increasing inventory, we are committed to becoming the world's leading Ethernet RJ45 connector and LAN transformer provider.
Production Facility Quality Management
FAQ
QAre you a factory or trading company?
We are a specialized manufacturer of magnetic telecom and networking components, such as RJ45 connectors, LAN transformers, RJ11 connectors, and SFP modules, etc.
QCan I get a sample before mass production?
Yes, we can offer you free samples to test quality, but you should cover the shipping fee.
QWhat is your delivery time?
Items are ready to ship from stock, or require 15-30 days for mass production.
QWhat after-service can you offer?
We offer a one-year guarantee period along with 24-hour online technical support.
QCan you accept OEM/ODM orders?
Yes, please send an inquiry to us so that we can have a detailed discussion.
QWhat is your advantage?
We possess 19 years of production experience and have partnered with leading global technology companies for many years.
