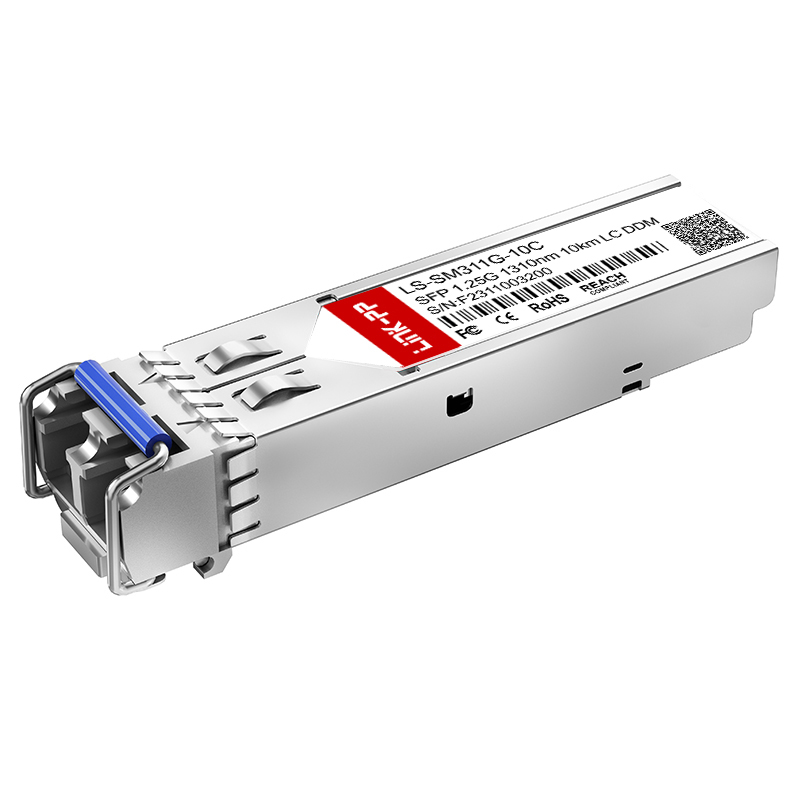

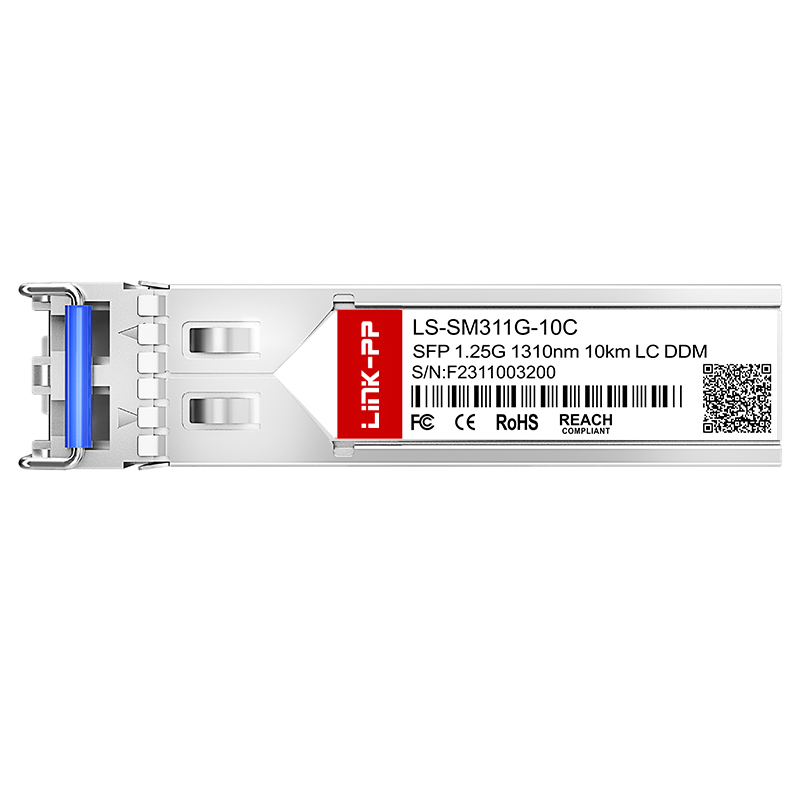

High-performance Single Mode 1G SFP Module, 1310nm wavelength, supporting distances up to 10km. Specifically designed for seamless integration and reliable data transmission.
| Item | 1000BASE SFP |
| Compatible | J4859D HPE Aruba |
| Part Status | Active |
| Form Factor | SFP |
| Max Data Rate | 1.25Gbps |
| Wavelength | 1310nm |
| Max Cable Distance | 10Km |
| Media | SMF |
| Connector | Duplex LC |
| Optical Component | FP/PIN |
| TX Power | -9.5~-3dBm |
| Receiver Sensitivity | <-20dBm |
| Receiver Overload | -3dBm |
| Power Consumption | ≤1W |
| Extinction Ratio | >9dB |
| DDM/DOM | Supported |
| Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
| Protocols | IEEE 802.3ah-2004, IEEE 802.3z, SFF-8472, SFP MSA Compliant |
| Warranty | 5 Years |
Drawing on over 10 years of experience in chips and modules to integrate fast speeds, small size, power savings, and high performance in every module. We provide a full series of optical modules for fixed access, wireless access, carrier Ethernet, wavelength division multiplexing (WDM), and data communication networks.
End-to-end DWDM solutions covering almost all optical devices - from active modules to optical passive devices, including optical amplifiers (EDFA & RFA), Mux & Demux, OPM, ROADM, MCS, OLP and OTDR.
High-speed optical modules ranging from 10G to 800G, providing high-quality optical interconnection solutions to meet the demands of mass data transmission in modern data centers.
High reliability products with mature laser and chip solutions. Includes Dark Fiber, WDM, Radio over Fiber, High Speed, Mid-haul and Back-haul for 4G/5G systems.
Total optical fiber access solutions covered from all-optical or optical copper combined access solutions and products for global communication network constructors.
Optical cable O&M solutions integrating optical line protection systems (OLP) and optical line monitoring systems (OLM) to ensure normal operation of communication lines.
A specialized manufacturer of magnetic telecom and networking components, certified by ISO9001:2000, ROSH, REACH, CE and UL. We own advanced manufacturing facilities and test equipment. Established in 1997, we maintain abundant productive capacity to ensure short delivery times. With the latest optoelectronics technologies, we develop, manufacture, and sell high-speed optical interconnection solutions for cloud computing and ultra-broadband networks globally.
